Installing the SRX110 Services Gateway on a Desk
Follow these guidelines when installing the device on a desk:
•
You can install the SRX110 Services Gateway on a desk, table, or other level surface.
•
The device is shipped with the rubber feet attached. The rubber feet are necessary to
stabilize the device on the desk.
•
You can install the device in a horizontal or vertical position.
•
The vertical position requires the vertical installation kit, which consists of a vertical
installation stand with the rubber feet attached.
NOTE: The desk-mounting kit is not shipped with the device and must be
ordered separately.
To install the device in a horizontal position:
The horizontal position is the standard installation position and does not require the
vertical installation kit.
1. Make sure that the rubber feet are attached to the chassis.
2. Place the device on a desk with the Juniper Networks logo facing up. The logo is
embossed on the top cover.
To install the device in a vertical position:
1. Place the device on a flat and level surface, with the Juniper Networks logo facing up.
The logo is embossed on the top cover.
2. Attach the vertical stand to the right side of the chassis, using the specified screws
as shown in Figure 19 on page 62.

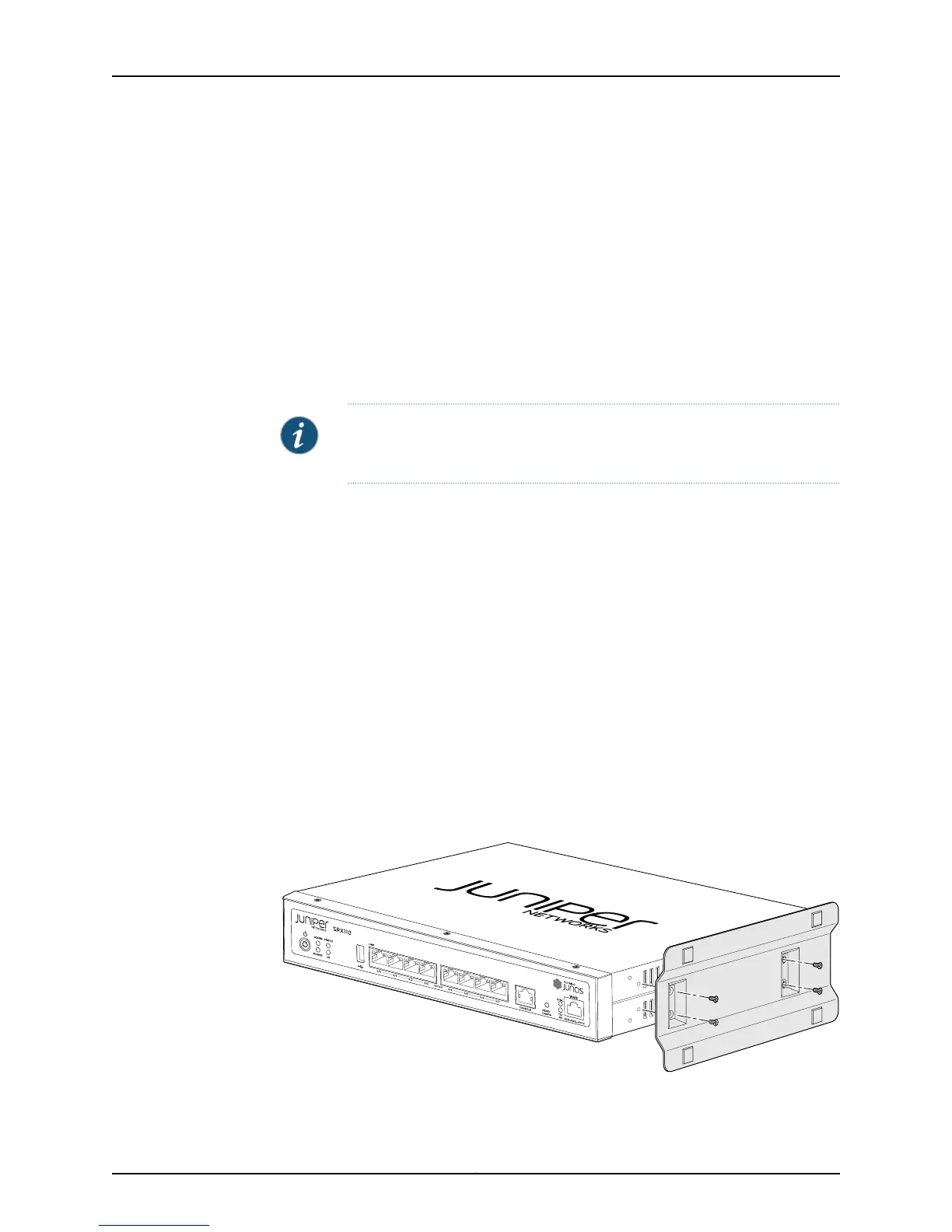

Figure 19: SRX110 Services Gateway Desk Installation — Attaching the
Vertical Stand
Copyright © 2013, Juniper Networks, Inc.62
SRX110 Services Gateway Hardware Guide
