Juniper SRX110 Hardware Guide

Adjusting the Power Supply Adapter Tray for the SRX110 Services Gateway for Rack-Mount
Installation
This topic provides details on the power supply adapter for the SRX110 Services Gateway
and the procedure for adjusting the power supply adapter tray to hold the power supply
adapter.
A 60-watt power supply adapter is provided with the SRX110 Services Gateway.
To accommodate the 60-watt power supply, use the two 420–028535 screws to attach
the adapter stopper brackets at the point on the chassis marked B.
Figure 14 on page 58 shows the adjustments to the power supply adapter tray required
for the 60-watt power supply.

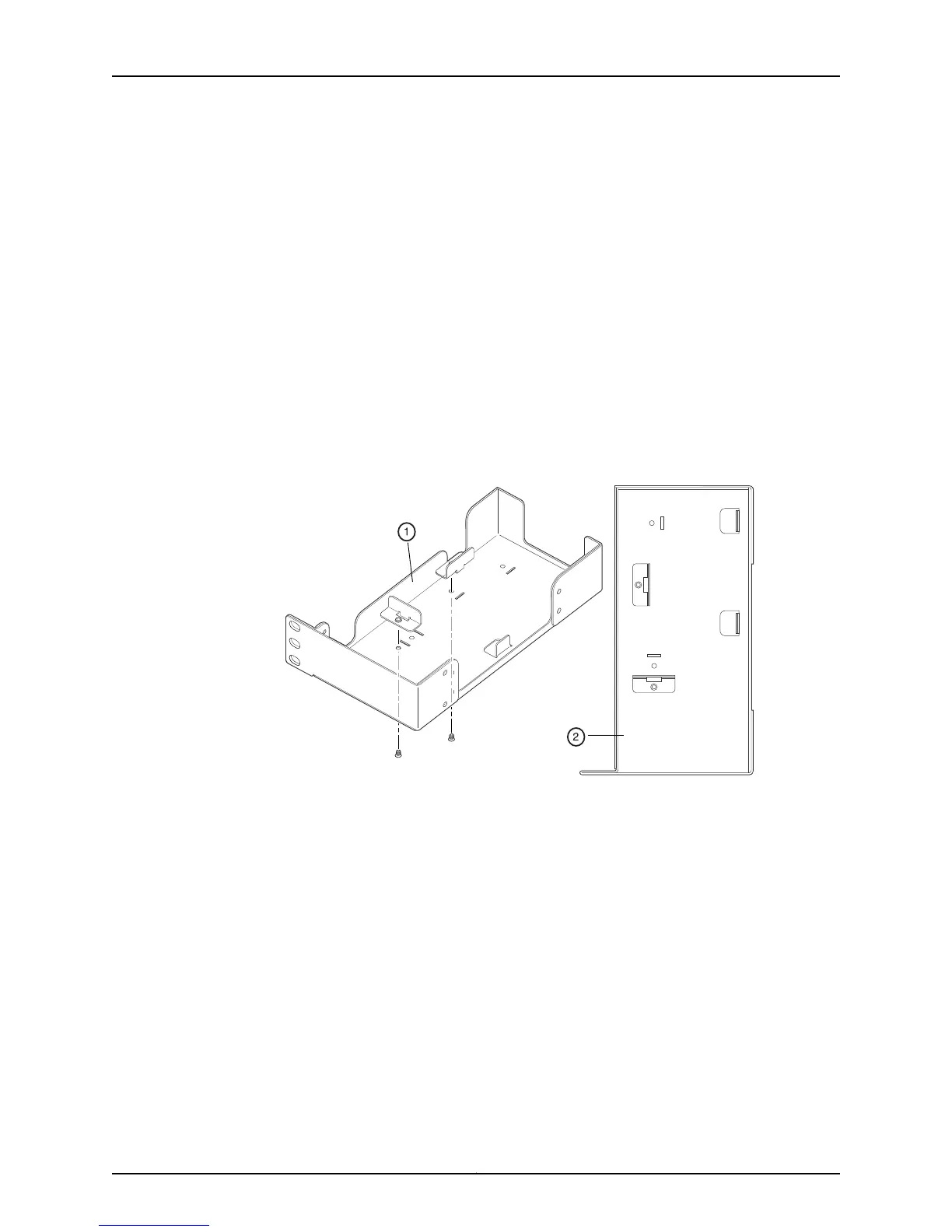

Figure 14: Adjusting the Power Supply Adapter Tray to Accommodate the
60-Watt Power Supply
g033608
1. Locations for the adapter stopper brackets in the power supply adapter tray
2. Fully configured power supply adapter tray
Related
Documentation
Preparing the SRX110 Services Gateway for Rack-Mount, Desk-Mount, and Wall-Mount
Installation on page 53
•
• SRX110 Services Gateway Power Supply on page 16
Installing the SRX110 Services Gateway in a Rack
You can front-mount the SRX110 Services Gateway in a rack. Many types of racks are
acceptable, including 4-post (telco) racks, enclosed cabinets, and open-frame racks.
For more information about the type of rack or cabinet that the SRX110 Services Gateway
can be installed into, see “SRX110 Services Gateway Rack Requirements” on page 41.
Copyright © 2013, Juniper Networks, Inc.58
SRX110 Services Gateway Hardware Guide
