CHAPTER 2
SRX110 Services Gateway Hardware
Components and Specifications
This chapter includes the following topics:
•
SRX110 Services Gateway Specifications on page 7
•
SRX110 Services Gateway Front Panel and Back Panel Views on page 9
•
SRX110 Services Gateway Built-In Interfaces on page 11
•
SRX110 Services Gateway LEDs on page 13
•
SRX110 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 15
•
SRX110 Services Gateway Power Supply on page 16
SRX110 Services Gateway Specifications
The SRX110 Services Gateway chassis is a rigid sheet metal structure of 1 rack unit (U)
height, which houses all the other hardware components.
Figure 1 on page 7 shows the SRX110 Services Gateway with 3G and VDSL2
(VDSL/ADSL-POTS).

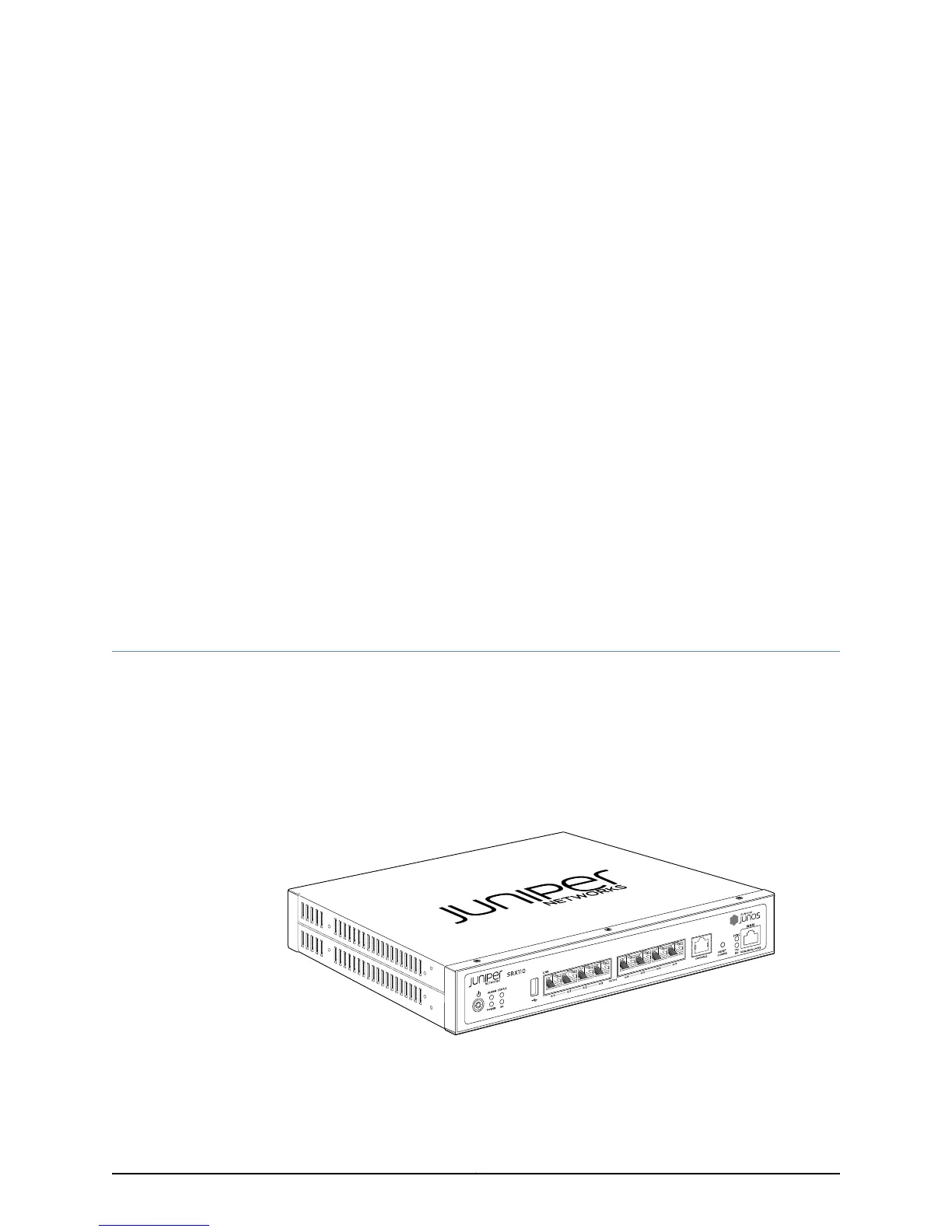

Figure 1: SRX110 Services Gateway with 3G and VDSL2
(VDSL/ADSL-POTS)
Figure 2 on page 8 shows the SRX110 Services Gateway with 3G and VDSL2
(VDSL/ADSL-ISDN).
7Copyright © 2013, Juniper Networks, Inc.
