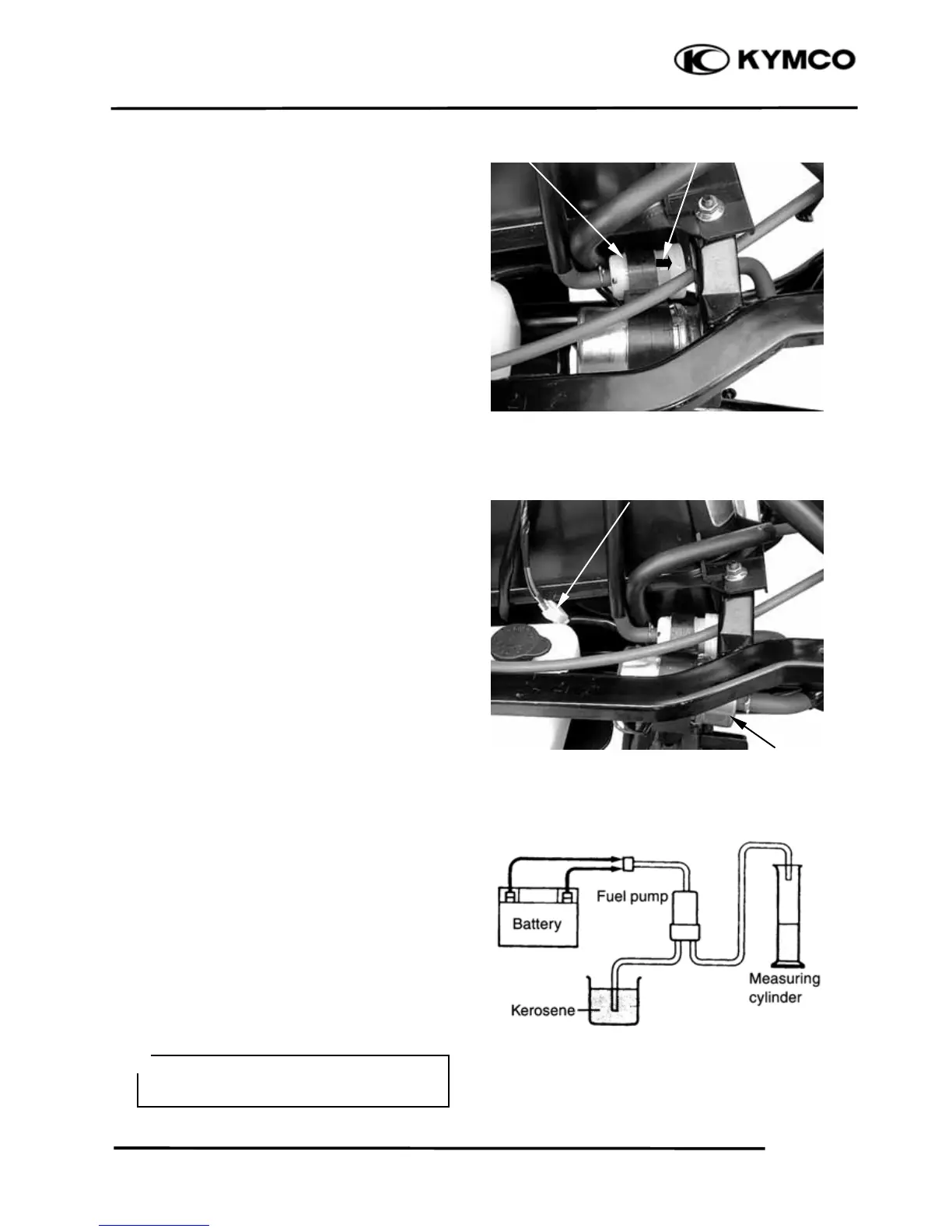

5. FUEL SYSTEM/FUEL PUMP

/FUEL TANK/CARBURETOR

5-16

XCITING 500

FUEL FILTER/FUEL PUMP

FUEL FILTER INSPECTION

Visually check the fuel filter. If

accumulation of sediment or clogging is

found, replace the fuel filter with a new one.

Install the fuel filter with the arrow mark

facing forward.

FUEL PUMP INSPECTION

Measure resistance between the terminals of

fuel pump lead wire coupler.

If the measurement is out of specification

replace the fuel pump.

Fuel pump resistance: 1－2.5Ω

As shown in the right illustration, connect

the battery to the fuel pump and measure the

pump discharge amount per minute using

kerosene.

Battery (+) to Black/Red

Battery (-) to Green

Discharge amount per minute:

370 ml (12.6 US oz, 13 lmp oz)

If the measurement is less than the standard

value, replace the fuel pump with a new one.

Fuel Filter Arrow Mark

Fuel Pump Couple

Fuel Pump

Do not use gasoline in this test as its is

highly combustible.

＊
