3. INSPECTION/ADJUSTMENT

3-9

XCITING 500

VALVE CLEARANCE

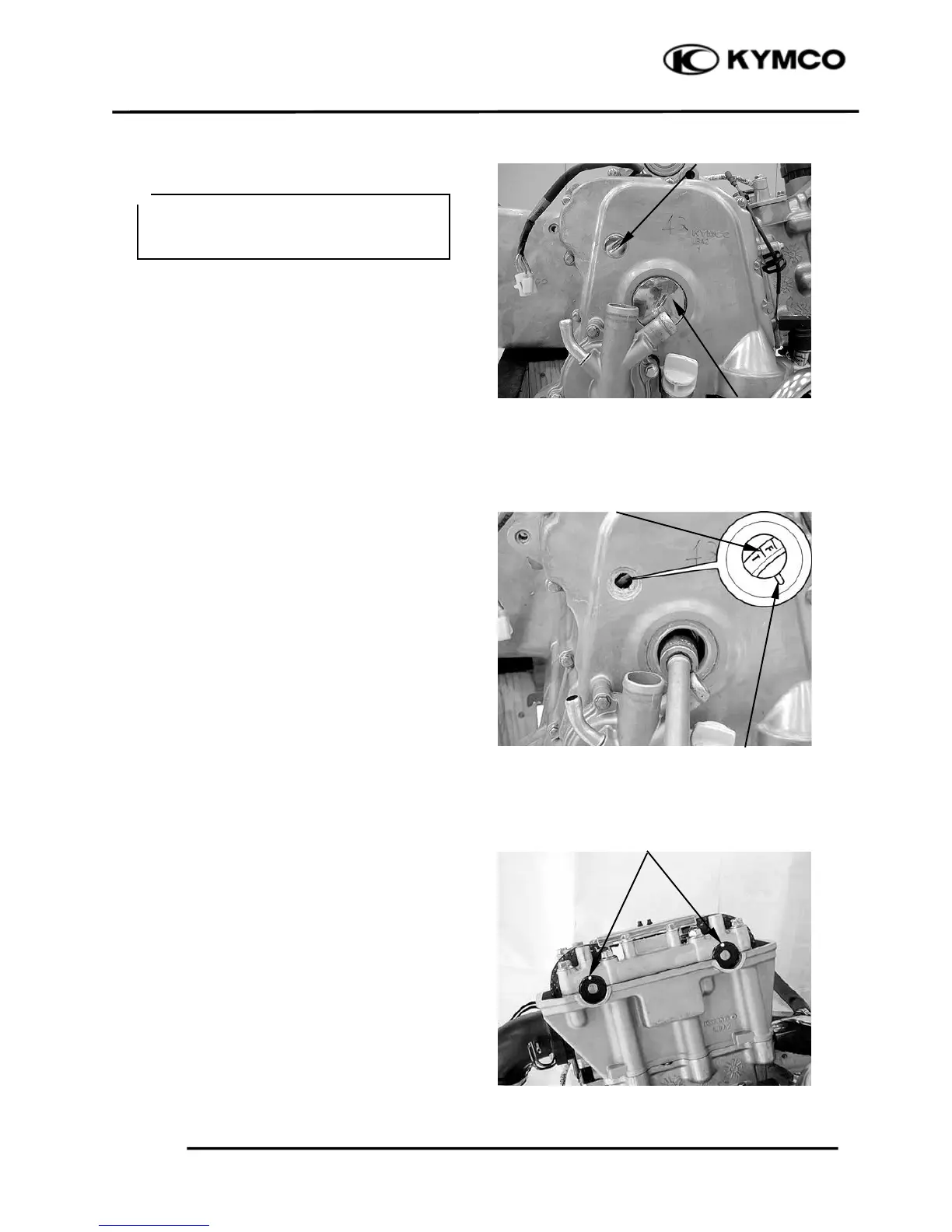

Remove the floorboard (page 2-6).

Remove the cylinder head cover (page 8-5).

Remove the timing hole cap and O-ring.

Remove the crankshaft hole cap and O-ring.

Turn the crankshaft clockwise and align the

“T” mark on the flywheel with the index

mark on the right crankcase cover.

The punch marks on the camshaft should face

upward as shown.

If the punch marks on the camshaft are facing

downward, turn the crankshaft clockwise one

full turn (360°) and the punch marks are

facing upward.

Crankshaft Hole Cap/O-ring

Timing Hole Cap/ring

Punch Marks

Inspect and adjust the valve clearance

while the engine is cold (Below

35°C/95°F).

＊

Index Mark

“T” Mark
