17. BATTERY/CHARGING SYSTEM

17-7

XCITING 500

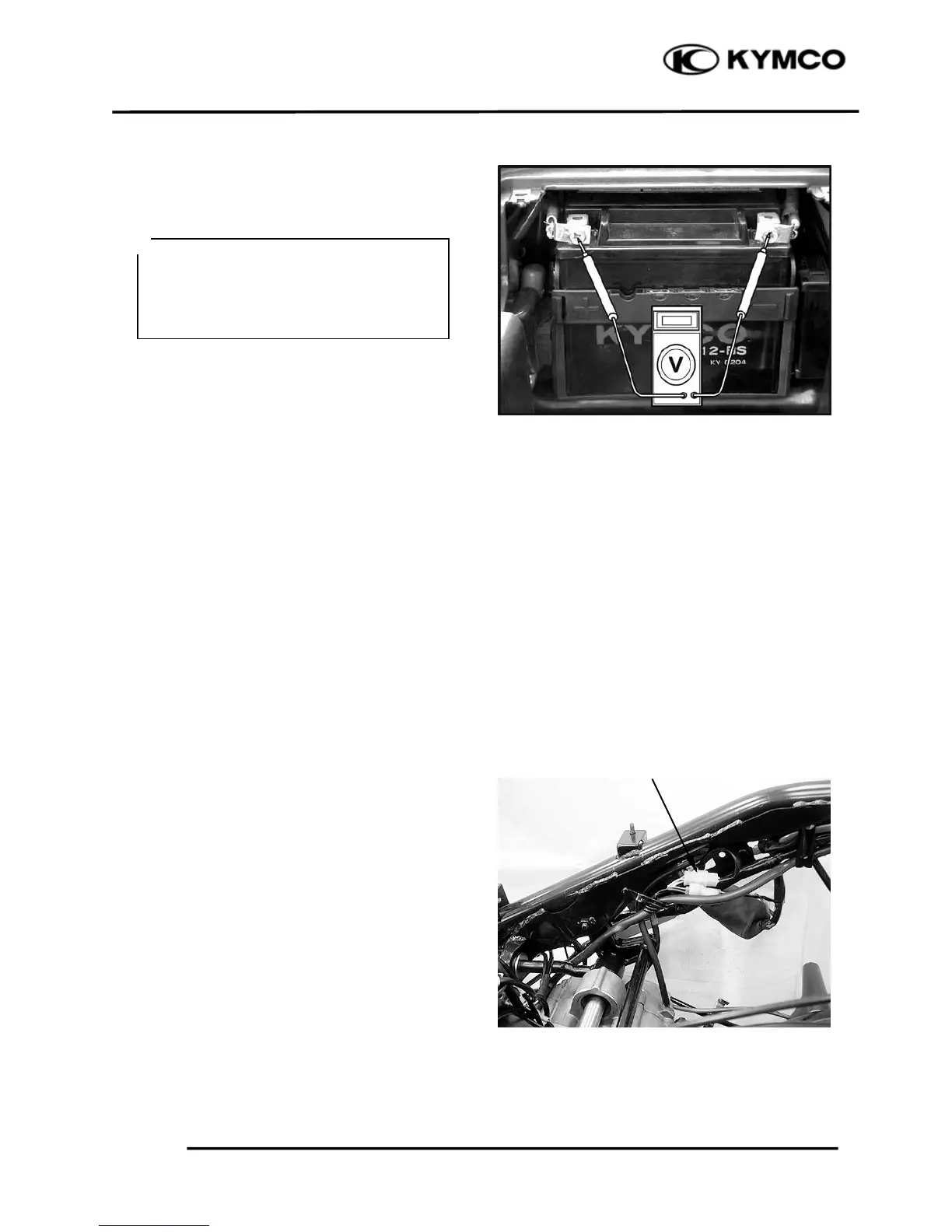

CHARGING VOLTAGE INSPECTION

Be sure that the battery is in good condition

before performing this test.

Start the engine and warm it up to the

operating temperature; stop the engine.

Connect the multimeter between the positive

and negative terminals of the battery.

To prevent short, make absolutely certain

which are the positive and negative terminals

or cable.

With the headlight on and turned to the high

beam position, restart the engine.

Measure the voltage on the multimeter when

the engine runs at 5000 min-1 (rpm).

Standard:

Measured battery voltage (page 17-5) <

Measure charging voltage (see above)

<15.5 V

ALTERNATOR CHARGING COIL

INSPECTION

Remove the luggage box (page 2-3).

Disconnect the alternator connector.

Do not disconnect the battery or any

cable in the charging system without first

switching off the ignition switch. Failure

to follow this precaution can damage the

tester or electrical components.

＊

Alternator Connecto
