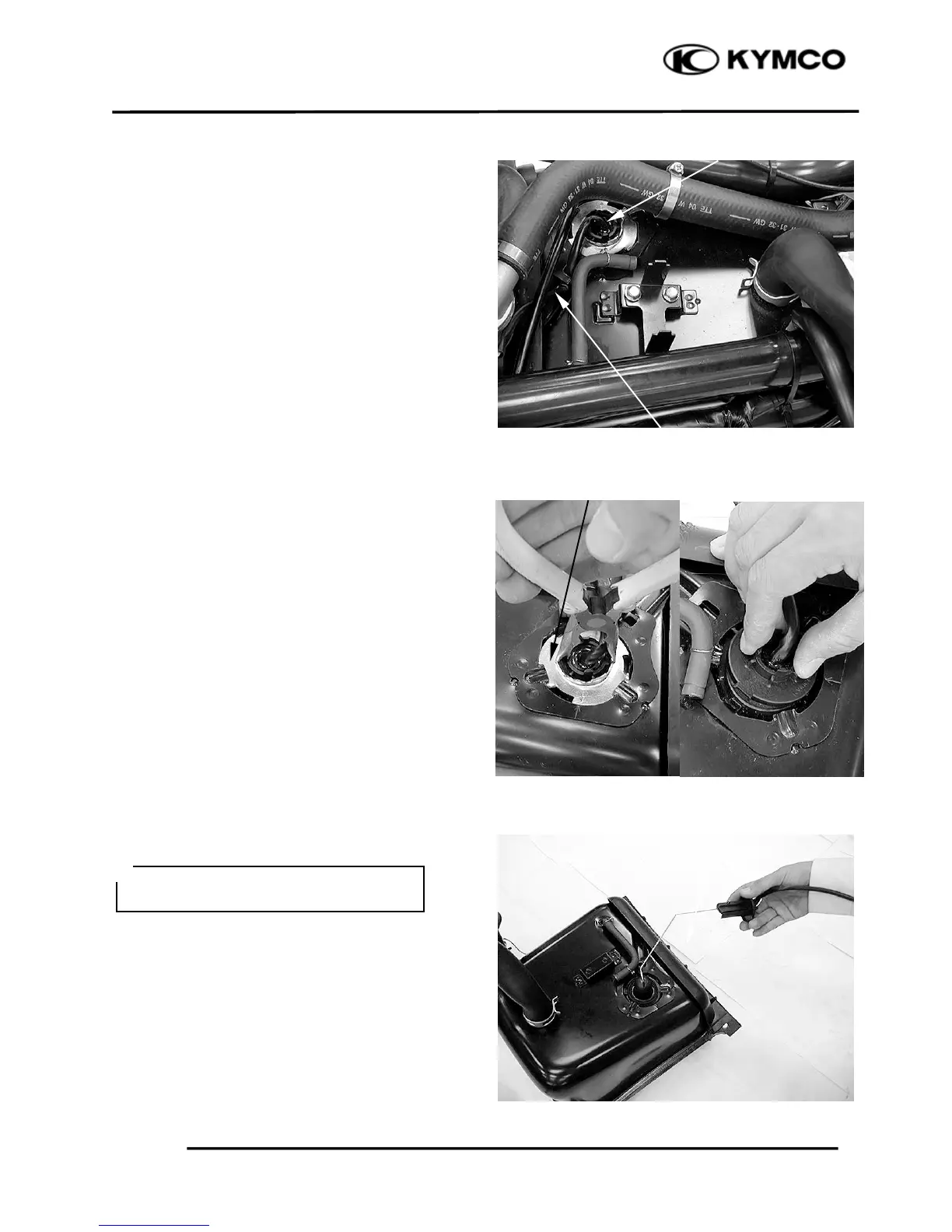

20. LIGHTS/METERS/SWITCHES
20-13
XCITING 500
FUEL UNIT
REMOVAL
Remove the floorboard (page 2-6).
Disconnect the fuel unit connector.
Turn the fuel unit retainer counterclockwise and
remove it.
Remove the fuel unit.
Retaine
r
Fuel Uni
t
Be careful not to bend or damage the
fuel unit float arm.
＊
Fuel Unit Wire
