KYMCO XCITING 500 Service Manual

16. BRAKE SYSTEM
16-18
XCITING 500
REAR MASTER CYLINDER
REMOVAL
When removing the brake hose bolt, cover
the end of the hose to prevent contamination.
Secure the hose to prevent fluid from leaking
out.

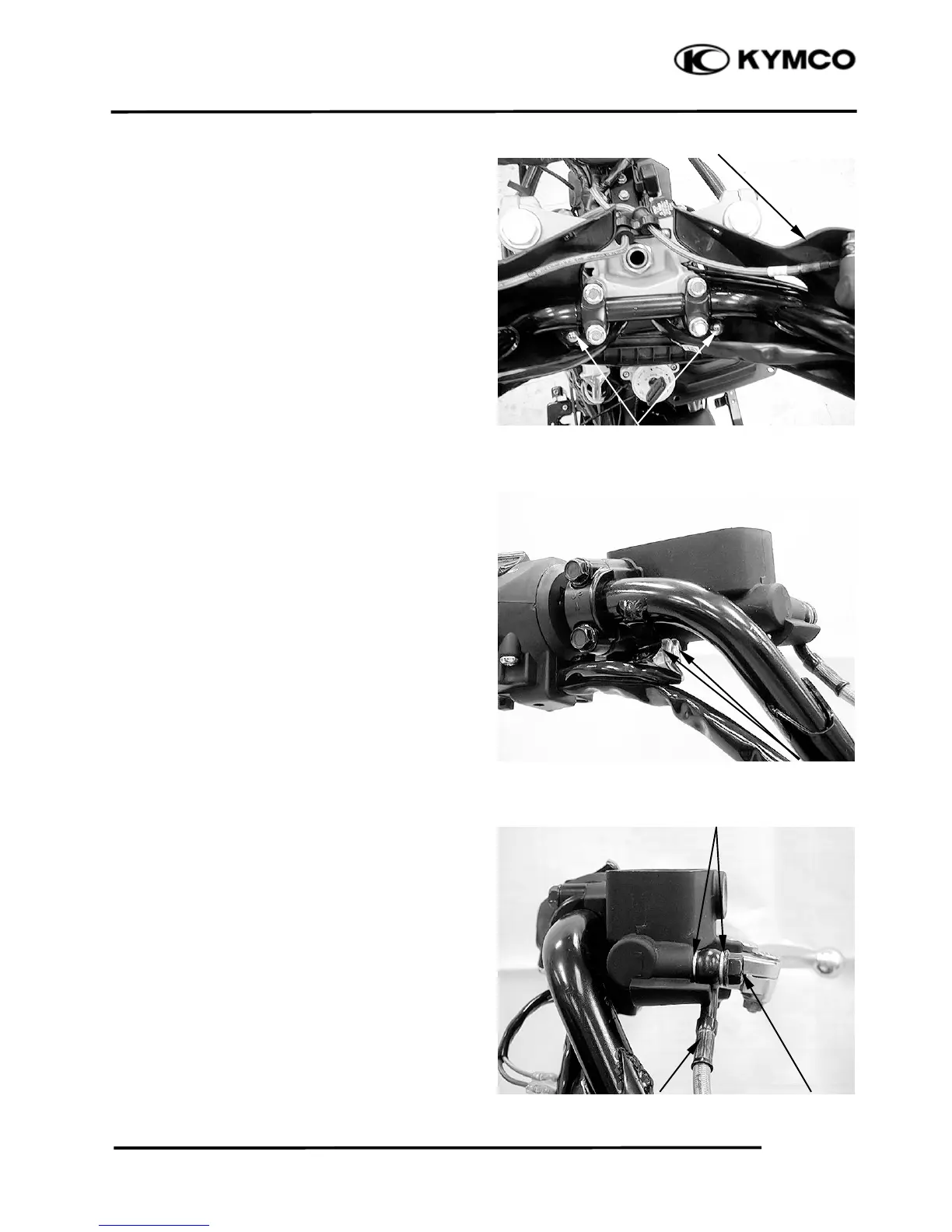

Remove the upper handlebar cover (page 2-
5).
Drain the combination brake hydraulic
system (page 16-5).
Remove the two screws and lower handlebar
cover.
Disconnect the brake light switch connectors
from master cylinder.
Remove the brake hose oil bolt, sealing
washers and brake hose eyelet.
Screws
Lower Handlebar Cove
r
Brake Hose Bol
t
Sealing Washers
Brake Light Switch Connectors

KYMCO XCITING 500 Specifications

General

Displacement	499 cc
Cooling System	Liquid-cooled
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brake	Dual disc
Rear Brake	Single disc
Seat Height	800 mm
Tire (Front)	120/70-15
Tire (Rear)	150/70-14
Engine Type	4-stroke, single-cylinder
Fuel System	Electronic Fuel Injection
Fuel Capacity	12.8 L
Length x Width x Height	2250 x 800 x 1450 mm
