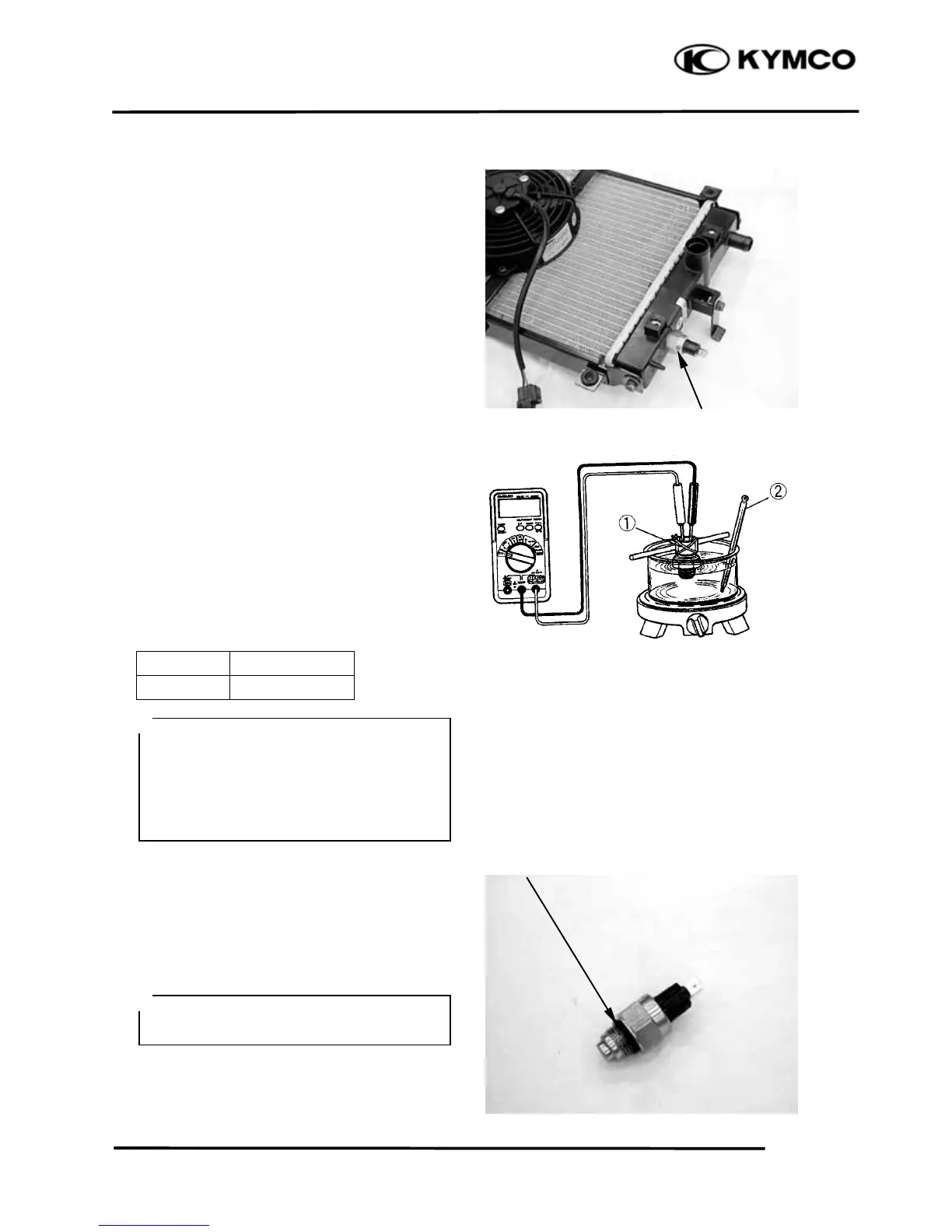

6. COOLING SYSTEM

6-16

XCITING 500

FAN MOTOR SWITCH

REMOVAL

Disconnect the fan motor switch connector

(page 6-14).

Remove the fan motor switch.

INSPECTION

Place the fan motor switch in oil contained

in a pan as shown and raise the oil

temperature gradually to check for the

temperature at which the switch starts to

operate.

If the switch operating temperature is not

within the specified range, replace the

switch with a new one.

OFF→ON Over 88−92°C

ON→OFF Lower 88−92°C

INSTALLATION

Fit the O-ring.

Tighten the cooling fan motor switch to

specified torque.

Torque: 17 N•m (1.8 kgf•m, 13 lbf•ft)

Fan Motor Wire

O-ring

● Handle the cooling fan motor switch

carefully as it is vulnerable to impact.

● Do not allow the cooling fan motor

switch Îand the thermometer Ïto

come in contact with the bottom of the

pan.

＊

● Replace the O-ring a new one.

● Do not coat grease to the O-ring.

＊
