KYMCO XCITING 500 Service Manual

16. BRAKE SYSTEM
16-31
XCITING 500

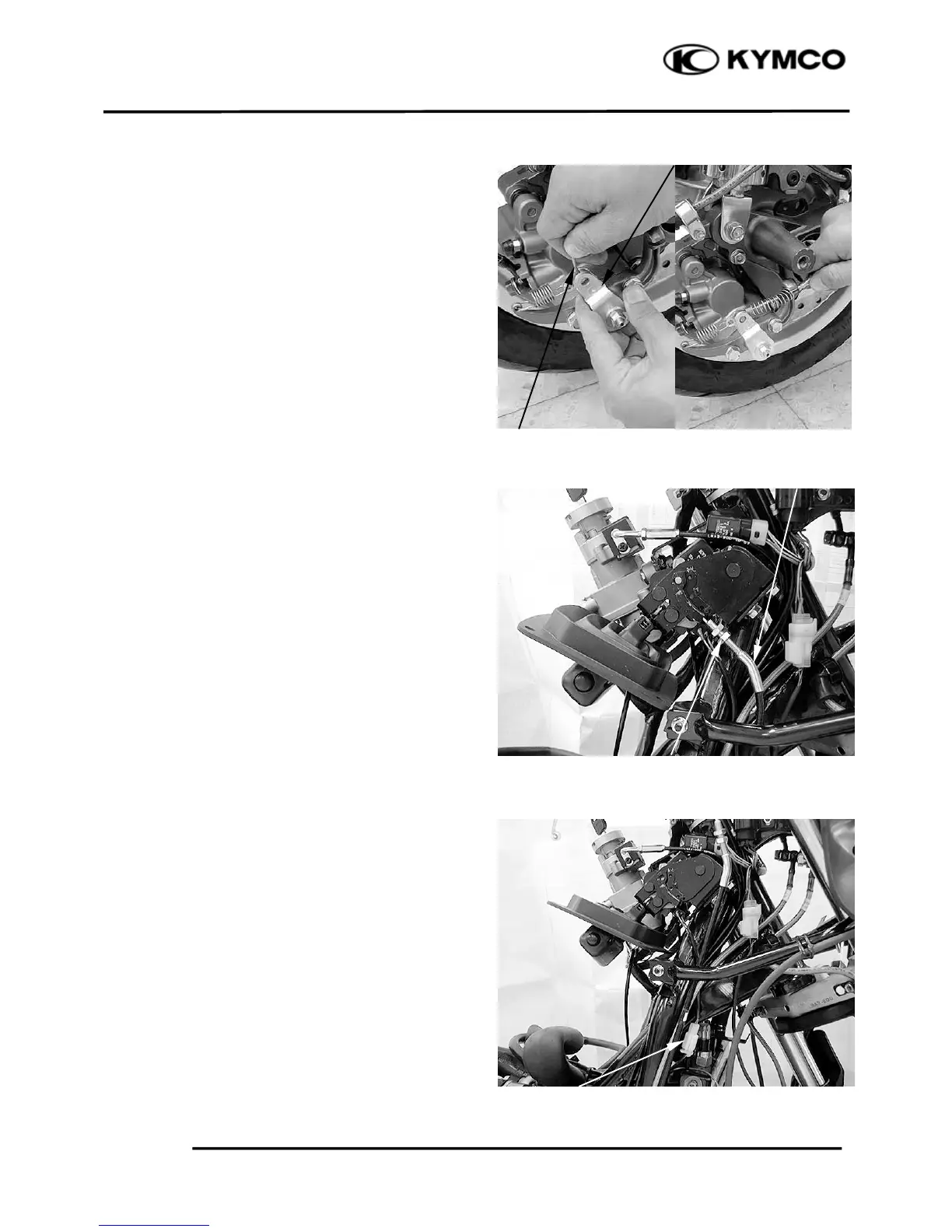

Connect the parking brake cable.
Adjust the parking brake (page 3- 21).
PARKING BRAKE LEVER LINK
REMOVAL
Remove the inner cover (page 2-14).
Loosen the lock nut and disconnect the
parking brake cable from the parking braking
brake lever link.
Disconnect the parking brake switch
connector.
Ar
m
Brake Cable
Parking Brake Switch Connecto
r
Lock Nu
t
Brake Cable
