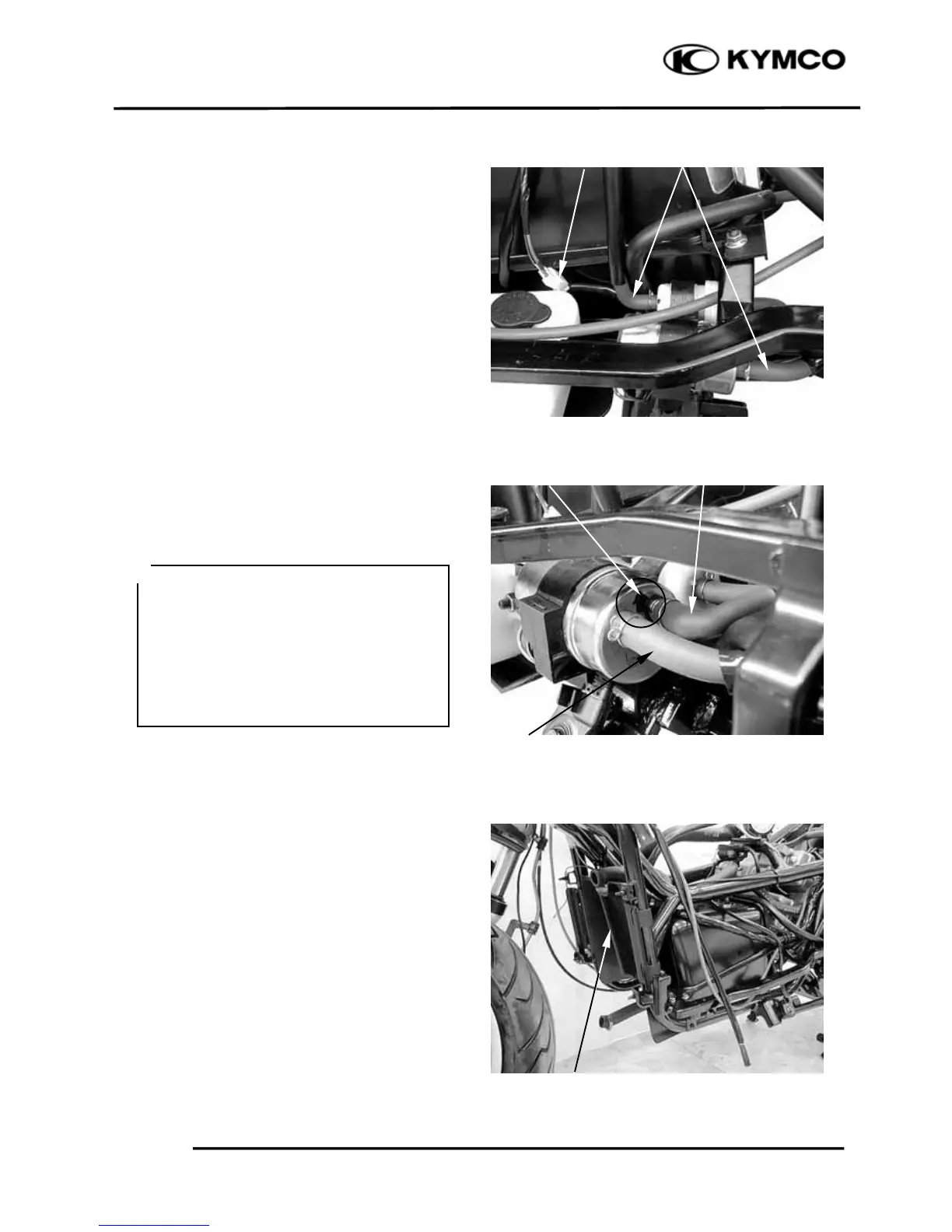

5. FUEL SYSTEM /FUEL PUMP

/FUEL TANK/CARBURETOR

5-17

XCITING 500

REMOVAL

Remove the floorboard (page 2-6)

Disconnect the fuel hoses.

Disconnect the fuel pump connector.

Remove the fuel pump and filter.

INSTALLATION

Installation is in the reverse order of

removal.

FUEL TANK

REMOVAL

Remove the floorboard (page

2-6

Remove the inner cover (page 2-14).

Remove the front lower cover (page 2-15).

Remove the fuel pump and fuel filter (page

5-17).

Remove the front heat insulation cover.

Heat Insulation Cove

“Arrow” Mark Inlet Duc

Outlet Duc

Fuel Pum

Connector Fuel Hoses

● Install the fuel pump with the arrow

mark facing up.

● Connect the fuel inlet hose between the

inlet duct of the fuel pump and fuel

filter.

● Connect the fuel outlet hose between

the outlet duct of the fuel pump and

carburetor.

＊
