KYMCO XCITING 500 Service Manual

20. LIGHTS/METERS/SWITCHES
20-8
XCITING 500
HANDLEBAR SWITCH
INSPECTION
Remove the front cover (page 2-11).

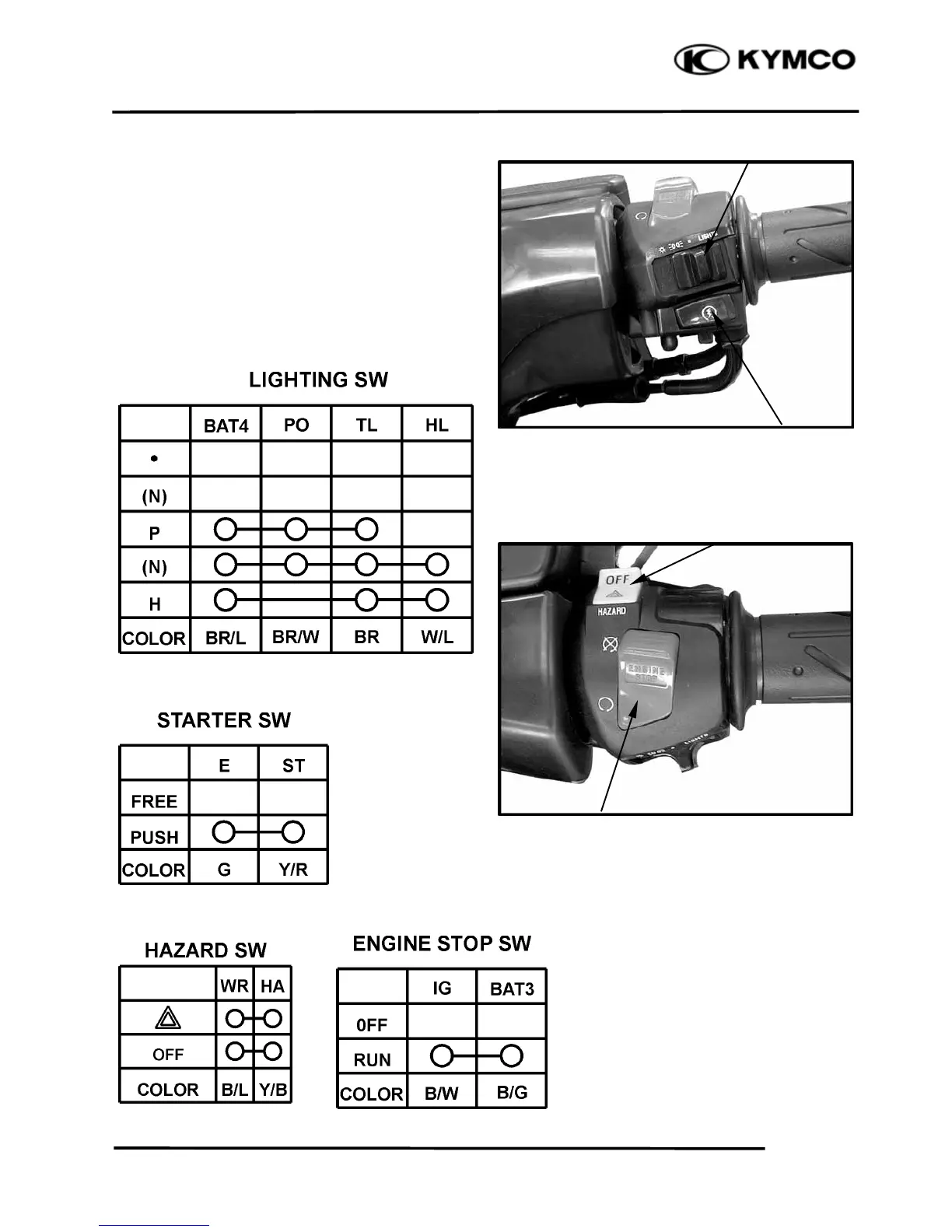

Right handlebar switch
Disconnect the right handlebar switch connector
and check for continuity at switch side connector
terminals.
Continuity should exist between the color code
wires as follows:
Light Switch
Starter Switch
Hazard Switch
Engine Stop Switch

KYMCO XCITING 500 Specifications

General

Displacement	499 cc
Cooling System	Liquid-cooled
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brake	Dual disc
Rear Brake	Single disc
Seat Height	800 mm
Tire (Front)	120/70-15
Tire (Rear)	150/70-14
Engine Type	4-stroke, single-cylinder
Fuel System	Electronic Fuel Injection
Fuel Capacity	12.8 L
Length x Width x Height	2250 x 800 x 1450 mm
