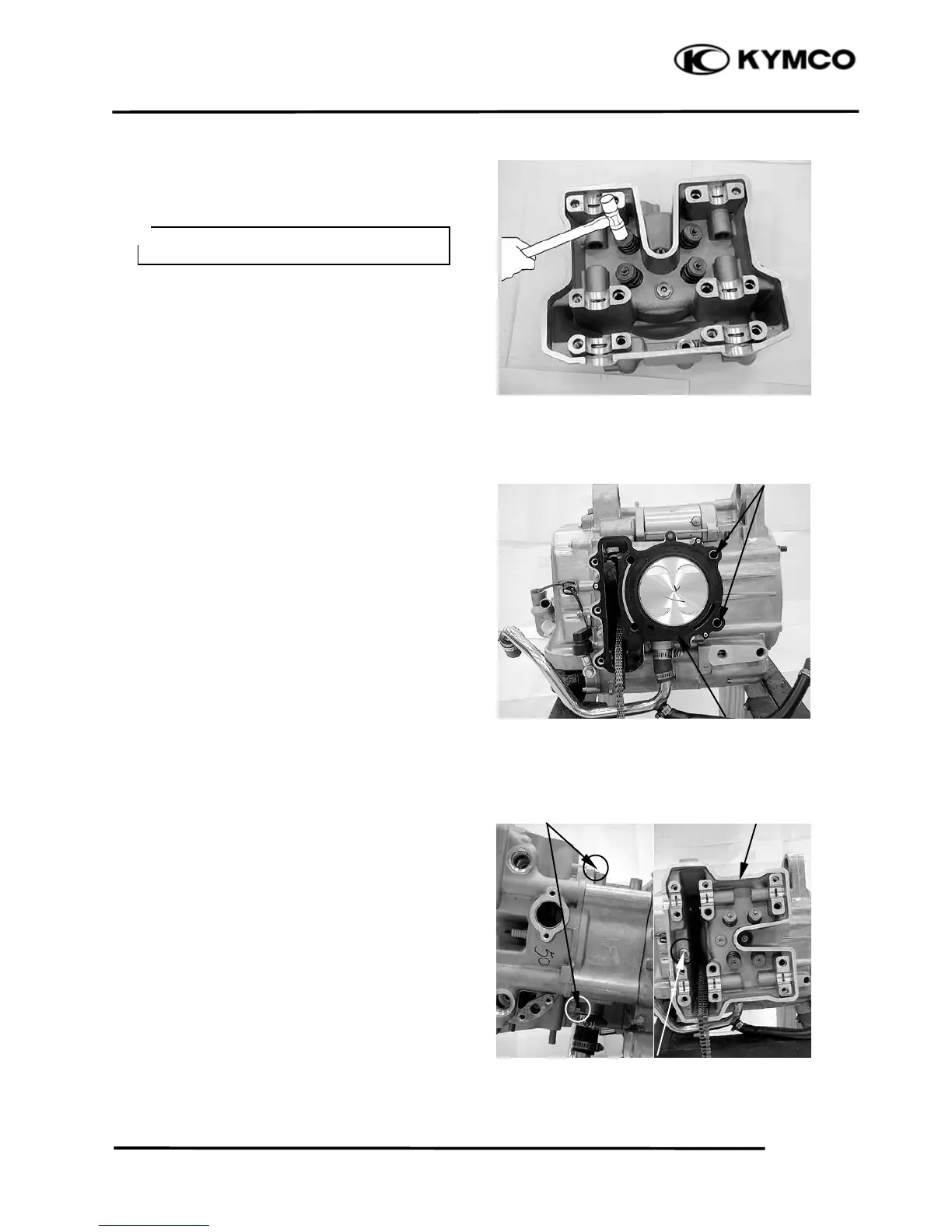

8. CYLINDER HEAD/VALVES

8-16

XCITING 500

Tap the valve stems gently with a plastic

hammer for 2～3 times to firmly seat the

cotters.

CYLINDER HEAD

INSTALLATION

Install the dowel pins and new cylinder head

gasket as shown.

Install the cylinder head.

Apply engine oil to the cylinder head bolt (9)

threads.

Install the two cylinder bolts and cylinder

head bolt (9) but do not tighten them.

Be careful not to damage the valves.

＊

Gasket

Dowel Pins

Cylinder Head Bolt (9)

Cylinder Bolts Cylinder Head
