KYMCO XCITING 500 Service Manual

20. LIGHTS/METERS/SWITCHES
20-15
XCITING 500

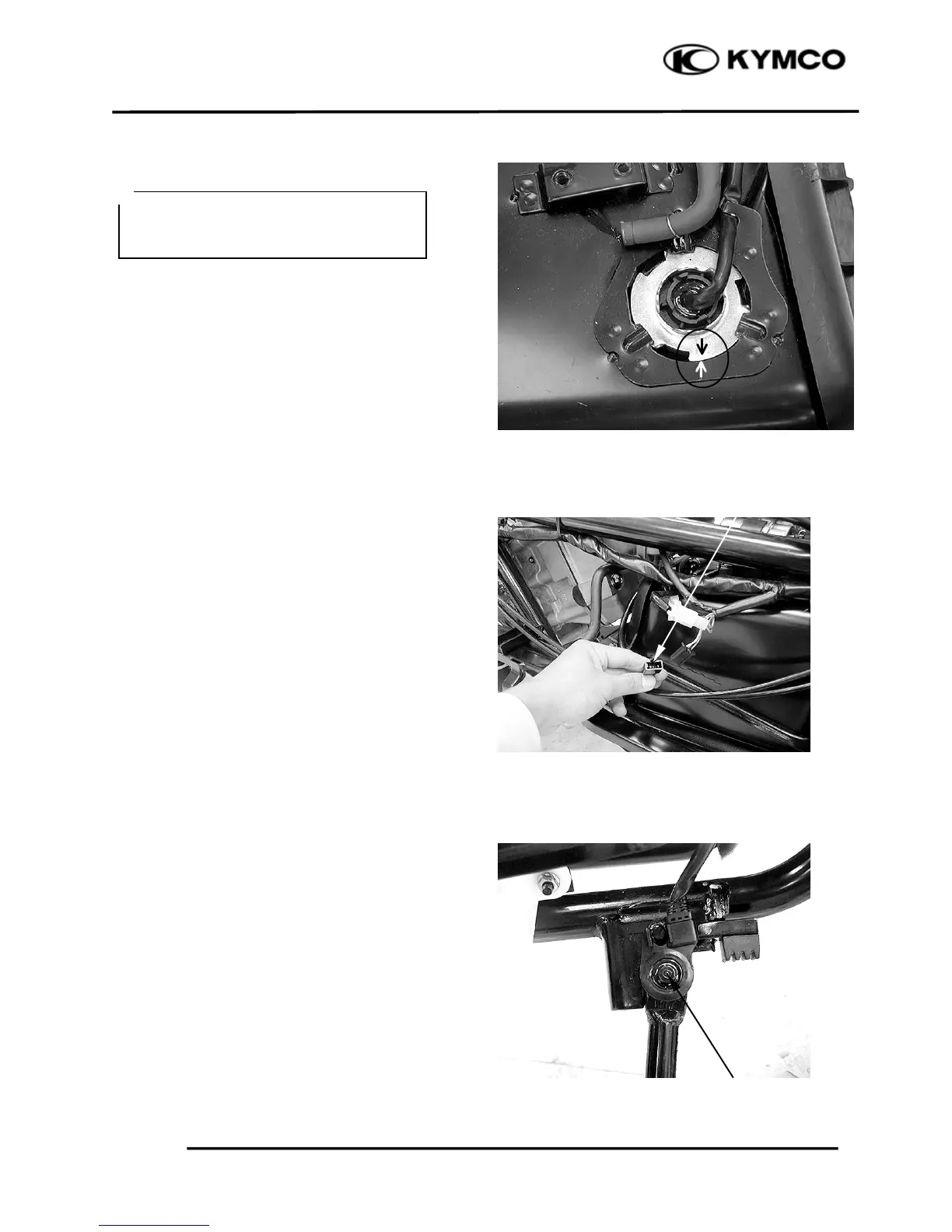

Install the fuel unit retainer.
SIDE STAND SWITCH
INSPECTION
Remove the left floor skirt (page 2-5).
Disconnect the side stand switch connector.
There should be continuity between the
Yellow/Green and Green with the side stand
retracted.
There should be continuity between the
Yellow/Black and Green with the side stand
applied.
REMOVAL
Remove the left floor skirt (page 2-5).
Disconnect the side stand switch connector.
Remove the bolt and side stand switch from the
side stand.
Align the arrow mark on the fuel unit
retainer with the arrow mark on the fuel
tank.
＊
Bol
t
Luggage Box Light Connecto
r
Side Stand Switch Connecto
r

KYMCO XCITING 500 Specifications

General

Displacement	499 cc
Cooling System	Liquid-cooled
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shocks
Front Brake	Dual disc
Rear Brake	Single disc
Seat Height	800 mm
Tire (Front)	120/70-15
Tire (Rear)	150/70-14
Engine Type	4-stroke, single-cylinder
Fuel System	Electronic Fuel Injection
Fuel Capacity	12.8 L
Length x Width x Height	2250 x 800 x 1450 mm
