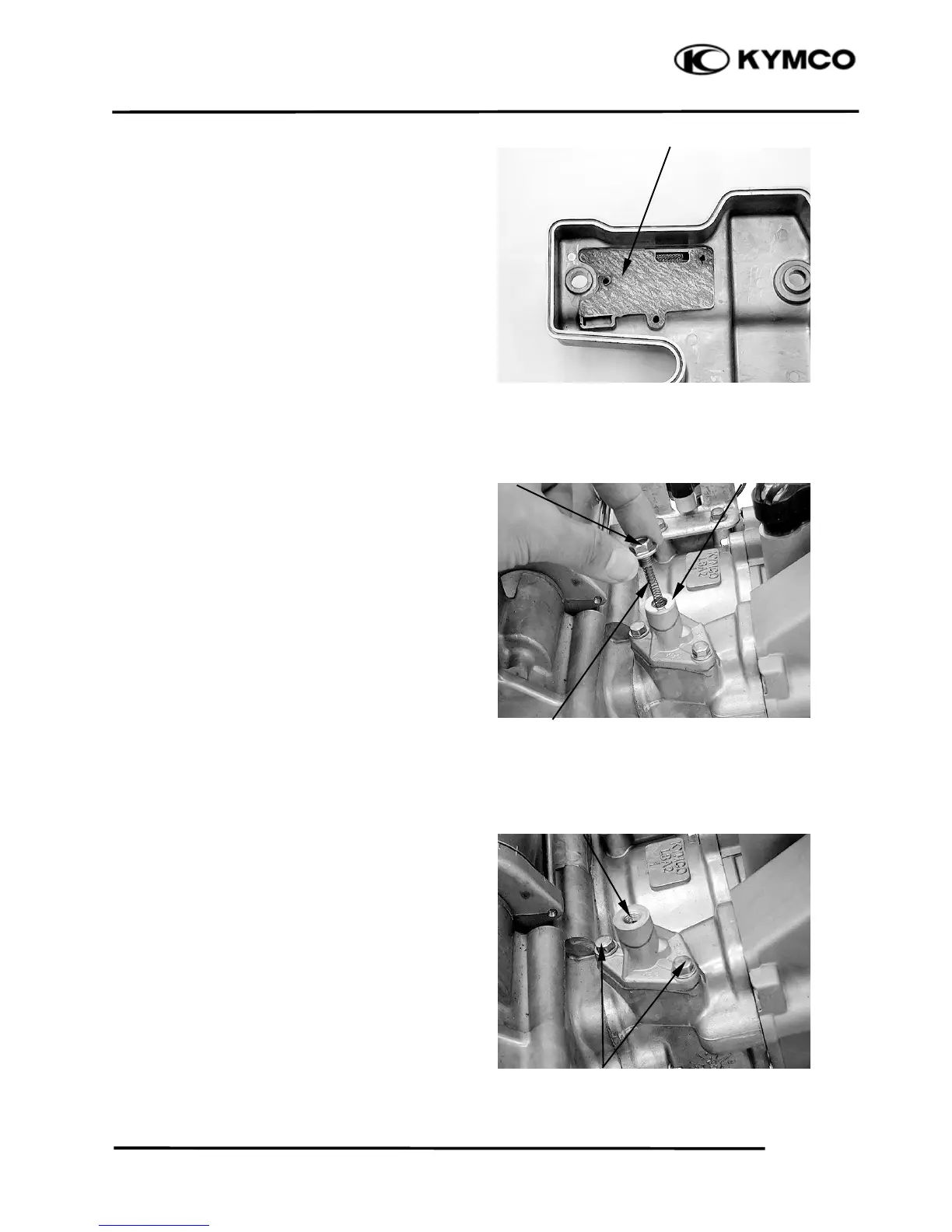

8. CYLINDER HEAD/VALVES

8-6

XCITING 500

Remove the gasket.

ASSEMBLY

Assembly is in the reverse order of

disassembly.

Torque:

Breather separator bolt:

13 N•m (1.3 kgf•m, 9 lbf•ft)

CAMSHAFT REMOVAL

Remove the cylinder head cover (page 8-5).

Turn the crankshaft clockwise and align the

“T” mark on the flywheel with the index

mark on the right crankcase cover (page 3-9).

Remove the cam chain tensioner lifter sealing

bolt, spring and sealing washer.

Remove the two bolts, cam chain tensioner

and gasket.

Gaske

Bolt Washe

Spring

Bolts

Cam Chain Tensioner/Gaske
