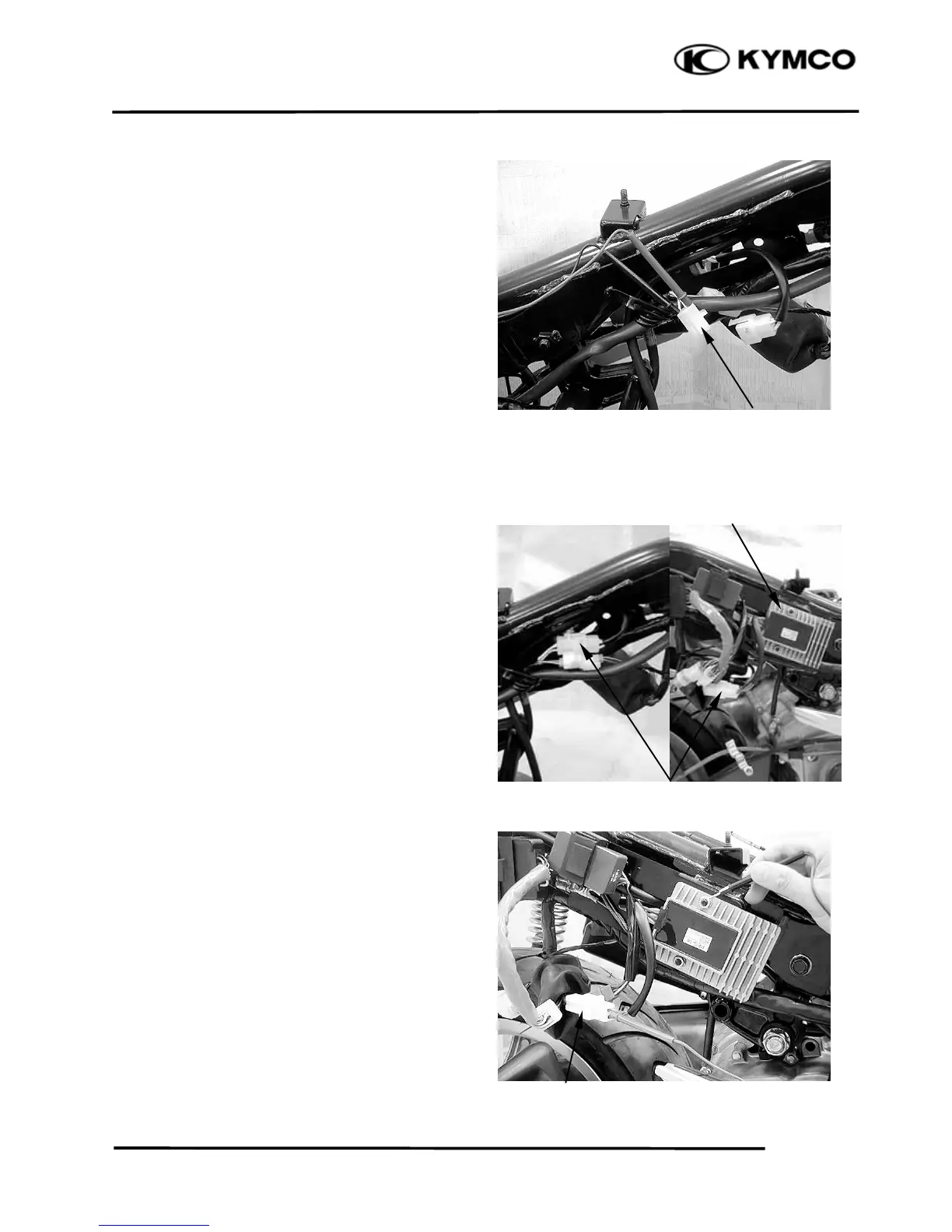

17. BATTERY/CHARGING SYSTEM

17-8

XCITING 500

Measure the resistance between each Yellow

wire terminals.

Standard: 0.1－0.5 Ω (20ºC/68ºF)

Check for continuity between each Yellow

wire terminal of the alternator side connector

and ground.

There should be continuity.

Replace the alternator stator if resistance is

out of specification, or if any wire has

continuity to ground.

Refer to section 12 for alternator stator

replacement.

REGULATOR/RECTIFIER

WIRE HARNESS INSPECTION

Remove the luggage box (page 2-3).

Disconnect the regulator/rectifier connectors.

Check the connectors for loose contacts of

corroded terminals.

Battery line

Measure the voltage between the Red/White

wire terminal and ground.

There should be battery voltage at all times.

Alternator Connecto

Regulator/Rectifier Connecto

Regulator/Rectifie

Regulator/Rectifier Connecto
