9. CYLINDER/PISTON

9-3

XCITING 500

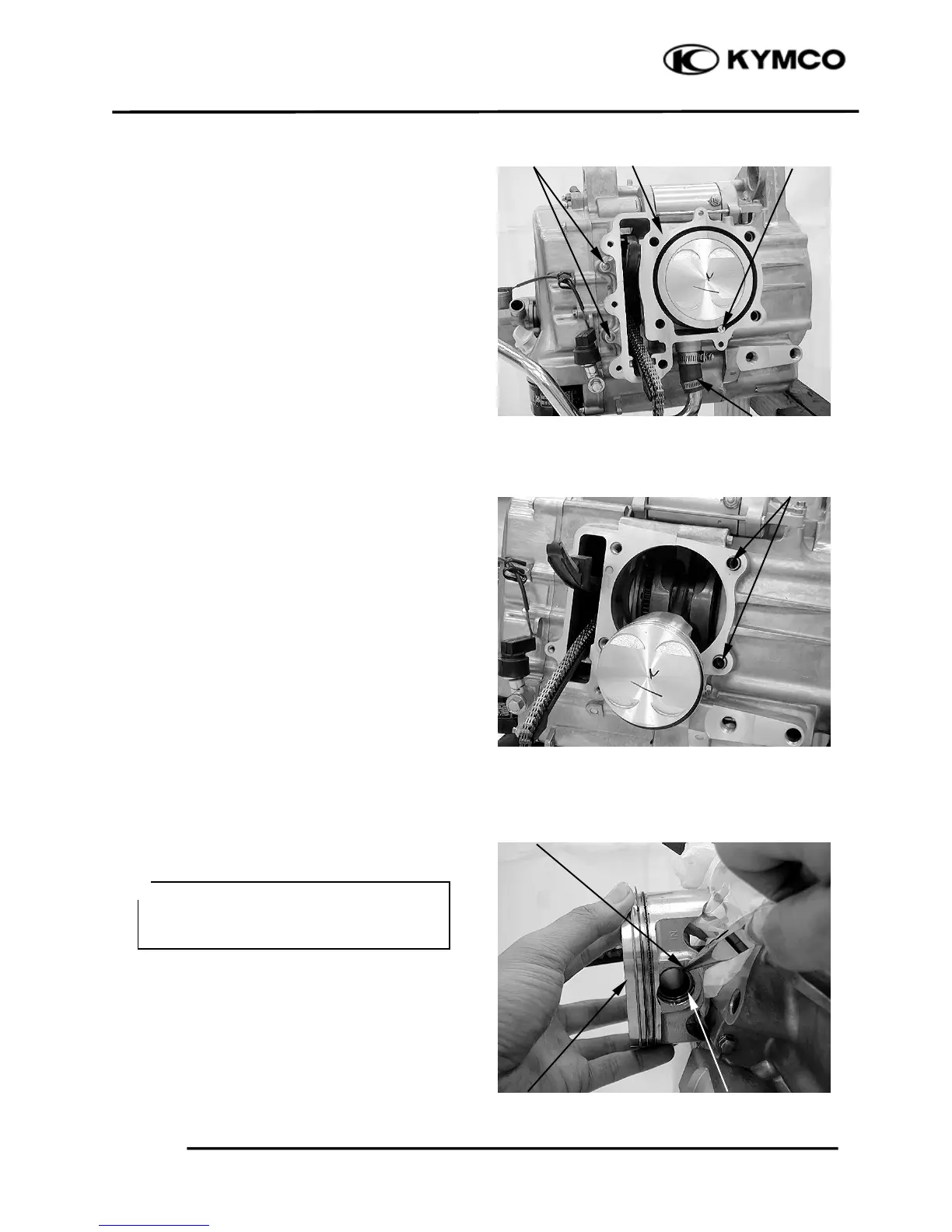

CYLINDER/PISTON

REMOVAL

Remove the cylinder head (page 8-11).

Take the block pin out.

Remove the water hose from the cylinder.

Remove the two cylinder bolts.

Remove the cylinder and gasket.

Remove the dowel pins

Remove the piston pin clip.

Press the piston pin out of the piston and

remove the piston.

Dowel Pins

Water Hose

Bolts Cylinder/Gasket Block Pin

Piston Piston Pin

Piston Pin Clip

Place a clean shop towel in the crankcase

to keep the piston pin clip from falling

into the crankcase.

＊
