8. CYLINDER HEAD/VALVES
8-23
XCITING 500
CYLINDER HEAD COVER
INSTALLATION

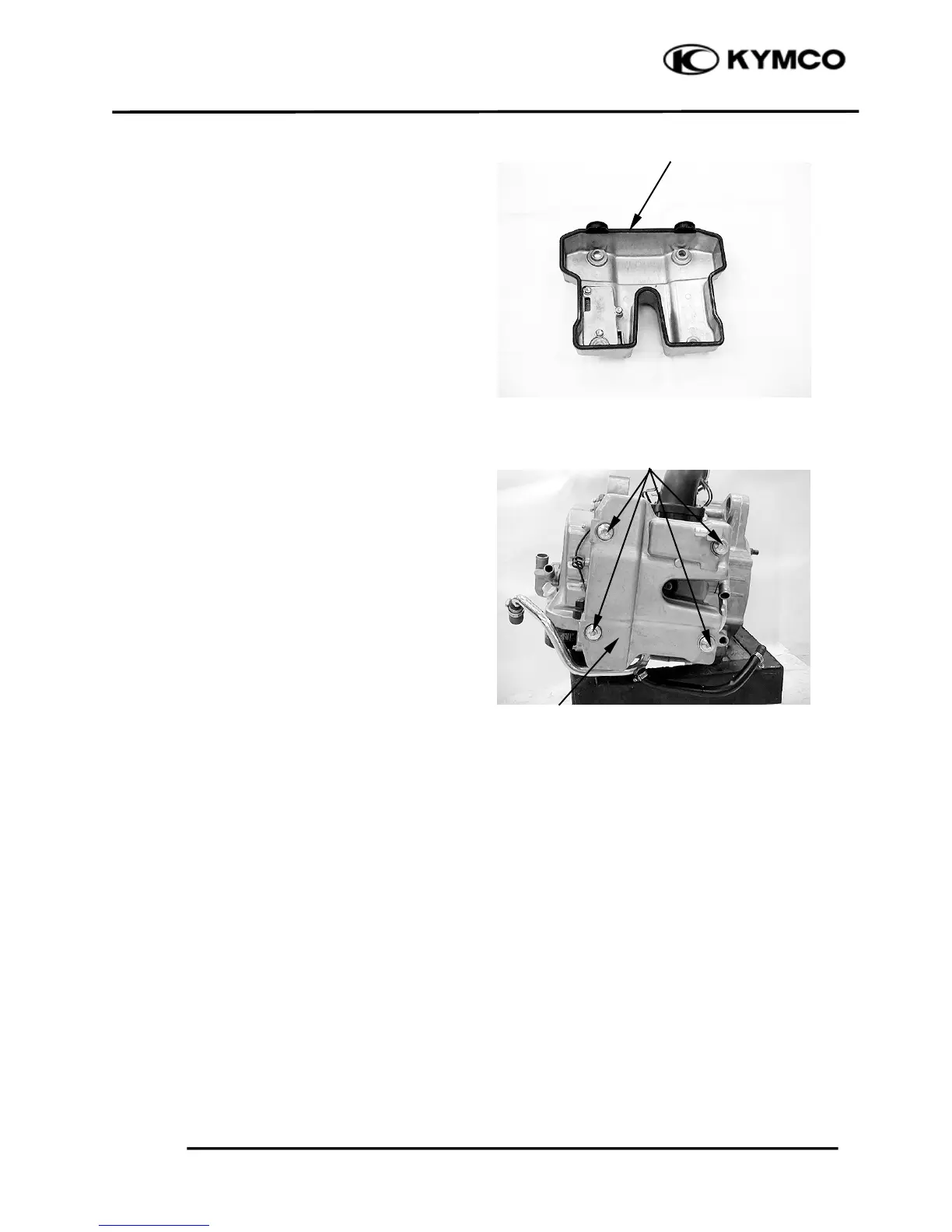

Install the cylinder head packing into the
groove of the cylinder head cover.
Install the cylinder head cover onto the
cylinder head and tighten the cylinder head
cover bolts to the specified torque.
Torque: 10 N•m (1 kgf•m, 7 lbf•ft)
Cylinder Head Cover
Bolts
Cylinder Head Cover Packing
