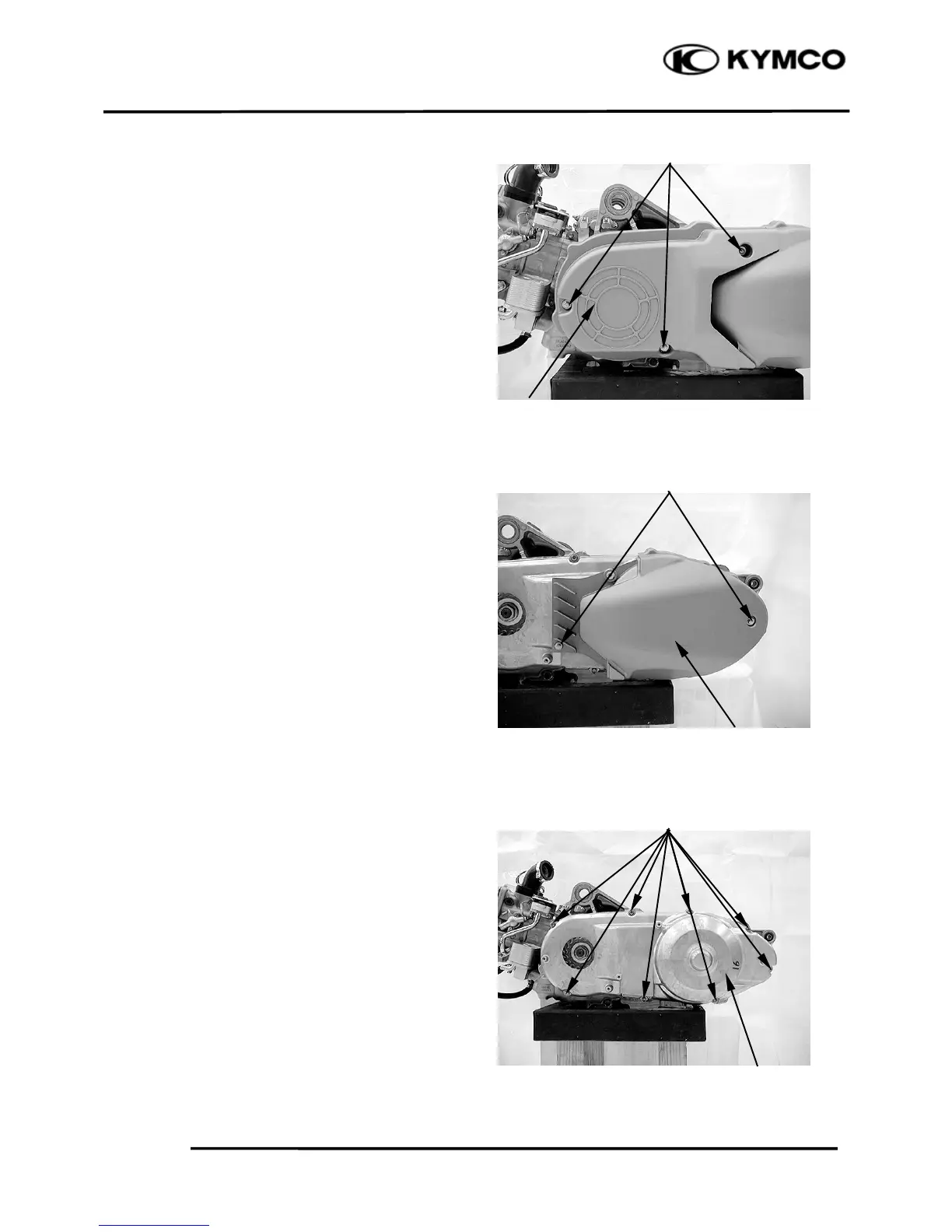

10. DRIVE AND DRIVEN PULLEY
10-3
XCITING 500
LEFT CRANKCASE COVER
REMOVAL
Remove the left center body cover (page 2-5).
Remove the three bolts and the left front
cover.
.
Remove the two bolts and left rear cover
Remove the eight bolts and left crankcase
cover.
Left Front Cover
Bolts
Crankcase
Bolts
Left Rear Cover
Bolts
