KYMCO XCITING 500 Service Manual

5. FUEL SYSTEM /FUEL PUMP
/FUEL TANK/CARBURETOR
5-5
XCITING 500
CARBURETOR
REMOVAL

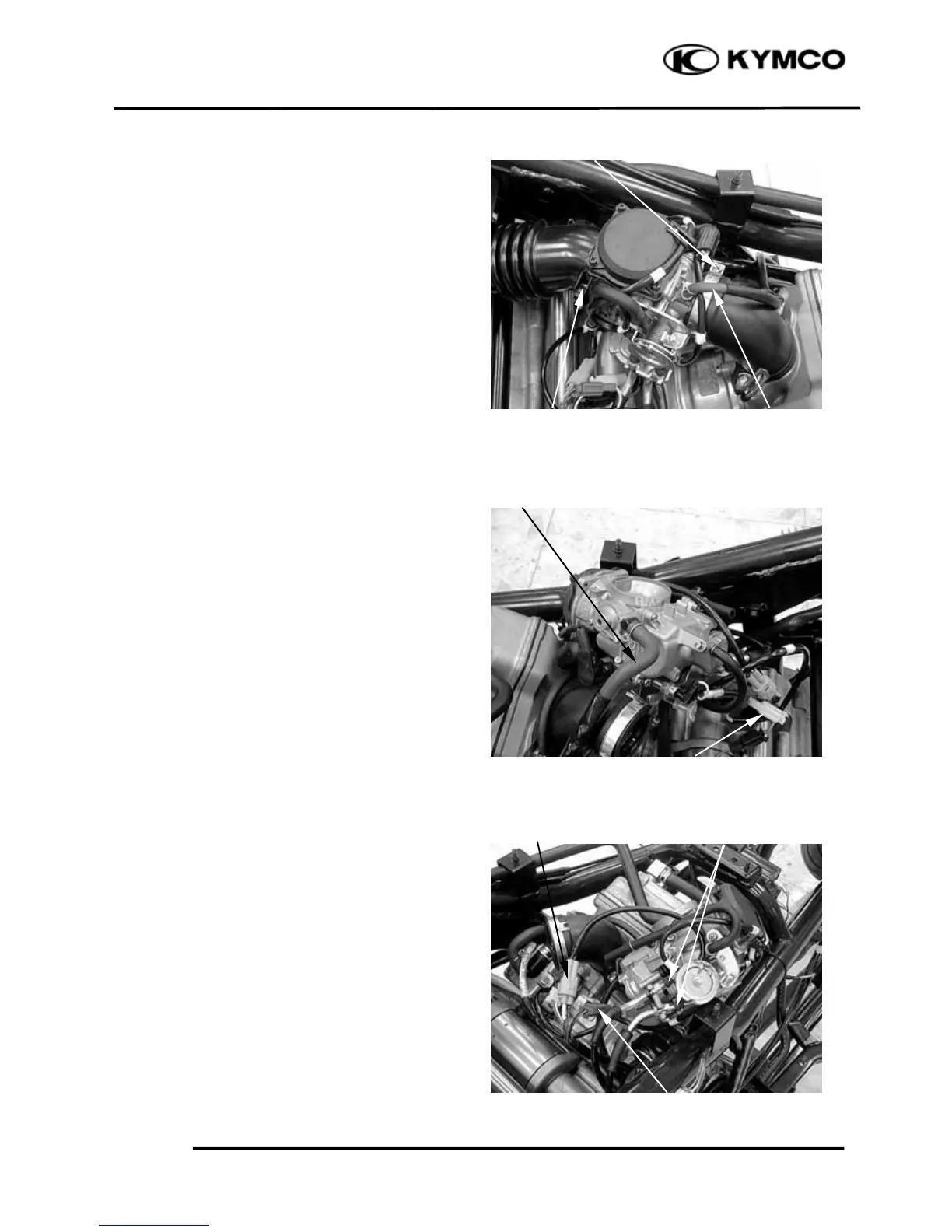

Remove the luggage box (page 2-3)
Loosen the air cleaner clamp screw.
Loosen the carburetor clamp screw.
Disconnect the vacuum hose from the
carburetor.
Pull the carburetor out from the air cleaner
and intake manifold.
.
Disconnect the fuel hose from the
carburetor.
Disconnect the carburetor heater connector.
Disconnect the throttle cables.
Disconnect the automatic choke connector.
Disconnect the T.P.S connector.
Remove the carburetor.
Air Cleaner Clamp Screw Vacuum Hose
Carburetor Clamp Screw
Fuel Hose
Carburetor Heater Connecto
r
T.P.S Connector Throttle Cables
Automatic Choke Connecto
r
