3. INSPECTION/ADJUSTMENT

3-10

XCITING 500

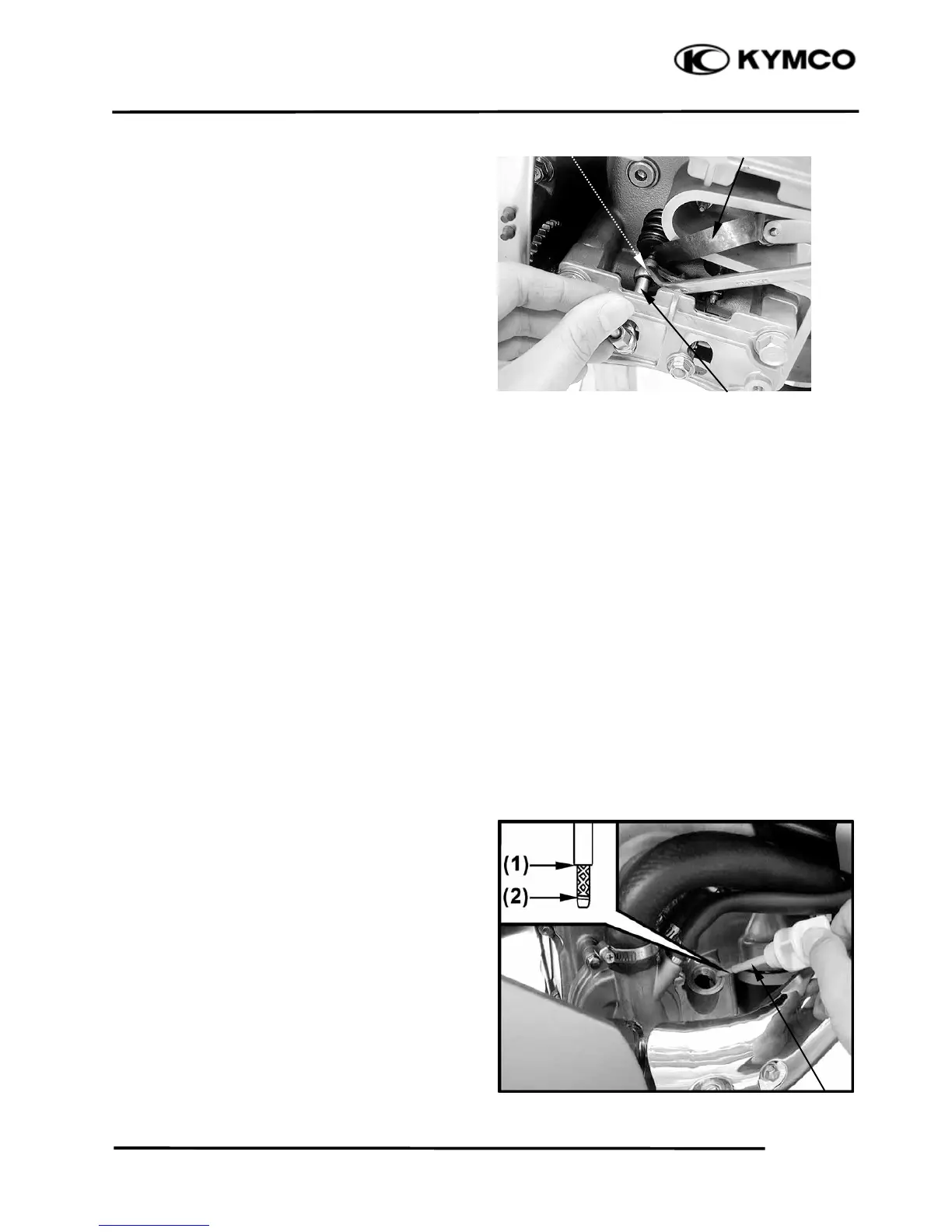

Adjust by loosening the valve adjusting screw

lock-nut and turning the adjusting screw until

there is a slight drag on the thickness gauge.

Valve clearance (when cold):

IN.: 0.1 mm (0.004 in)

EX.: 0.1 mm (0.004 in)

Apply oil to the valve adjusting screw lock-

nut threads and seating surface.

Hold the adjusting screw and tighten the lock

nut.

Special tool:

Valve adjusting wrench E012

Torque: 9N•m (0.9 kgf•m, 6 lbf•ft)

After tightening the lock nut, recheck the

valve clearance.

Install the removed parts in the reverse order

of removal.

ENGINE OIL

OIL LEVEL INSPECTION

Start the engine and let it idle for 2－3

minutes.

Turn off the engine and support the scooter

level surface.

Remove the oil filler cap/dipstick and wipe

the oil from the dipstick with a clean cloth.

Insert the dipstick into the oil filler hole

without screwing it in.

If the oil level is below or near the lower

level line (1) he dipstick, add the

recommended engine oil until the oil level is

to the upper level line (2)

Oil Filler Cap/Dipstick

Valve Adjusting Wrench/Adjusting Screw

Lock Nut Thickness Gauge
