3. INSPECTION/ADJUSTMENT

3-21

XCITING 500

ADJUSTMENT

Place the scooter on its center stand.

Release the parking brake lever lock.

Pull up the parking brake lever until 1 notch.

Loosen the lock nut.

Turn the adjust bolt until you feel resistance

when turn the rear wheel by your hand.

Hold the adjust bolt and tighten the lock nut

securely.

Release the parking brake lever.

Make sure the rear wheel turns smoothly.

Pull the parking brake lever slowly and check

the lever stroke.

Standard: 3－6 notches

All stroke: 9 notches

If there is out of specification, adjust again.

HEADLIGHT AIM

Place the scooter on a level surface.

Adjust the headlight beam vertically by

turning the vertical beam adjuster.

A clockwise rotation moves the beam up and

counterclockwise rotation moves the beam

down.

Adjust the headlight beam horizontally by

turning the horizontal beam adjuster.

A clockwise rotation moves the beam toward

the right side of the rider.

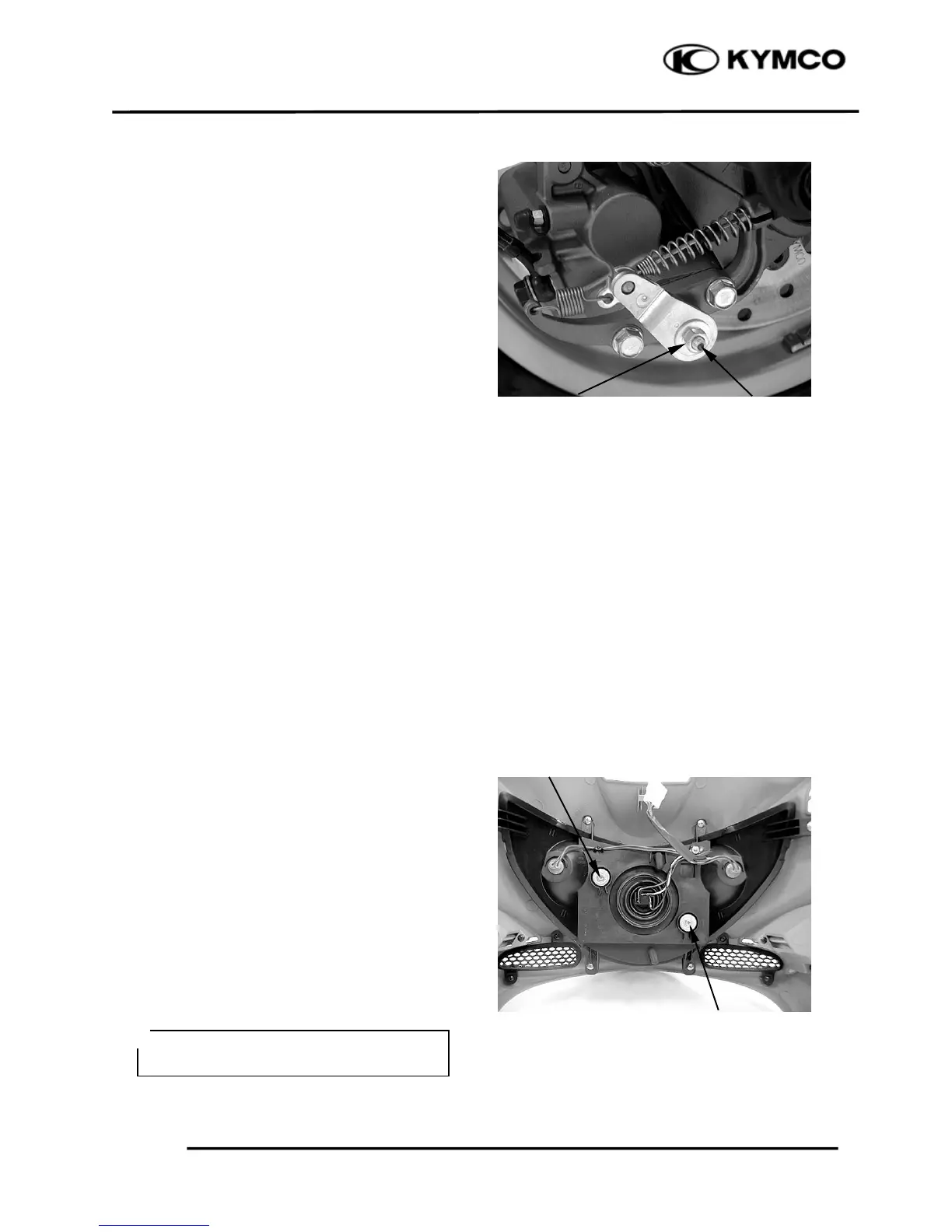

Lock Nut Adjust Bol

Vertically Adjusting Screw

Horizontally Adjusting Screw

Adjust the headlight beam as specifie

by local laws and regulations.

＊
