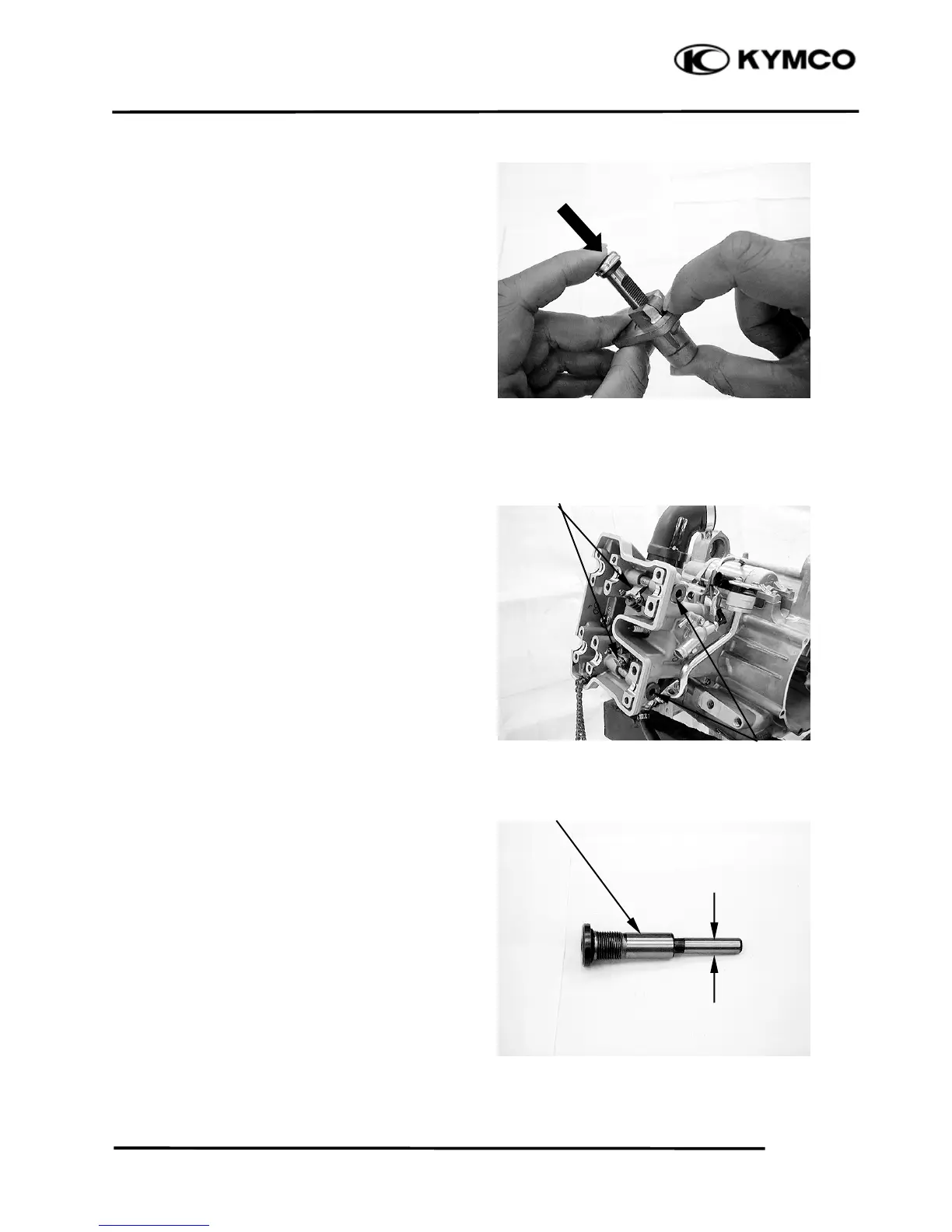

8. CYLINDER HEAD/VALVES

8-10

XCITING 500

Cam chain tensioner

Check the one-way cam operation (tensioner)

Unsmooth operation → Replace.

ROCKER ARMS REMOVAL

Remove the camshaft (page 8-6)

Remove the rocker arm shafts and washers,

then remove the rocker arms.

INSPECTION

Rocker arm shaft

Inspect the rocker arm shaft for blue

discoloration or grooves.

If any defects are found, replace the rocker

arm shaft with a new one, then inspect

lubrication system.

Measure each rocker arm shaft O.D.

Measure the I.D. of each rocker arm.

Measure arm to shaft clearance.

Replace as a set if out of specification.

Service limits: 0.1 mm (0.004 in)

Rocker Arm Shaf

Rocker Arm Shafts/Washers

Rocker Arms
