KYMCO XCITING 500 Service Manual

6. COOLING SYSTEM
6-17
XCITING 500

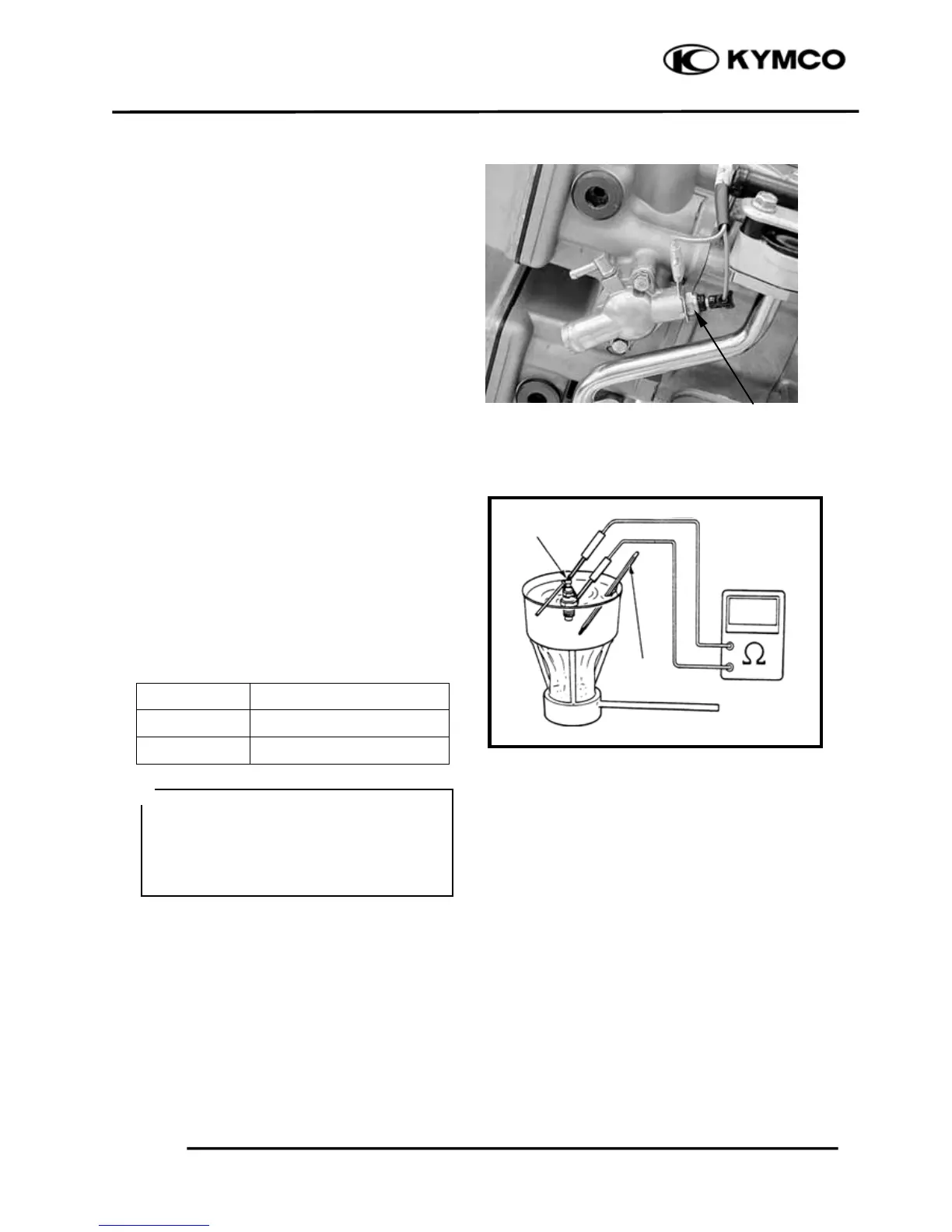

WATER TEMPERATURE
SENSOR
REMOVAL
Remove the side body cover (page 2-8)
Disconnect the water temperature sensor
connector.
Remove the water temperature sensor.
INSPECTION
Connect the water temperature sensor to the
ohmmeter and dip it in oil contained in a
pan which is placed on an electric heater.
Gradually raise oil temperature while
reading the thermometer in the pan and the
ohmmeter connected. If the resistance
measured is out of specification, replace the
temperature gauge with a new one.
Temperature Standard resistance
50℃ 140–310Ω
115℃ 24.1–28.2Ω
After the water temperature sensor has been
installed, fill coolant and perform air
bleeding (page 6-6).
INSTALLATION
With thread lock applied to the threaded
part, tighten the water temperature sensor.
Torque: 8 N•m (0.8 kgf•m, 5.8 lbf•ft)
● Handle the water temperature sensor
carefully as it is vulnerable to impact.
● Do not allow the water temperature
sensor and the thermometer to come in
contact with the bottom of the pan.
＊
Water Temperature Senso
r
Thermomete
r
Water Temperature Senso
r
