16. BRAKE SYSTEM

16-10

XCITING 500

BRAKE PAD

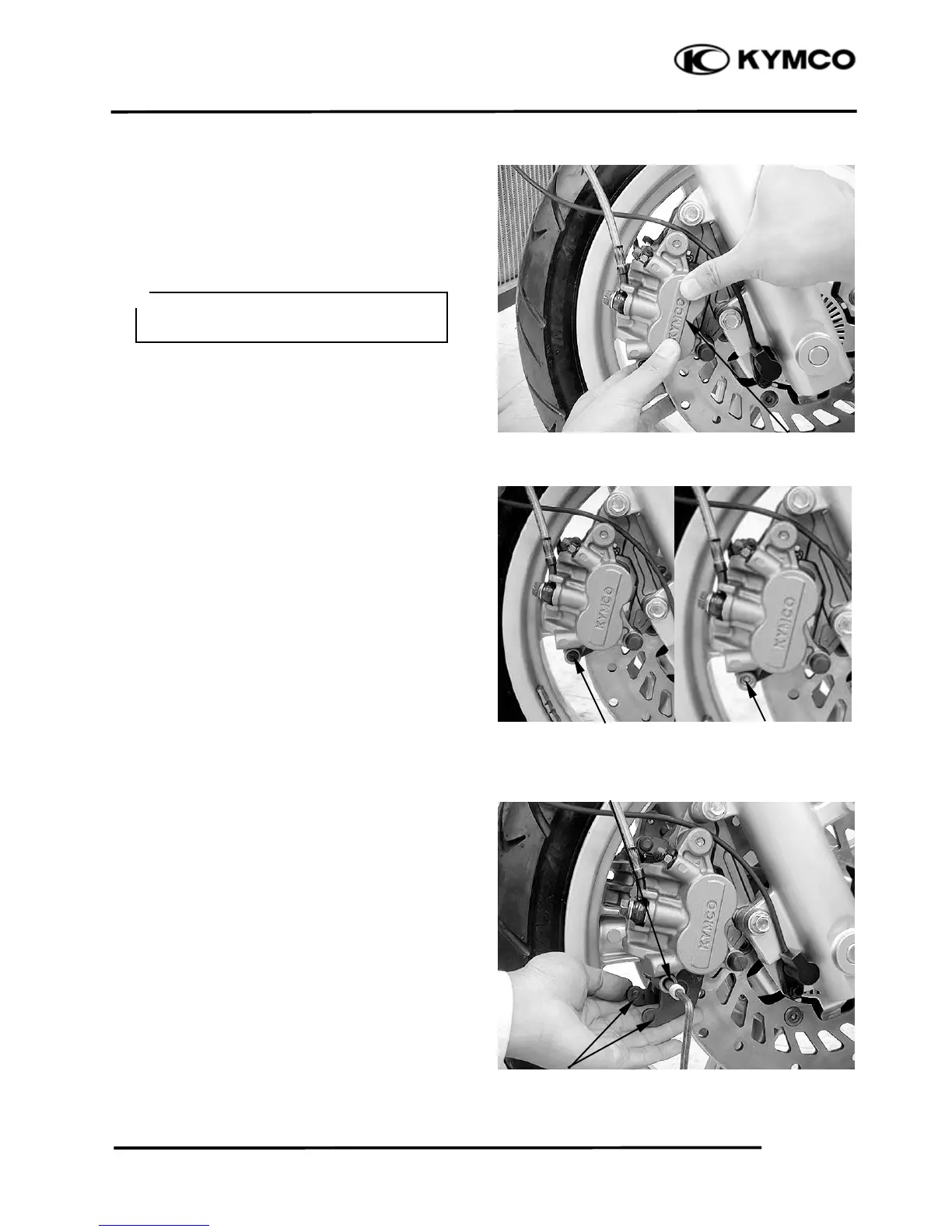

BRAKE PAD REPLACEMENT

Front brake:

Push the caliper pistons all the way in by

pushing the caliper body inward to provide

clearance for new pads.

Remove the pad pin plug and loosen the pad

pin.

Remove the pad pin and the brake pads.

Make sure that the pad spring is installed in

original position.

Install new pads so that the their ends rest on

the pad retainer on the bracket properly.

Install the pad pin by pushing the pads

against the pad spring to align the pad pin

holes in the pads and caliper.

Always replace the brake pads in pairs to

ensure even disc pressure.

＊

Caliper body

Pad Pin Plug Pad Pin

Brake Pads

Pad Pin
