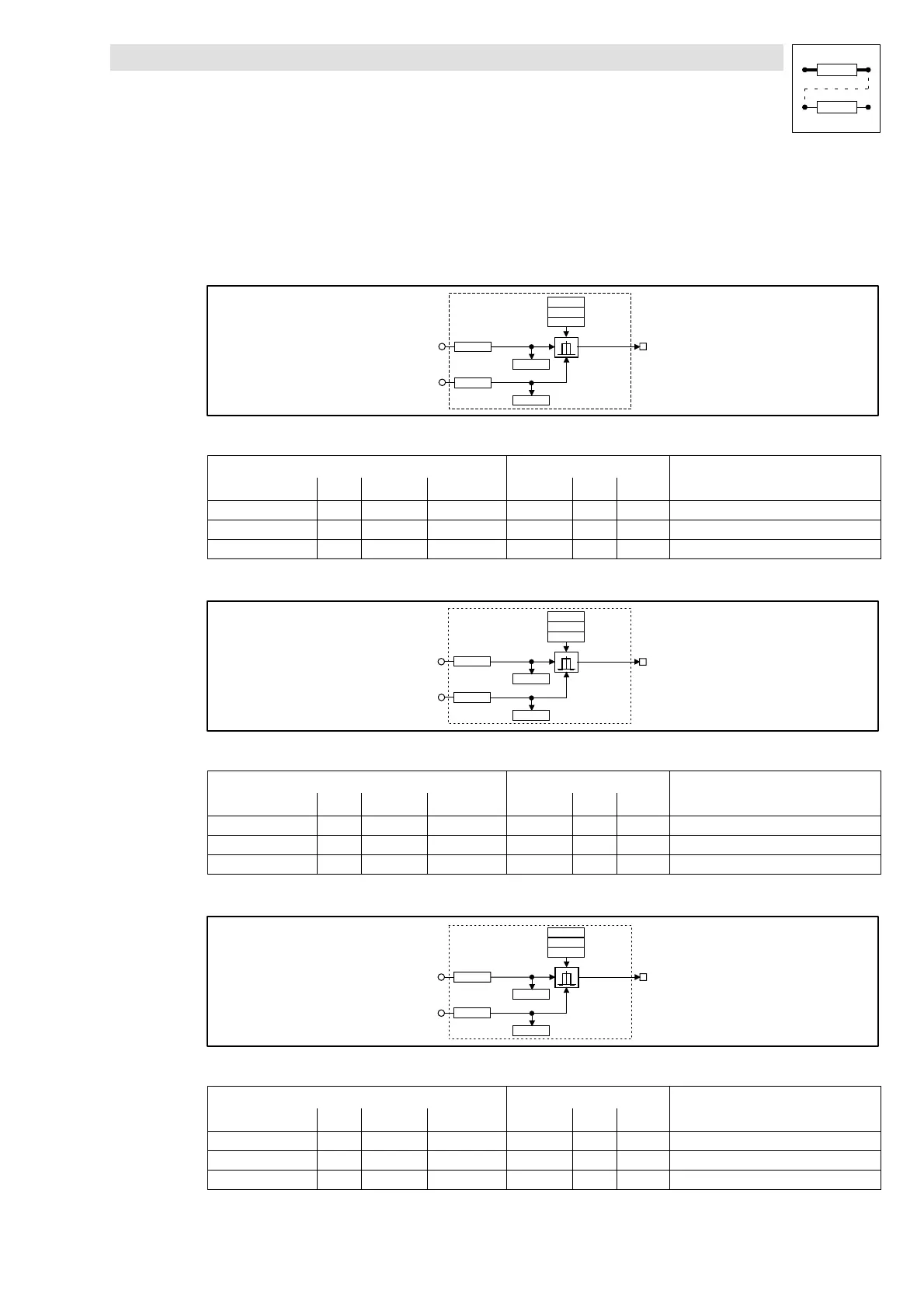

7.6.19 Comparator (CMP)
Purpose
These function blocks are used to compare two analog signals with each other.
Two comparators are available. They can be used to implement threshold switches:
C0681
C0682
C0684/1
CMP1
CMP1-OUT
CMP1-IN1
C0684/2
CMP1-IN2
C0683/1
C0683/2
C0680
Fig. 7-51 Comparator (CMP1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CMP1-IN1 a C0684/1 dec [%] C0683/1 1 5001 -
CMP1-IN2 a C0684/2 dec [%] C0683/2 1 19500 -
CMP1-OUT a - - - - - -
C0686
C0687
C0689/1
CMP2
CMP2-OUT
CMP2-IN1
C0689/2
CMP2-IN2
C0688/1
C0688/2
C0685
Fig. 7-52 Comparator (CMP2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CMP2-IN1 a C0689/1 dec [%] C0688/1 1 1000 -
CMP2-IN2 a C0689/2 dec [%] C0688/2 1 1000 -
CMP2-OUT a - - - - - -
C0691
C0692
C0694/1
CMP3
CMP3-OUT
CMP3-IN1
C0694/2
CMP3-IN2
C0693/1
C0693/2
C0690
Fig. 7-53 Comparator (CMP3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
CMP3-IN1 a C0694/1 dec [%] C0693/1 1 1000 -
CMP3-IN2 a C0694/2 dec [%] C0693/2 1 1000 -
CMP3-OUT a - - - - -
