7.7.3.10 Monitoring for short-circuit OC1
Purpose
Protects the controller.
MONIT
MONIT-OC1
I
motor
const

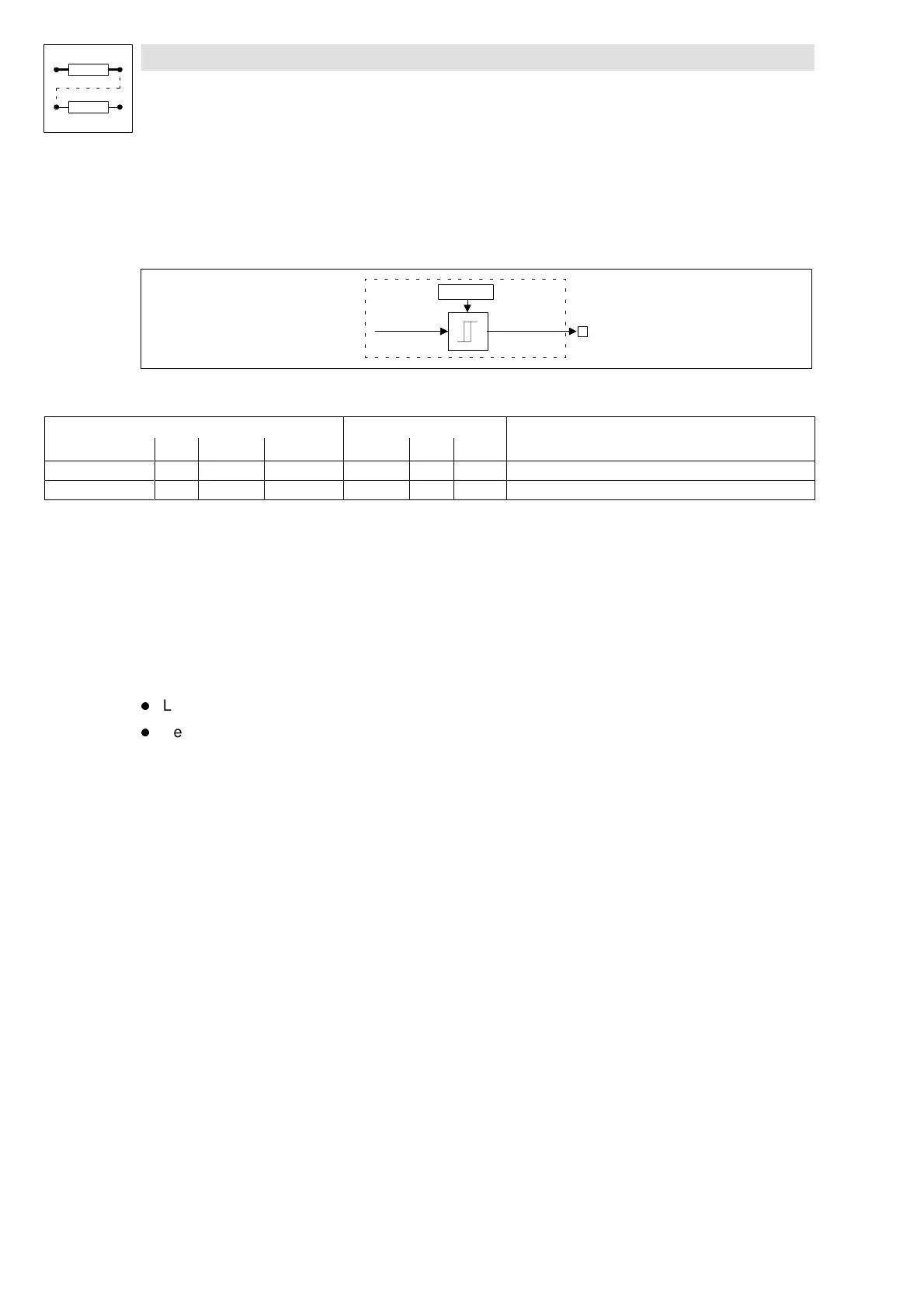

Fig. 7-203 Monitoring for short-circuit OC1
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
I
MOTOR
- - - - - - -
MONIT-OC1 d - - - - - -
Function
This monitoring is activated in the event of a short circuit of the motor phases. It is also possible that
it is an interturn fault in the machine.
Furthermore, this monitoring can also be activated if an
earth fault occurs.
If the monitoring is activated, the controller must be separated from the mains and the short circuit
must be eliminated.
Features:
l
LECOM no.: 11
l
Reaction: TRIP (unchangeable)
