Lenze EVS9326-EK User Manual

Installation
4-15
 SHB9300CRV EN 2.0

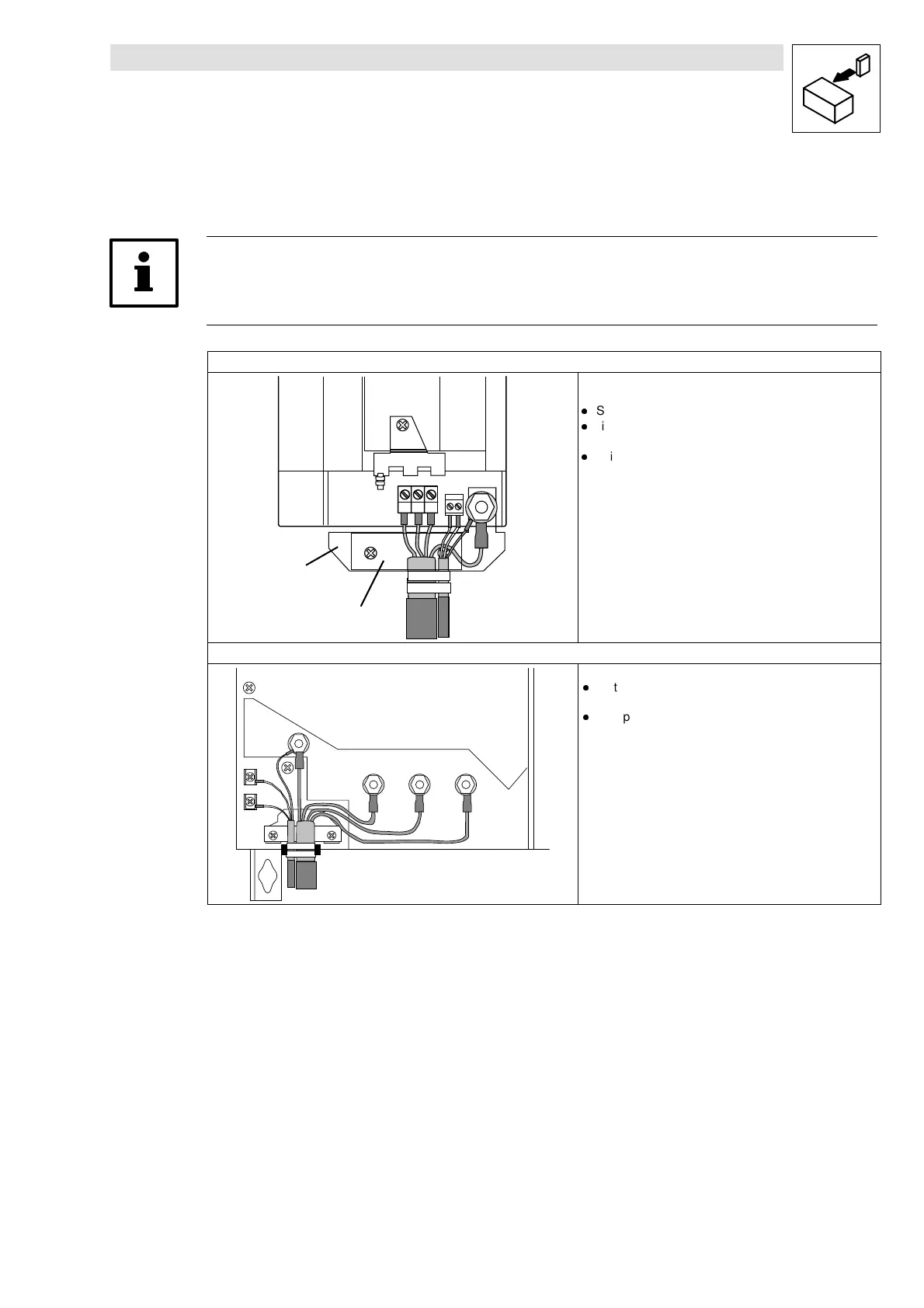

4.2.7.2 Motor connection
For EMC safety reasons, we recommend the use of screened motor cables.
Note!
Thescreeningofthemotor cablesisonlyrequiredto complywithexistingstandards(e.g. VDE0160,
EN 50178).
Types 9321 to 9326
UVW
PE
U
V
W
T1 T2


Correct screen connection with screened cables
(required parts in the accessory kit):
l Screw sreen plate  on fixing bracket ó.
l Fix the screen of the motor cable and thermal contact, if
necessary. Do not use as a strain relief!
l To improve the screen connection: Connect screens
additionally at the stud PE next to the motor connections.
Types 9327 to 9329
PE
T1
T2
UVW
Correct screen connection with screened cables:
l Fix the screen of the motor cable and thermal
contact, if necessary. Do not use as a strain relief!
l To improve the screen connection: Connect screens
additionally at the stud PE next to the motor
connections.
