7.6.65 Ramp generator (RFG)
Purpose
The ramp generator limits the rise of signals.
C0671
C0672
C0676/1
RFG1
RFG1-OUT
RFG1-IN
C0676/2
1
0
RFG1-SET
C0677
RFG1-LOAD
C0673
C0674
C0675

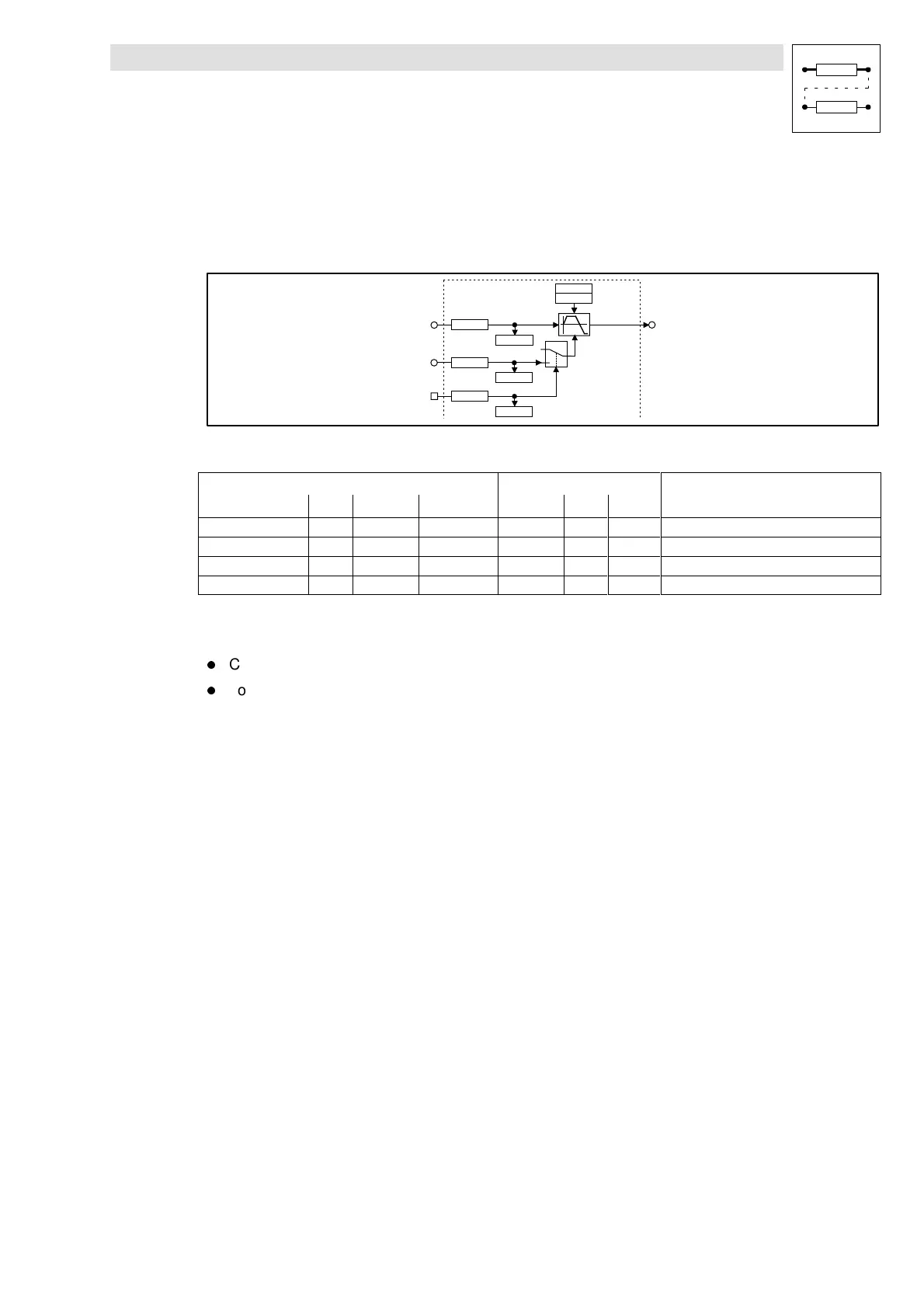

Fig. 7-163 Ramp generator (RFG1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
RFG1- IN a C0676/1 dec [%] C0673 1 1000 -
RFG1- SET a C0676/2 dec [%] C0674 1 1000 -
RFG1- LOAD d C0677 - C0675 2 1000 -
RFG1- OUT a - - - - - -
Function
l Calculation and setting of the times T
ir
and T
if
l
Loading of the ramp generator
