Lenze EVS9326-EK User Manual

Function block library
7-207

SHB9300CRV EN 2.0
SPC2
SPC2
C 1651/1
C 1651/2
C 1651/3
C 1651/4
C 1651/5
C 1651/6
C 1651/7
C 1651/8
C 1651/9
C 1652/1
SPC2-STAT2
SPC2-STAT3
SPC2-STAT4
SPC2-STAT5
SPC2-STAT6
SPC2-STAT7
SPC2-STAT8
C 1651/10
C 1651/11
C 1651/12
C 1651/13
C 1651/14
C 1651/15
C 1651/16
C 1658
C 1657
C 1655
VTPOSC
SP C 2-L-IN
IN 1 -1
IN 1 -2
IN 2 -1
IN 2 -2
IN 3 -1
IN 3 -2
IN 4 -1
IN 4 -2
IN 5 -1
IN 5 -2
IN 6 -1
IN 6 -2
IN 7 -1
IN 7 -2
IN 8 -1
IN 8 -2
C 1654/1
C 1659
C 1650/1
SPC2-RESET
C 1653/1
FCO D E
C 1476/X
FCO D E
C 1477/X
SPC2-STAT1
FCO D E
C 0474/X
VTPOSC
No 1 - 10

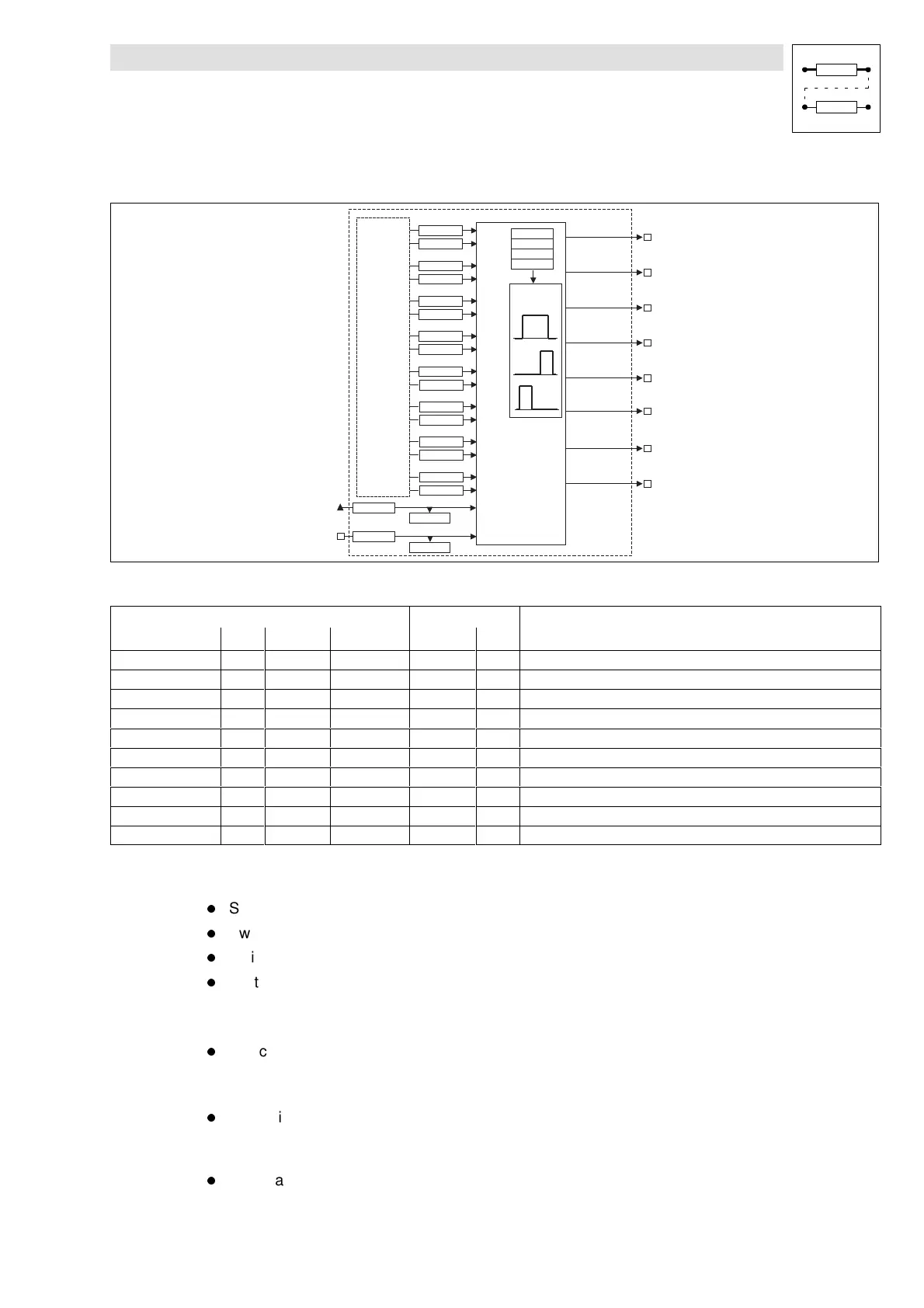

Fig. 7-167 Function block SPC2
Signal Source Note
Name Type DIS DIS format CFG List
SPC2-L-IN ph C1654/1 dec [inc] C1652/1 3 65536 inc = 1 rev.
SPC2-RESET d C1653/1 bin C1650/1 2 -
SPC2-STAT1 d - - - - -
SPC2-STAT2 d - - - - -
SPC2-STAT3 d - - - - -
SPC2-STAT4 d - - - - -
SPC2-STAT5 d - - - - -
SPC2-STAT6 d - - - - -
SPC2-STAT7 d - - - - -
SPC2-STAT8 d - - - - -
Function
l Switch points (beginning/end, center/range)
l Switch hysteresis
l Switch dead time
l Switch filter time constant
7.6.68.1 Switch points
l Switch points can be set in two ways:
– Mode 1: Start and end position
– Mode 2: Center with switch range
l The switch points are selected by means of the variable table VTPOSC.
– Direct input of switch-on and switch-off positions, the center and the switch range in
VTPOSC.
l If the value at SPCx-L-IN is within the range of the switch points sets, SPCx-STATx = HIGH
