Lenze EVS9326-EK User Manual

Function block library
7-205

SHB9300CRV EN 2.0

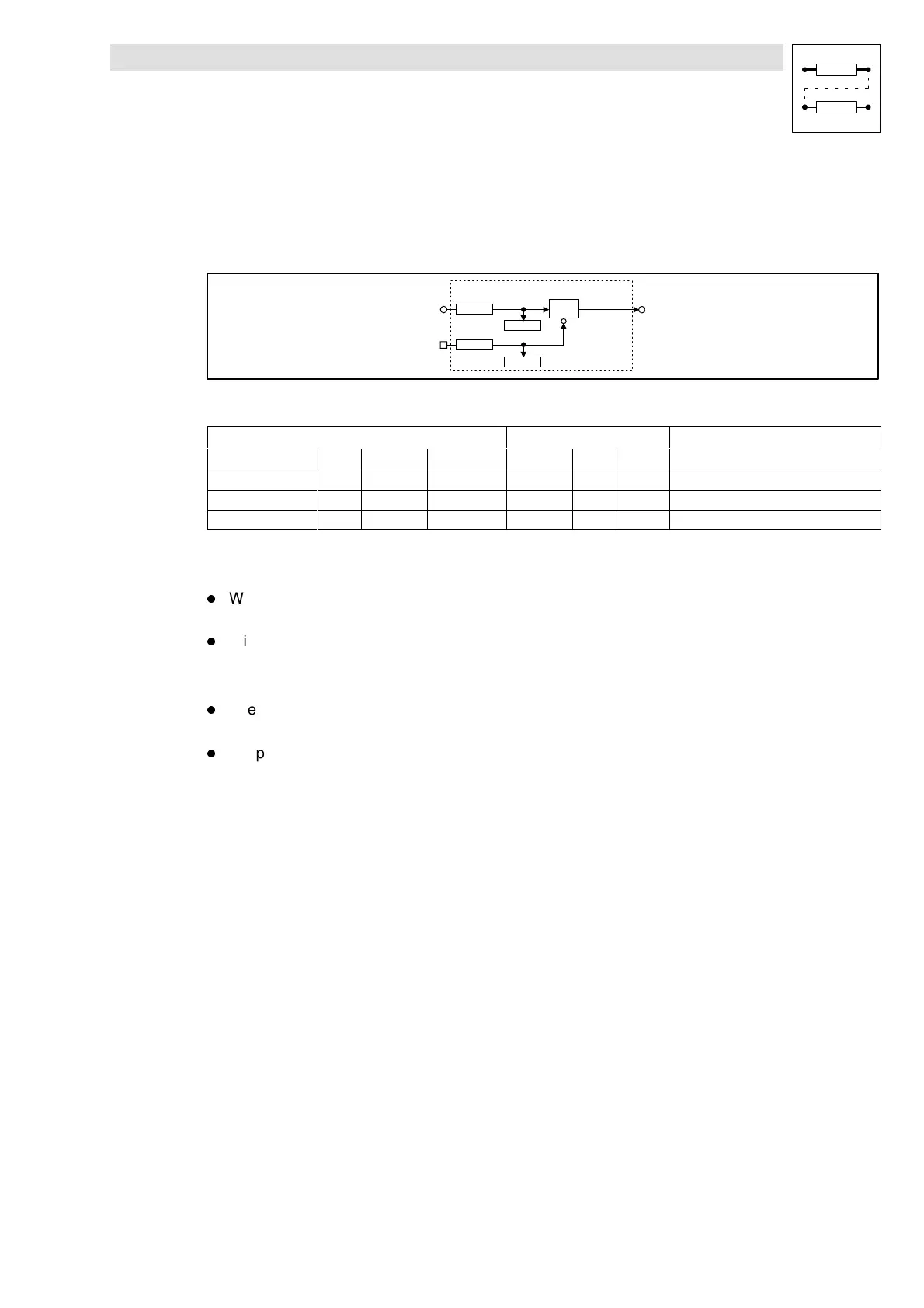

7.6.67 Sample and hold function (S&H)
Purpose
The FB can save analog signals. The saved value is also available after mains disconnection.
C0572
S&H1
S&H1-OUT
S&H1-IN
C0573
S&H1-LOAD
C0570
C0571
S&H
Fig. 7-165 Sample and hold function (S&H1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
S&H1-IN a C0572 dec [%] C0570 1 1000
S&H1-LOAD d C0573 bin C0571 2 1000 LOW= save
S&H1-OUT a - - - - -
Function
l With S&H1-LOAD = HIGH the signal at the input S&H1-IN is switched to the output
S&H1-OUT.
l With S&H1-LOAD = LOW the output S&H1-OUT is disconnected from the input S&H1-IN and
outputs the value which was last valid.
Saving in the case of mains disconnection:
l Keep S&H1-LOAD to LOW level when disconnecting the supply voltage (mains, DC bus or
terminal 59).
l Keep S&H1-LOAD to LOW level when connecting the supply voltage (mains, DC bus or
terminal 59).
