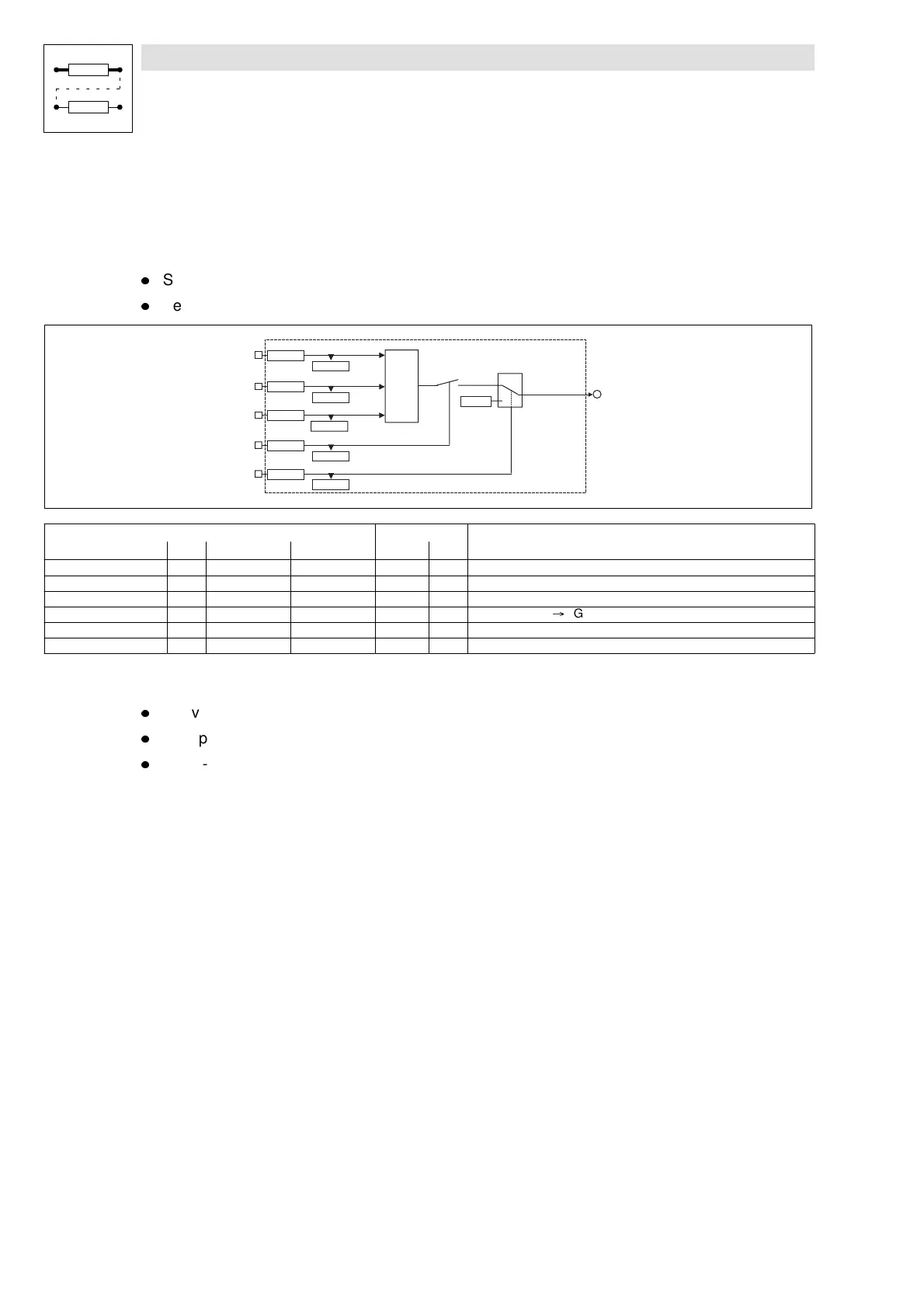

7.6.26 Cam profile selection (CSEL)
One function block (CSEL1) is available.
Purpose
l Selection of one cam profile out of eight profiles.
l Selection of an event profile
CSEL1
CSEL1-OUT
CSEL1-CAM *1
CSEL1-CAM *2
CSEL1-CAM *4
CSEL1-LO AD
DMUX
CSEL1-EVENT
C 1424/4
C 1425/1
C 1424/1
C 1424/2
C 1420
C 1424/3
C 1424/5
C 1425/2
C 1425/3
C 1425/4
C 1425/5
1
0
Signal Source
Note
Name Type DIS/selection DIS CFG List
N
o
t
e
CSEL1-CAM*1 d 1425/1 bin 1424/1 Selection bit 0
CSEL1-CAM*2 d 1425/2 bin 1424/2 Selection bit 1
CSEL1-CAM*4 d 1425/3 bin 1424/3 Selection bit 2
CSEL1-LOAD d 1425/4 bin 1424/4 Acceptance=LOW @ HIGH transition
CSEL1-EVENT d 1425/5 bin 1424/5 Selection value event cam profile
CSEL1-OUT a 13651 - - -
Function
l Conversion of a bit map into an analog value
l Acceptance of a converted value
l Event-dependent output of a fixed value
