7.8.2 Parameter change using the keypad
7.8.2.1 Keypad
(Order number: EMZ9371BB)
The keypad can be connected or disconnected from X1 during operation.
After the keypad has been connected to the controller it is initialized. The keypad is ready for
operation when ”GLOBAL DRIVE READY” is indicated.
Front view
Global DRIVE
SH PRG
Para
1250 rpm
0051
MCTRL-NACT
RDY
IMP Imax Mmax
Fail
00

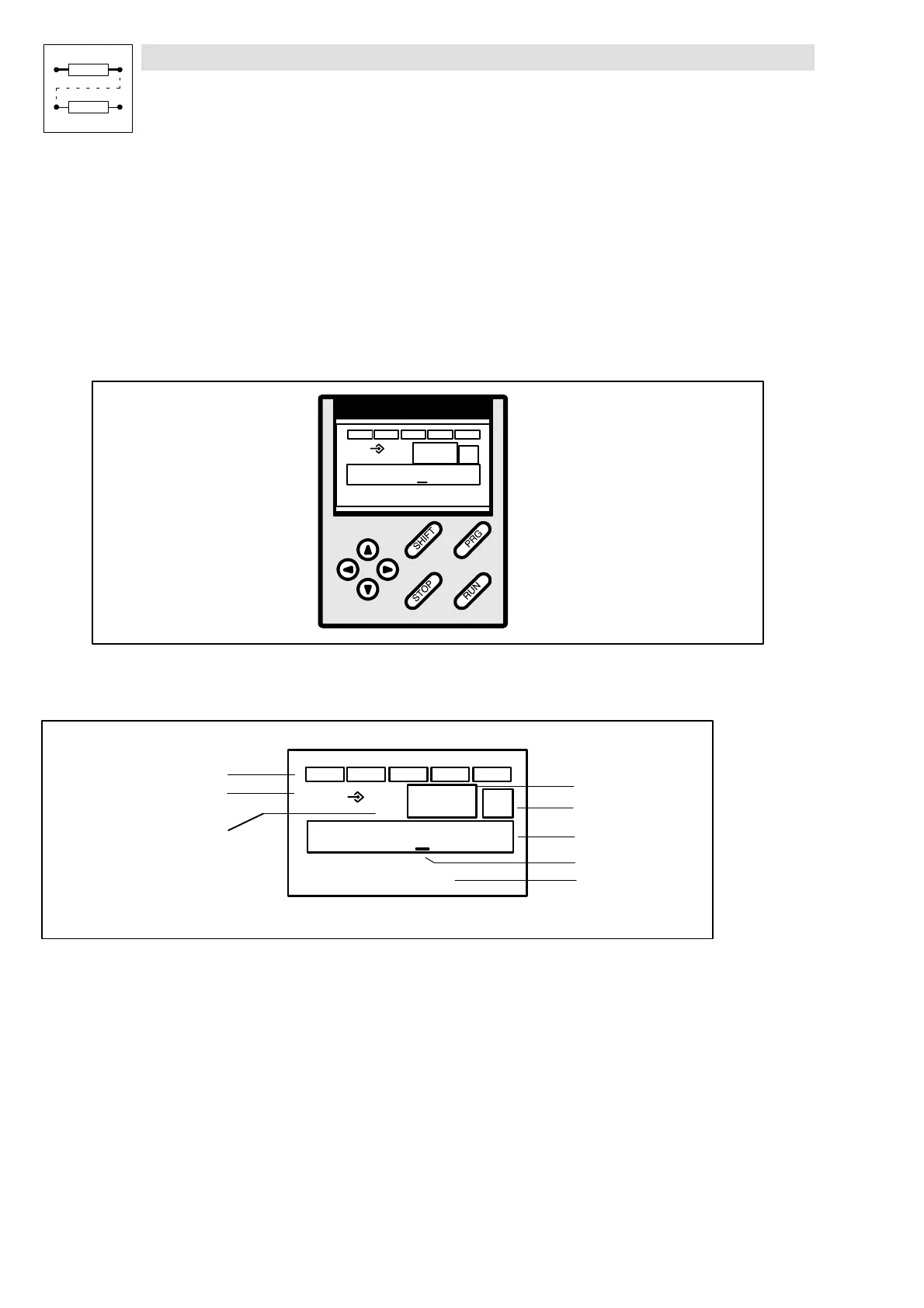

Fig. 7-212 The keypad
LCD
SH PRG
Para
0051
RDY
IMP Imax Mmax
Fail
Status indications
Typeof parameter
acceptance
Parameter
Te xt
Active level;
here: parameter level
Code number
Subcode number
Cursor
MCTRL-NACT
1250 rpm
00
Fig. 7-213 LCD display on the keypad
