7.6.70 Output of digital status signals (STAT)
Purpose
The FB evaluates digital signals of the function blocks and the status of the controller and passes
them on to C0150 and to the FB AIF-OUT and CAN-OUT1.
C 0156/1
STAT.B0
STAT.B2
STAT.B3
STAT.B4
STAT.B5
STAT.B14
STAT.B15
DCTRL-IMP
STAT
DCTRL-W ARN
DCTRL-MESS
DCTRL-NACT=0
C 0156/2
C 0156/3
C 0156/4
C 0156/5
DCTRL-STAT*1
DCTRL-STAT*2
DCTRL-STAT*4
DCTRL-STAT*8
0
1
2
3
4
5
6
8
9
DCTRL-CINH
7
10
11
12
13
14
15
C 0156/6
C 0156/7
AIF
Status w ord
C 0150
CAN-OUT1
Status w ord

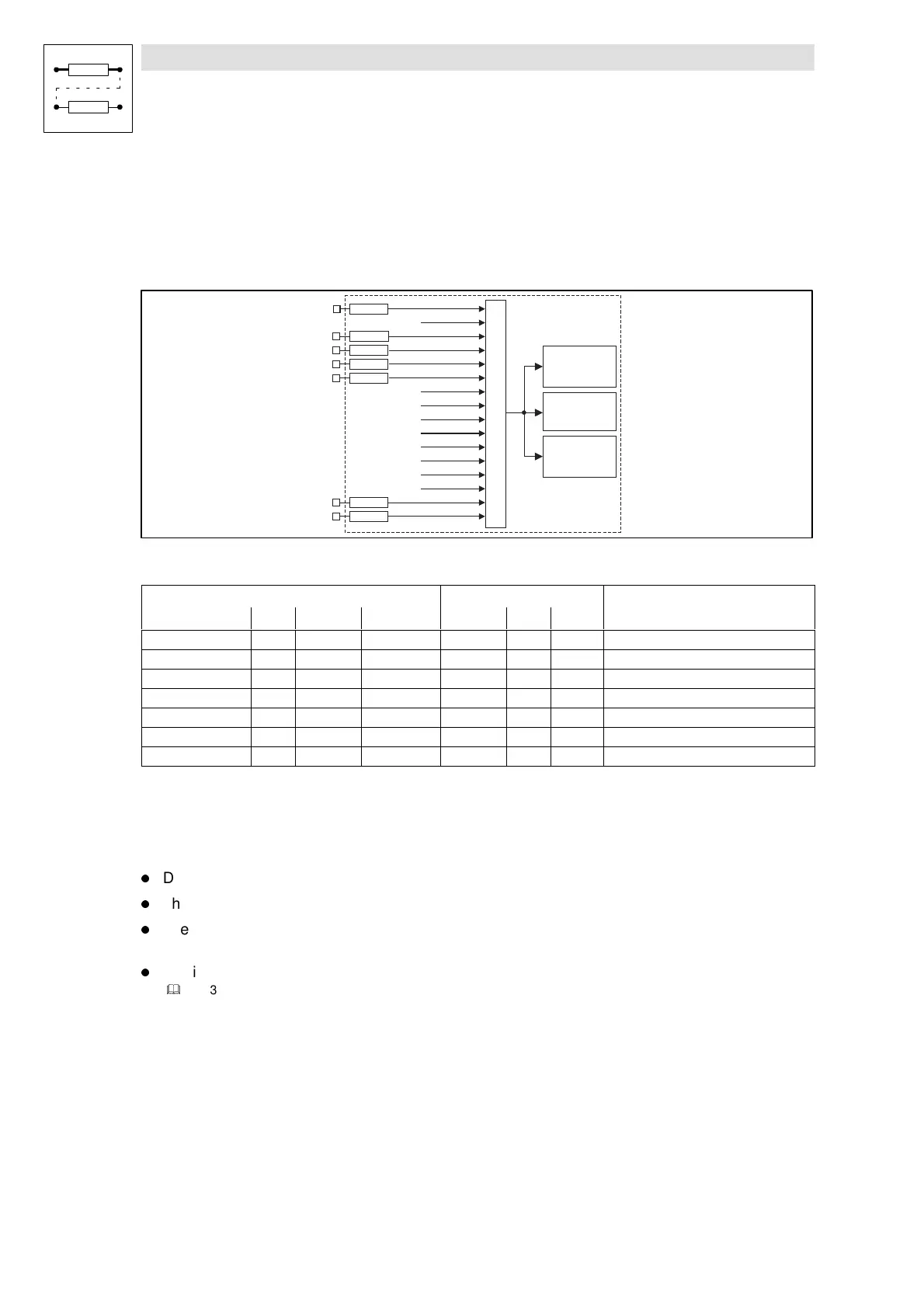

Fig. 7-176 Output of digital status signals ( STA T)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
STAT.B0 d - bin C0156/1 2 2000
STAT.B2 d - bin C0156/2 2 5002
STAT.B3 d - bin C0156/3 2 5003
STAT.B4 d - bin C0156/4 2 5050
STAT.B5 d - bin C0156/5 2 10650
STAT.B14 d - bin C0156/6 2 505
STAT.B15 d - bin C0156/7 2 500
Function
The status word consists of some linked (DCTRL-xxxx-) and some freely linkable signal inputs
(STAT.Bx).
l Digital signal sources can be freely assigned to the inputs STAT.Bx.
l The corresponding bit in the data word is marked with STAT.Bx (e.g. STAT.B0 for the LSB)
l The Statuswort is transferred to code C0150 and to the function blocks AIF-OUT, CAN-OUT1,
CAN-OUT2, and CAN-OUT1.
l The inputs with the name DCTRL-xxxx are directly accepted from the function block DCTRL.
(
&
7-103)
