Lenze EVS9326-EK User Manual

Function block library
7-102

SHB9300CRV EN 2.0

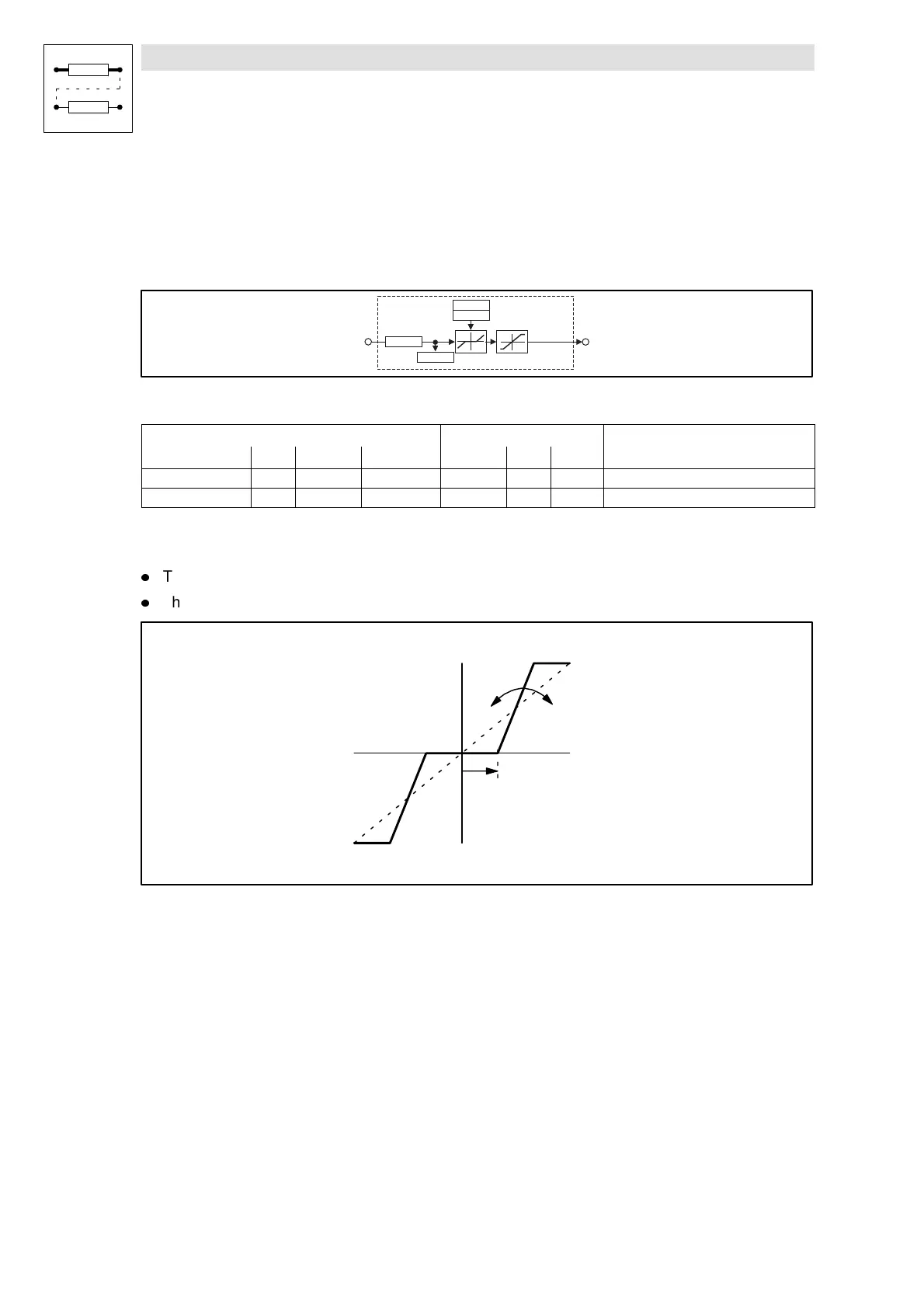

7.6.29 Dead band (DB)
Purpose
Thedead band element isused to setinterferinginfluences aroundzero, e.g.interferences onanalog
input voltages, to digital zero.
DB1
DB1-OUT
DB1-IN
C 0623
C 0622
±199,99%
C 0621
C 0620
Fig. 7-70 Dead band element (DB1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
DB1-IN a C0623 dec [%] C0622 1 1000 -
DB1-OUT a - - - - - limited to ±199.99 %
Function
l The dead band is parameterized under C0621.
l The gain is set under C0620.
C0621
C0620
DB1-IN
DB1-OUT
Fig. 7-71 Dead band and gain
