Lenze EVS9326-EK User Manual

Function block library
7-129

SHB9300CRV EN 2.0
7.6.41 Free digital outputs (FDO)
Purpose
This function block is used to switch digital signals via C0151, via the function block AIF-OUT and
via the function block CAN-OUT, to the connected fieldbus systems.
FDO-0
FDO-2
FDO-3
FDO-4
FDO-5
FDO-14
FDO-15
FDO-1
FDO
C0151
AIF-OUT
CAN1-OUT
FDO-6
FDO-7
FDO-8
FDO-9
C0116/10
FDO-10
FDO-11
FDO-12
FDO-13
FDO-16
FDO-18
FDO-19
FDO-20
FDO-21
FDO-30
FDO-31
FDO-17
FDO-22
FDO-23
FDO-24
FDO-25
FDO-26
FDO-27
FDO-28
FDO-29
C0116/1
C0116/2
C0116/3
C0116/4
C0116/5
C0116/6
C0116/7
C0116/8
C0116/9
C0116/11
C0116/12
C0116/13
C0116/14
C0116/15
C0116/16
C0116/17
C0116/18
C0116/19
C0116/20
C0116/21
C0116/22
C0116/23
C0116/24
C0116/25
C0116/26
C0116/27
C0116/28
C0116/29
C0116/30
C0116/31
C0116/32
CAN2-OUT
CAN3-OUT

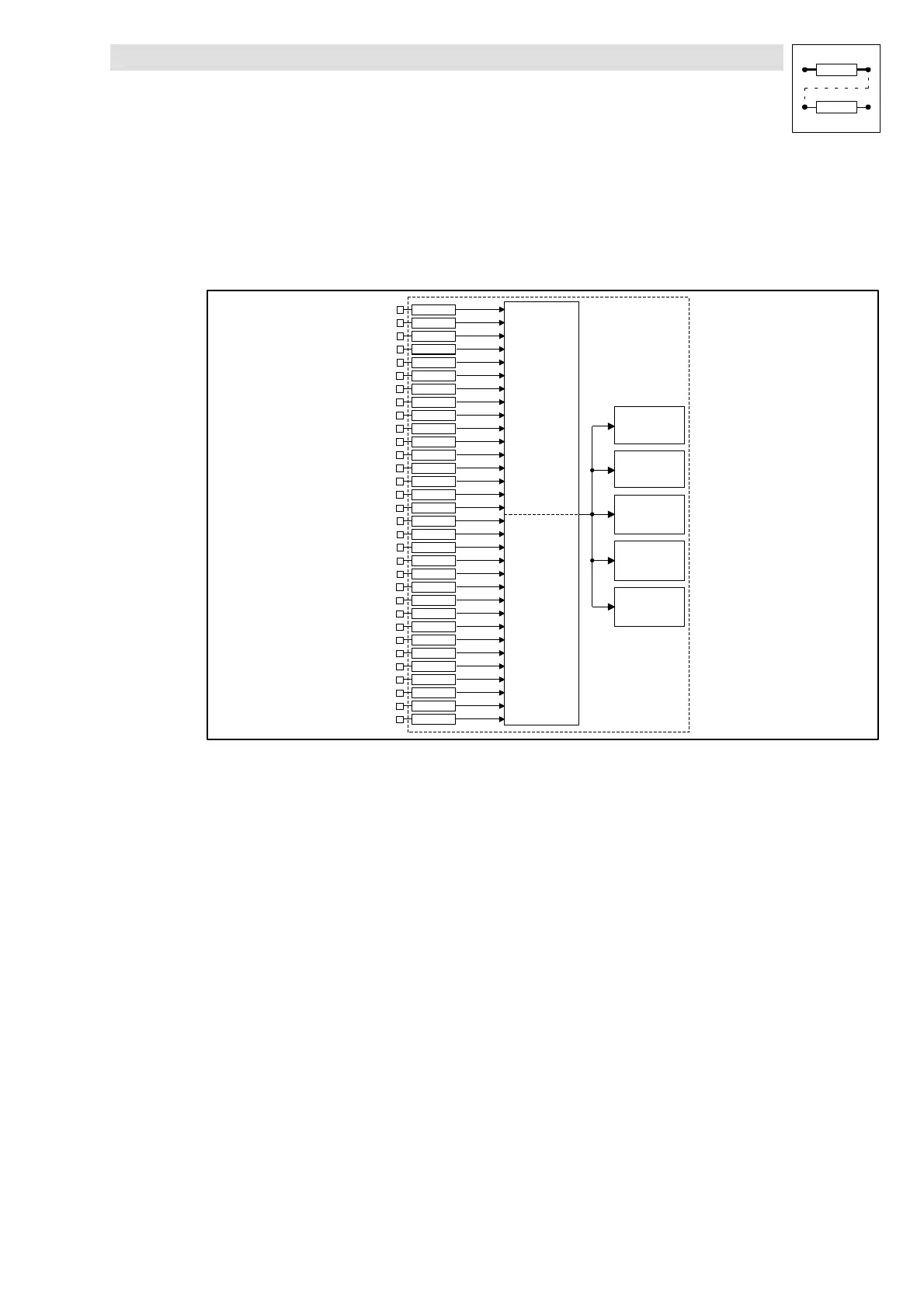

Fig. 7-97 Free digital outputs (FDO)
