Function block library
7-182

SHB9300CRV EN 2.0
7.6.58 Actual phase integrator (PHDIFF)
Purpose
Deliberate addition of a phase signal to the setpoint phase.
A comparison between setpoint and actual phase signals is also possible.
PHDIFF1
PHDIFF1-OUT
PHDIFF1-ADD
C 1237/2
C 1232/2
PHDIFF1-SET
C 1237/1
C 1232/1
PHDIFF1-IN
C 1236
C 1231
C 1230/1
C 1235/1
PHDIFF1-EN
C 1230/2
C 1235/2
PHDIFF1-RESET
+
-

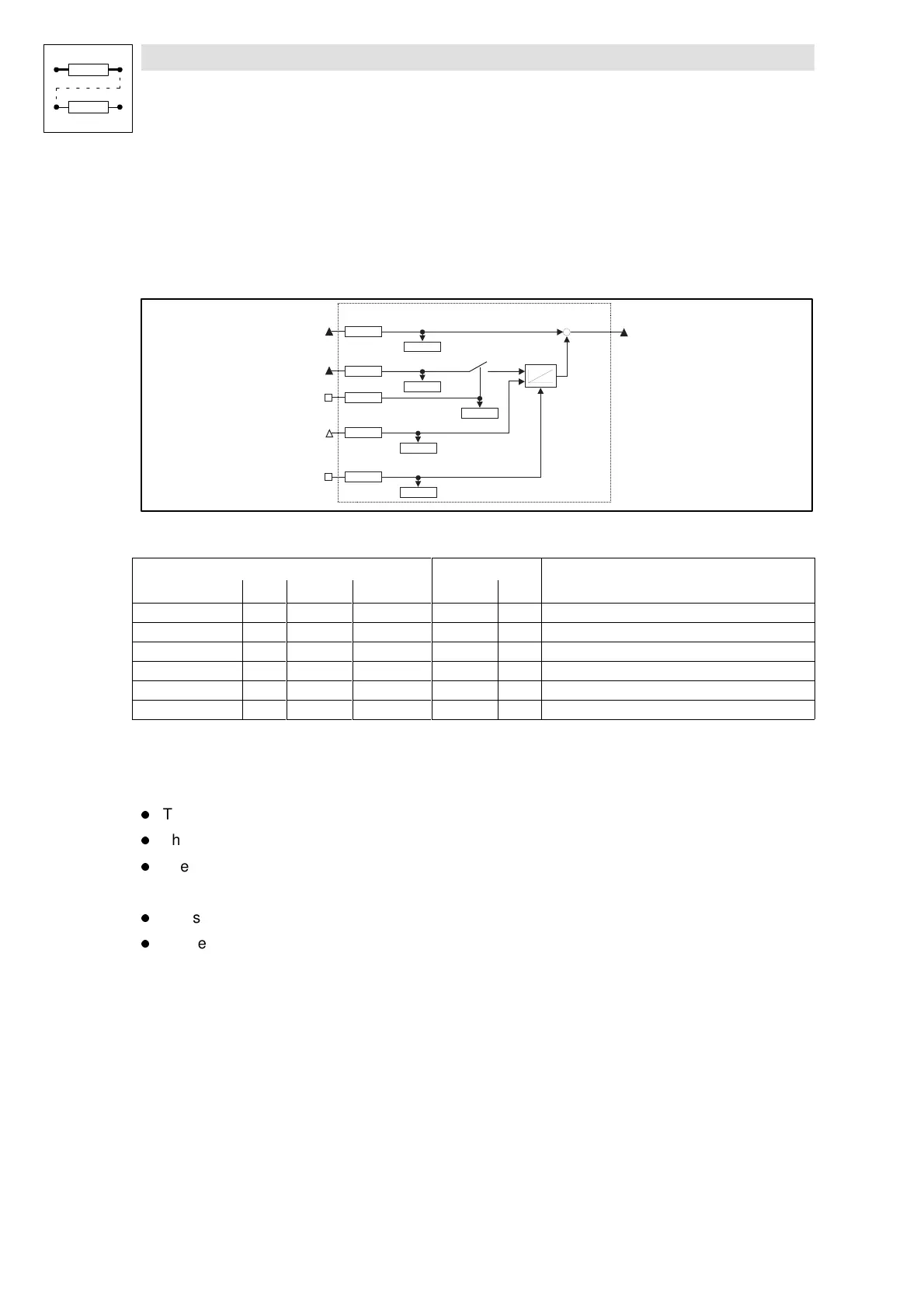

Fig. 7-146 Actual phase integrator (PHDIFF1)
Signal
Source Note
Name Type DIS DIS format CFG List
PHDIFF1-IN phd C1236 dec [rpm] C1231 4 -
PHDIFF1-SET ph C1237/1 dec [inc] C1232/1 3 -
PHDIFF1-ADD ph C1237/2 dec [inc] C1232/2 3 -
PHDIFF1-EN d C1235/1 bin C1230/1 2 -
PHDIFF1-RESET d C1235/2 bin C1230/2 2 HIGH = sets the actual phase integrator = 0
PHDIFF1-OUT ph - - - - without limitation
Function
C1230/1 = HIGH
l The speed signal at PHDIFF1-IN is integrated by the actual phase integrator.
l The phase signal at PHDIFF1-ADD is integrated to the integrated speed signal.
l The result of the actual phase integrator is subtracted from the phase signal at PHDIFF1-SET.
C1230/1 = LOW
l The speed signal at PHDIFF1-IN is integrated by the actual phase integrator.
l The result of the actual phase integrator is subtracted from the phase signal at PHDIFF1-SET.
