Installation
4-6
SHB9300CRV EN 2.0
4.1.4 Assembly of variants
Variant EVS932X-Cx (”Cold plate”)
For installation in a control cabinet with other heat inks in ”cold plate technique”
(x = order designation; more information on the inner cover page).
Dimensions for the types 9321-Cx to 9326-Cx
a
bd
g
Lenze
b1
c
e
c
a
bd
g
Lenze
b1
c2
a
bd
g
Lenze
b1
c
K35.0059

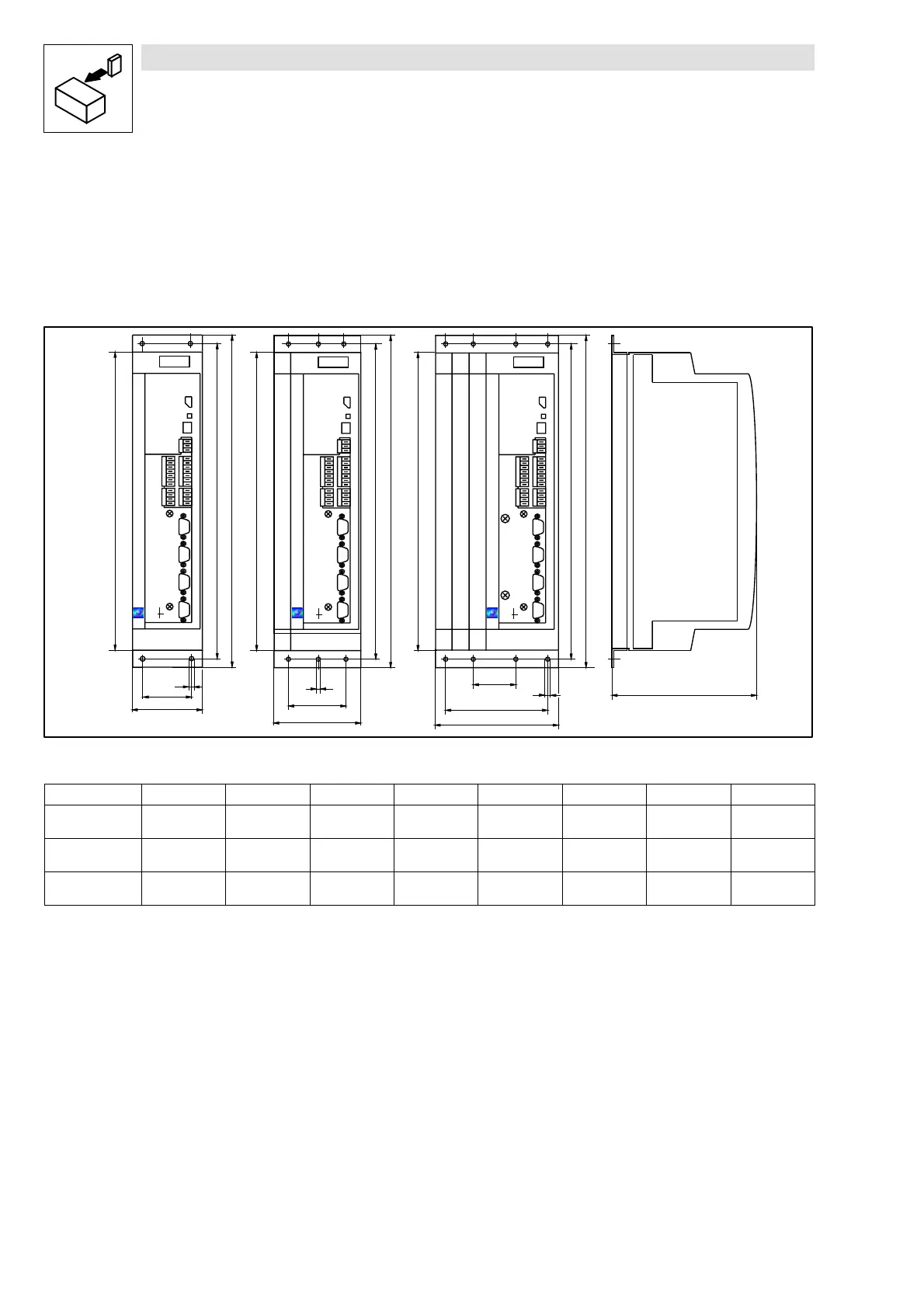

Fig. 4-4 Dimensions for the assembly in ”cold plate technique”
Type
a b b1 c c2 d e* g
9321-Cx
9322-Cx
78 381 350 48 - 367 168 6.5
9323-Cx
9324-Cx
97 381 350 67 - 367 168 6.5
9325-Cx
9326-Cx
135 381 350 105 38 367 168 6.5
*
When using an attachable fieldbus module:
Observe the free space required for the connection cables
All dimensions in mm
