9 Troubleshooting
Error messages
120 Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016

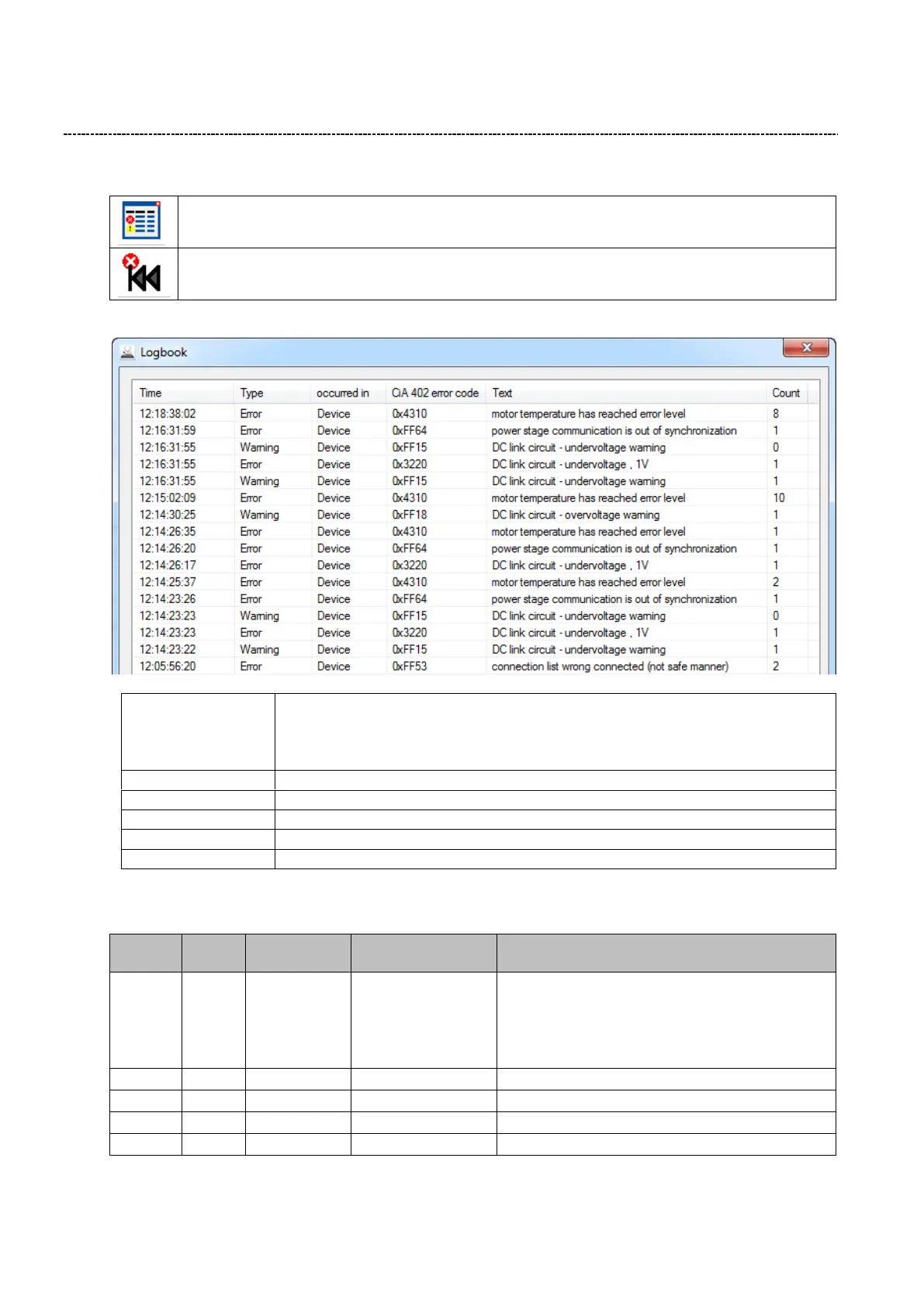

9.5.2 Error History Easy Starter
Opens the error logbook
Reset the drive error
Time
Time of the fault occurrence based on “Operation time (Control unit)” P150.03.
If more than one fault of the same type is counted (Count >1) the first fault occur-
rence time is shown!
[dd:hh:mm:ss]
Type
Error type (Warning, Error, Trouble)
Occurred in
Occurrence of the event
CiA 402 Error code
Error Code
Text
Error text
Count
Number of sequential fault occurrences
9.6 Error messages
Error
(Hex)
Error
(Dec)
Fault Type
Tool text
Description
0x2250
8784
Error
PU over current
Short circuit (device internal). Will be triggered by
the following events:
- Brake chopper over current
- Power stage over current
- Charge relay not closed
0x2320
8992
Error
Earth leak fault
Short circuit/earth leakage (device internal)
0x2340
9024
Error
Motor shorted
Short circuit (motor-side)
0x2350
9040
Configurable
i2t motor
Load level fault (I2t, thermal state). (P308:1-3)
0x2382
9090
Configurable
ixt Fault
Ixt fault. (P135:5)
