6 Function & parameter description
Group 2 – Basic setup
52 Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016
acceleration of the motor will begin.
To activate DC Brake also P704:1 and P704:2 need to be set.
2: Flying Start:
Inverter can start on a rotating motor. During start the inverter detects
the actual frequency and catches the motor. This feature provides
smoother starting for high inertia loads like fans, flywheels, etc...
P203:3
0x2838:3
Stop method
i510
i550
R/W
0: Coast to Stop
1: Standard Ramp
2: Quick stop ramp
Defines the Stopping method of the motor
0: Coast
Inverter will shut off the output of the motor and the motor will coast to
stop based on the inertia of the machine.
1: Standard Ramp
Inverter will ramp down the motor according to the selected decelera-
tion time
2: Quick stop ramp
Inverter will ramp down the motor according to the quick stop ramp.

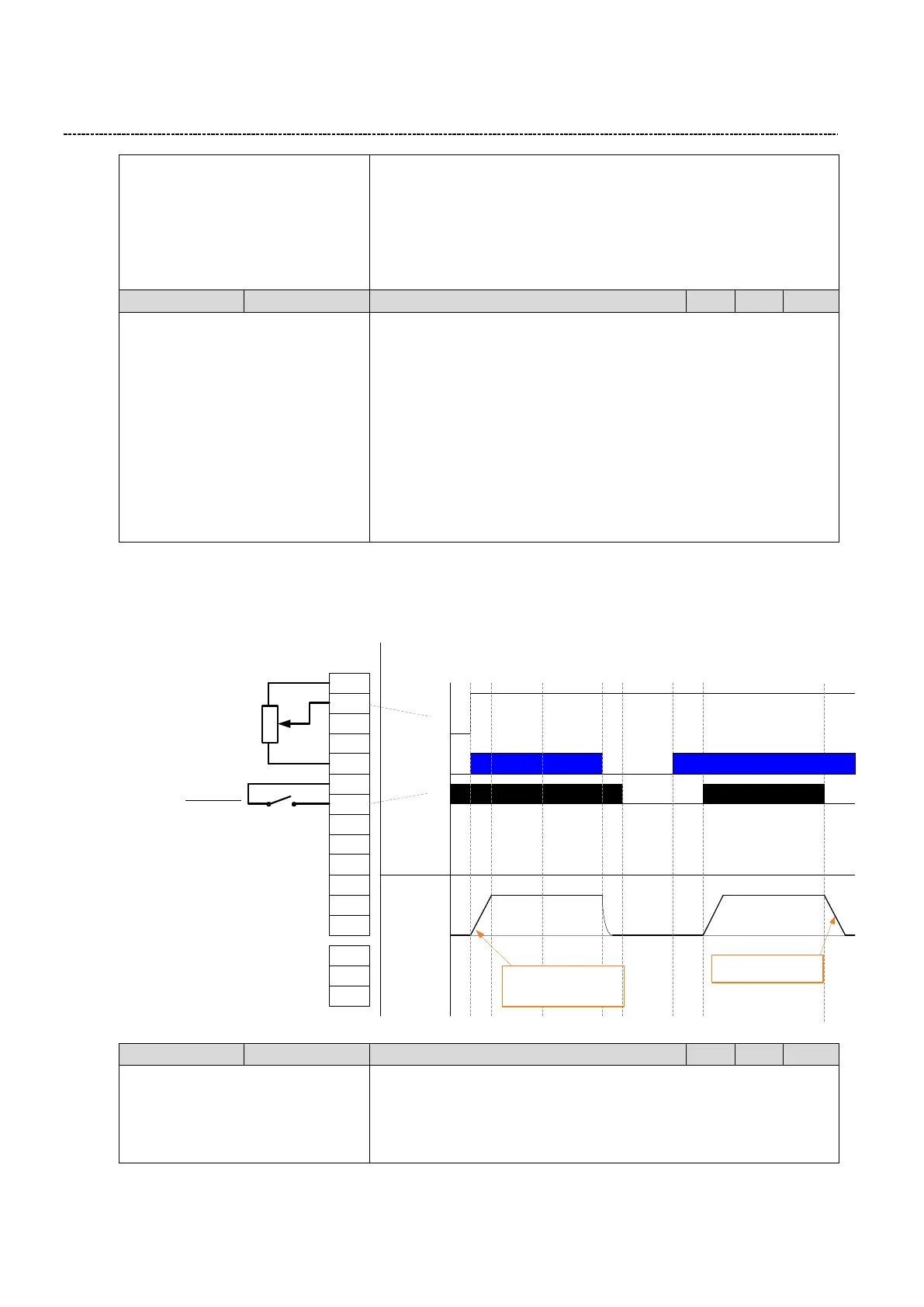

6.4.5 Start on power up
The “Start on Power” function allows to start the inverter automatically upon application of mains power if a val-
id start signal is present.
GND
AO1
AI2
AI1
DI1
24V
10V
DI5
DI4
DI3
DI2
GND
DO1
Run/Stop
Control Wiring
P400:2
NO
COM
NC
1k … 10k
Potentiometer
DI1
Expected Behavior
50 Hz
AI1
Mains
50 Hz
0 Hz
Start on Power-Up
P203:2= ON [1]
Run/Stop = TRUE
Stop method based on
P203:3
Motor
Frequency
P203:2
0x2838:2
Start on Power up
i510
i550
R/W
0: Off
1: On
Configuration of “Start on Power” function
0: Off
Already present start/run signal upon application of mains power are ig-
nored. The inverter needs a new start/run signal to start.
