Lenze i510 User Manual

5 Commissioning
General parameter setup (Favorites)
30 Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016
5.4.3 Motor control modes
Most applications like fans, pumps, and conveyors are possible in V/f (Voltage/frequency) mode. If the applica-
tion requires more dynamic and speed assurance then the SLVC (Sensor less Vector Control) mode can be used.
1: P208:1 AC input voltage
2: P303:1 Base Voltage
5: P303:2 Base Frequency
6: P211:0 Maximum frequency

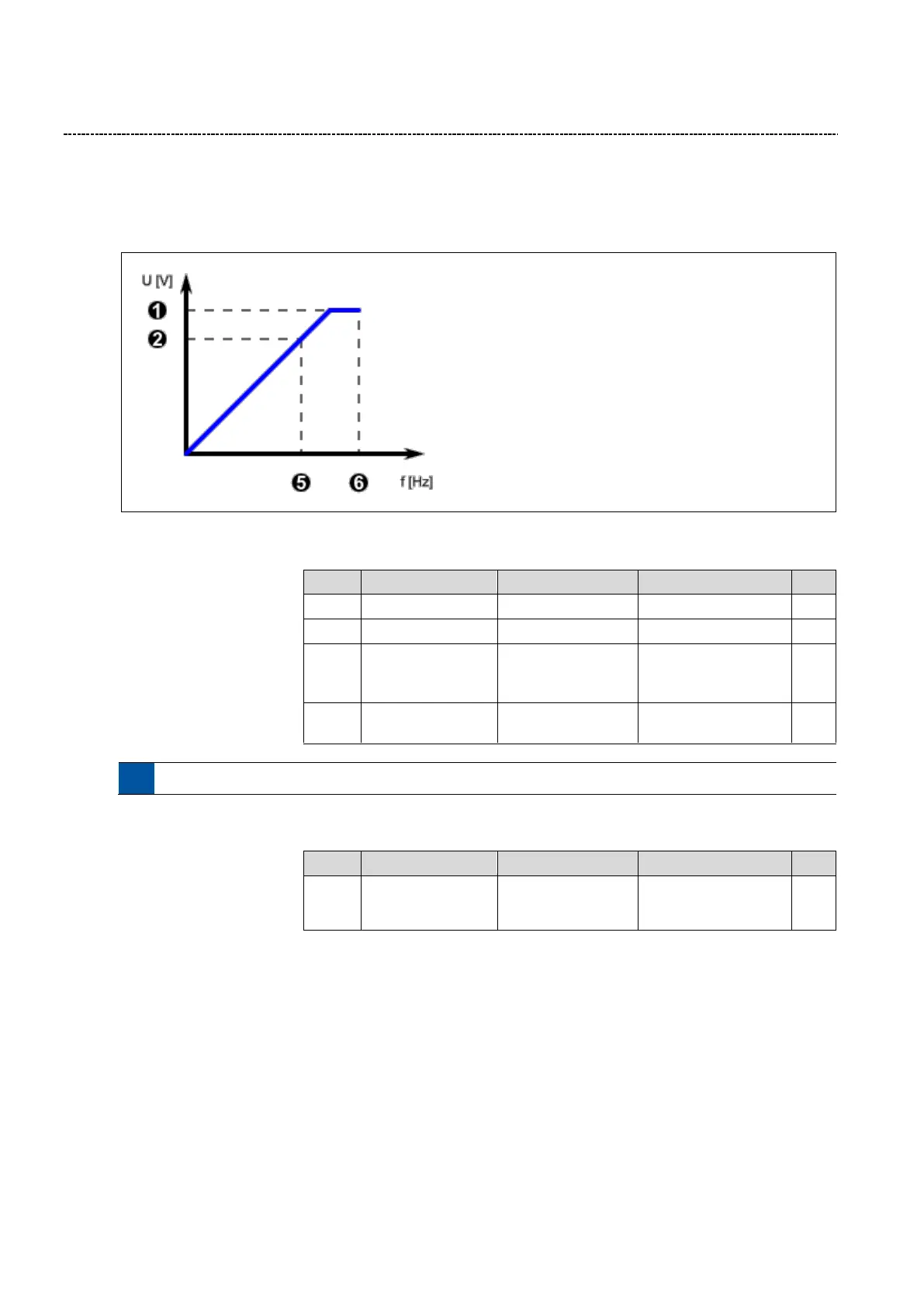

Fig. 13: V/F mode
For V/f mode set the
following parameters:
P no.
Type
Name
Default setting
Unit
P300:0
Motor Control
Motor control mode
6: VFC open loop
–
P302:0
Motor Control
V/f shape
0: Linear
–
Example: 400V/50Hz Motor
Base Voltage = 400V
Base Frequency = 50 Hz
P303:1
Motor Control
Base Voltage
230/400/480
Typecode dependent
VAC
P303:2
Motor Control
Base Frequency
50.0 / 60.0
Typecode dependent
Hz

For SLVC mode refer to chapter “6.5.1 Motor control mode”, page 56.
Motor rotation restriction
Set this parameter if your
application requires that
the motor is running only in
one direction:
P no.
Type
Name
Default setting
Unit
P304:0
Motor Control
Rotational restriction
1: Forwards/Reverse
–

Lenze i510 Specifications

General

Product Category	DC Drives
Series	i510
Protection Class	IP20
Communication	CANopen, Modbus RTU
Protection Features	Overvoltage, Undervoltage
Operating Temperature	-10 to +50 °C
Storage Temperature	-25 to +70 °C
Humidity	5% to 95% (non-condensing)
Control Mode	V/f control
