Lenze i510 User Manual

6 Function & parameter description
Parameter / function overview
34 Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016
6 Function & parameter description
6.1 Parameter / function overview
The i500 series is a multipurpose inverter with a various amount of functionalities. For fast and easy commission-
ing the parameters are grouped. The group 0 “Favorites” contains a link to the most common used parameters.

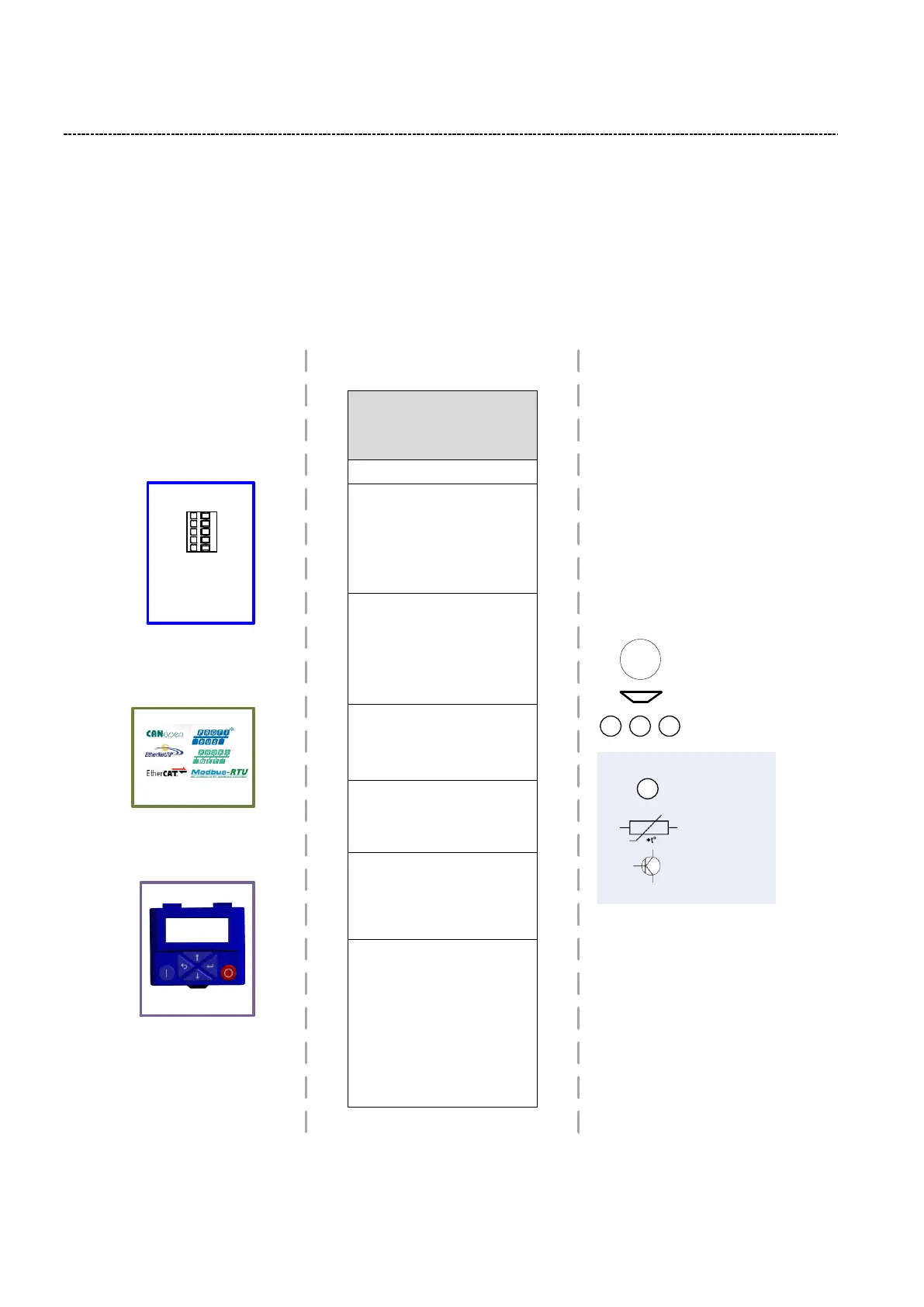

The following graphic shows an overview over the functionalities and where they can be programmed. For de-
tailed information see the corresponding chapter.
Additional in i550:
Motor Control (Group 3)
 VFC controller setup
 SLVC controller setup
 Motor parameter
 Motor supervision
 Skip frequency
M
I/O Setup (Group 4)
 Digital IOs
 Analog IOs
 Preset setpoints
Auxiliary Funtions (Group 7)
 Keypad Setup
 Brake control
 Brake energy management
 Flying start
 User group
 Parameter set
 Fault reaction
 Access control
Process Controller (Group 6)
 Controller setup
 PID Alarms
 Pumpl sleep/rinse mode
Basic Setup (Group 2)
 Control selection
 Start/Stop configuration
 Max/Min Frequency
 Acc/Dcc time
 QSP deceleration time
Fieldbus Setup (Group 5)
 Fieldbus setup
 Network mapping
Control / Setpoint Sources Inverter Parameters
I/O
I/O;
Connection
List
Network
LOC REM MAN AUTO
MOTOR CONTROL
SET8
GROUP 3
Keypad
E
Motor Brake
PTC
HTL Encoder
Motor / Operation
Brake transitor
Motor
Diagnostics (Group 1)
Favorites (Group 0)
 Access most important
parameters
Feedback PID (optional)P T F
/ /

Lenze i510 Specifications

General

Product Category	DC Drives
Series	i510
Protection Class	IP20
Communication	CANopen, Modbus RTU
Protection Features	Overvoltage, Undervoltage
Operating Temperature	-10 to +50 °C
Storage Temperature	-25 to +70 °C
Humidity	5% to 95% (non-condensing)
Control Mode	V/f control
