4.2.2 Wiring overview i550

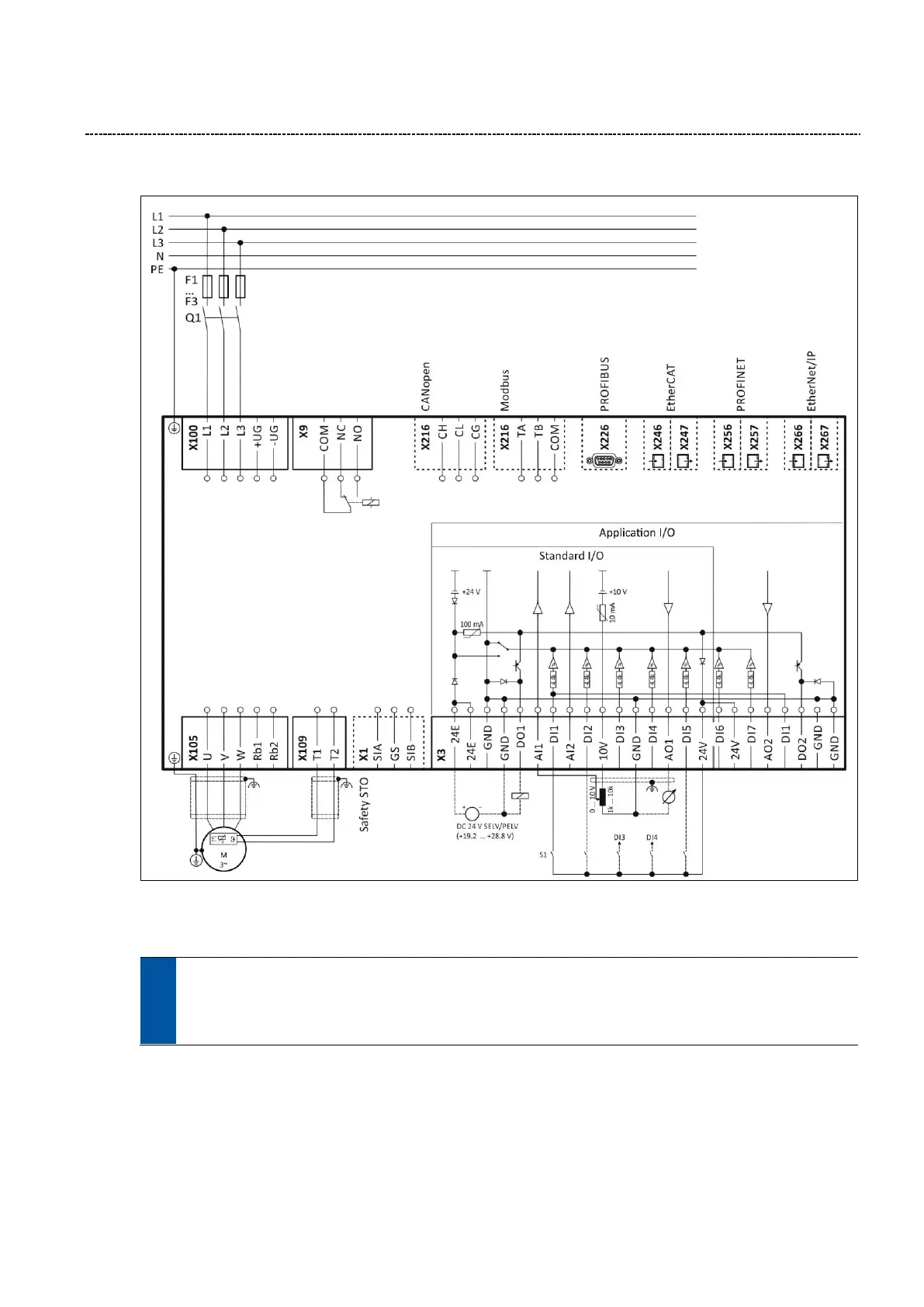

Fig. 6: i550 wiring, 400 V AC
Connections shown by dashed lines are optional.

For 230V connection see next previous subchapter “4.2.1 Wiring overview i510” on page 18
For connections to other electricity supply systems refer to separate manual:
i500 Mounting and switch-on instructions
3/N/PE AC 400 V / 480 V
3/PE AC 400 V / 480 V

Lenze i510 Specifications

General

Product Category	DC Drives
Series	i510
Protection Class	IP20
Communication	CANopen, Modbus RTU
Protection Features	Overvoltage, Undervoltage
Operating Temperature	-10 to +50 °C
Storage Temperature	-25 to +70 °C
Humidity	5% to 95% (non-condensing)
Control Mode	V/f control
