Multi−axis controllers
Wiring
Devices in the range 47 ... 59 A (22 ... 30 kW)
4
215
EDS94SPP101 EN 10.2
4.7.5 Devices in the range 47 ... 59 A (22 ... 30 kW)

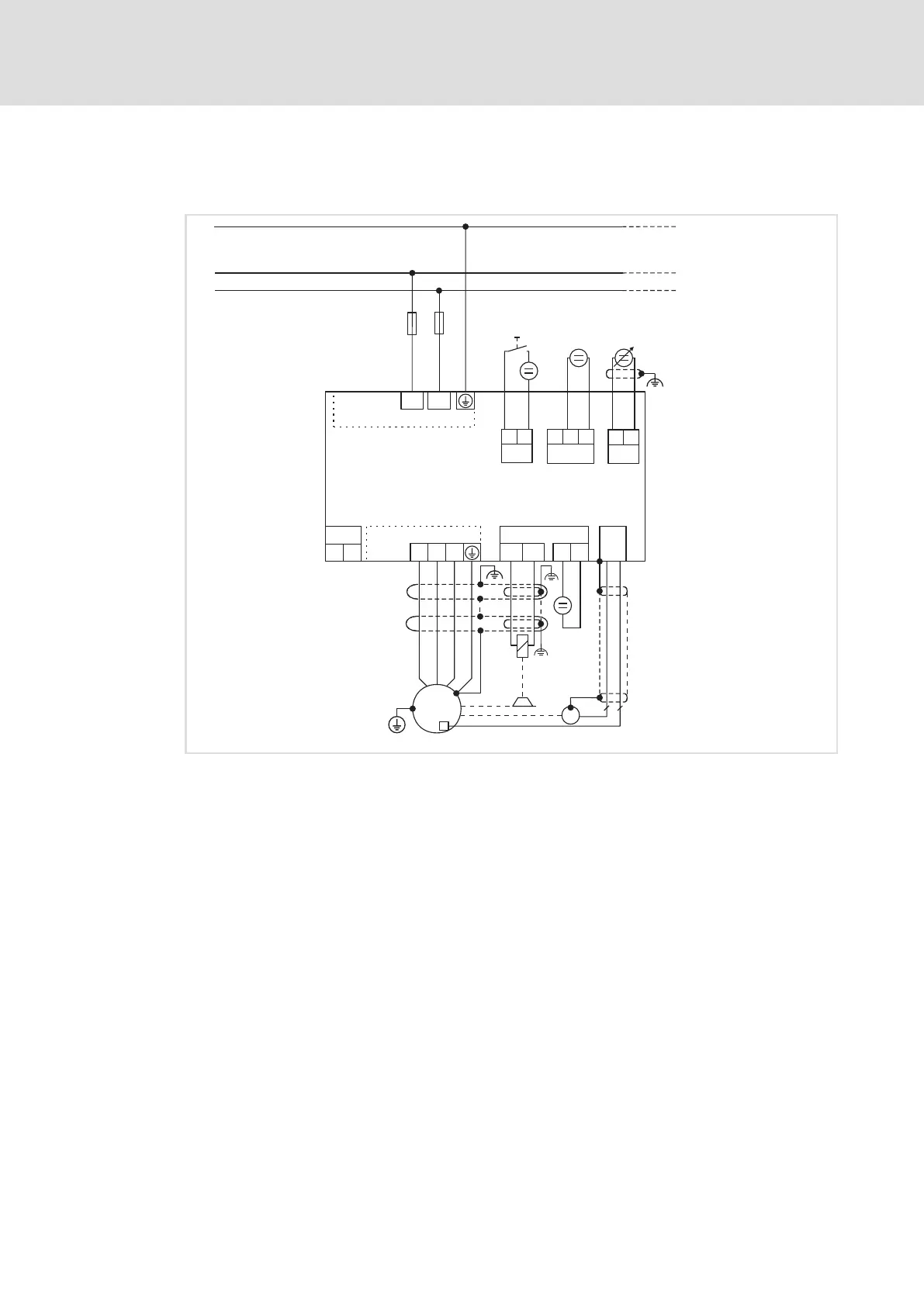

Example circuit
PE
E94AMHExxx4
X100
-UG
+UG
U
VW
X105
BD1 BD2
X107
X7
T1
T2
X106
M
3~
R
Y
J
EYF...
7 2
+
-
+
-
X2
24ESB GE
X3
A1-A1+
RFR
X5
GI
RFR
+
-
+
-
+
-
F1...F2
+
-
SSP94PSP6MD
E94AMHExxxx 9400 Multi Drive servo axis module
F1 ... F2 Fuses, UL−certified types: 170M1761 or 170M1741, max. 315 A
HF−shield termination through large−surface connection to functional earth
EYF... System cable for resolver feedback
RFR Controller enable
R Resolver
Y Motor holding brake (connected to optional motor brake control)
Speed setpoint selection via analog input 1 (−10 ... 0 ... +10 V)
Voltage source for the motor holding brake
24 V voltage source for the digital inputs according to IEC 61131−2
24 V voltage source for the control electronics
