Filters RFI filters for power supply modules
8.10.9 RFI filters for power supply modules E94AZRPxxxx (82 ... 200 A)
Assignment of filters to standard devices
RFI filter DC power supply module
Type Device size Type Device size
E94AZRP0824 4 E94APNE1004 4
E94AZRP2004 5 E94APNE2454 5
E94AZRP0824 4 E70ACPSx0604x 2

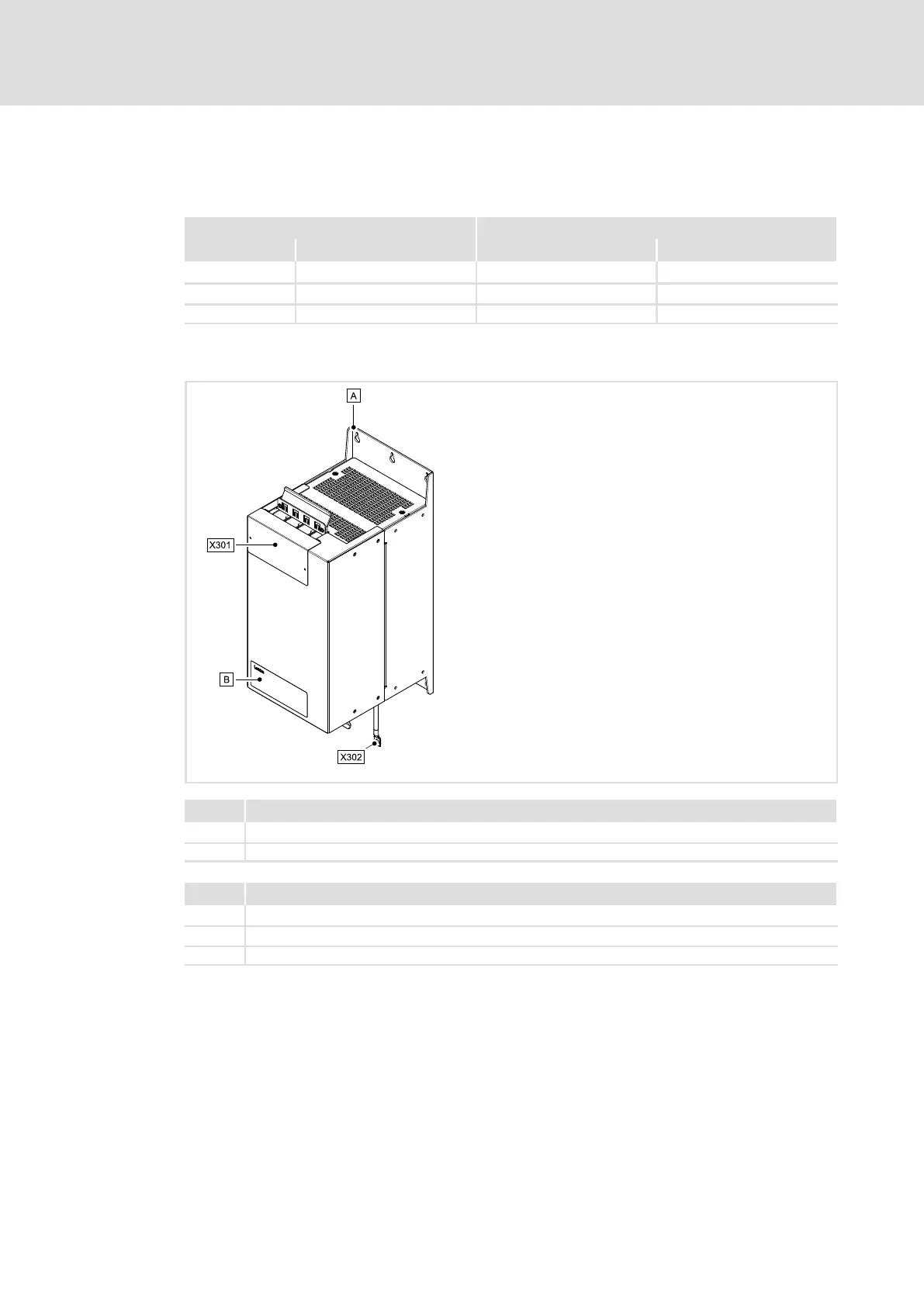

Elements on the filter
SSP94FF201
Pos. Description
RFI filter E94AZRPxxxx
Mounting Instructions
Pos. Description
X301 Mains connection for L1 ... L3 and PE
X302 Connection cables to DC power supply module L1’ ... L3’ and PE
Nameplate
