Filters RFI filters for single−axis controllers
8.10.7 RFI filters for single−axis controllers E94AZRSxxxx (180 ... 415 A)
Assignment of filters to standard devices
RFI filter Single−axis controller
Type (Lenze) Type (see nameplate) Type Device size
E94AZRS1804 3F480−180.290EM E94BSHE1454 81
E94AZRS1804 3F480−180.290EM E94BSHE1724 82
E94AZRS3004 3F480−300.290EM E94BSHE2024 82
E94AZRS3004 3F480−300.290EM E94BSHE2454 82
E94AZRS3004 3F480−300.290EM E94BSHE2924 83
E94AZRS4154 3F480−415.290EM E94BSHE3664 91
E94AZRS4154 3F480−415.290EM E94BSHE4604 91

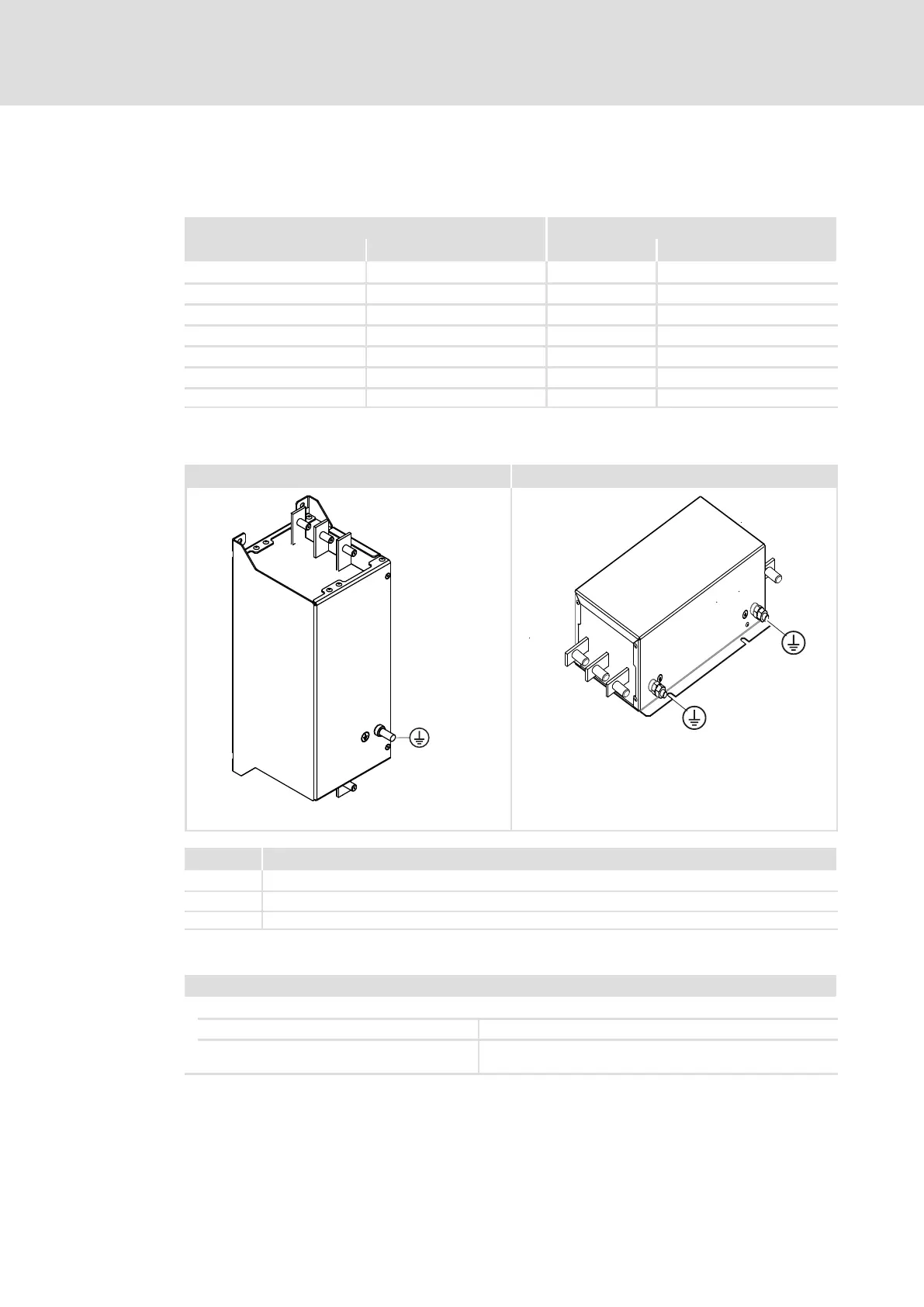

Elements on the filter
E94AZRS1804 E94AZRS3004, E94AZRS4154
L1, L2, L3
L1', L2', L3'
L1, L2, L3
L1', L2', L3'
SSP94GG8xNF
Pos. Description
 PE conductor connection
L1, L2, L3 Mains terminals
L1’, L2’, L3’ Device terminals
General data
Mains data
Mains types
With grounded neutral (TT/TN systems)
Operation permitted without restrictions
Other mains types Observe instructions for special measures in the
documentation for the basic device!
