Accessories (overview)
General accessories
Shield mounting
8
617
EDS94SPP101 EN 10.2
8.11 General accessories
For information about further accessories, please see the "Servo Drives 9400" catalogue.
8.11.1 Shield mounting
Shield mounting kits facilitate the conductive connection of cable shields with a surface as
large as possible. Good shield connections are an important part of wiring according to
EMC guidelines. The shield connections on the devices are designed for different
installations. If a recommended shield mounting cannot be implemented, e.g. because of
thick cables, you can always choose an alternative. The alternative also ensures a good
shield connection.
Always implement a strain relief in addition to the shield mounting, since strain relief is not
possible with a shield mounting.

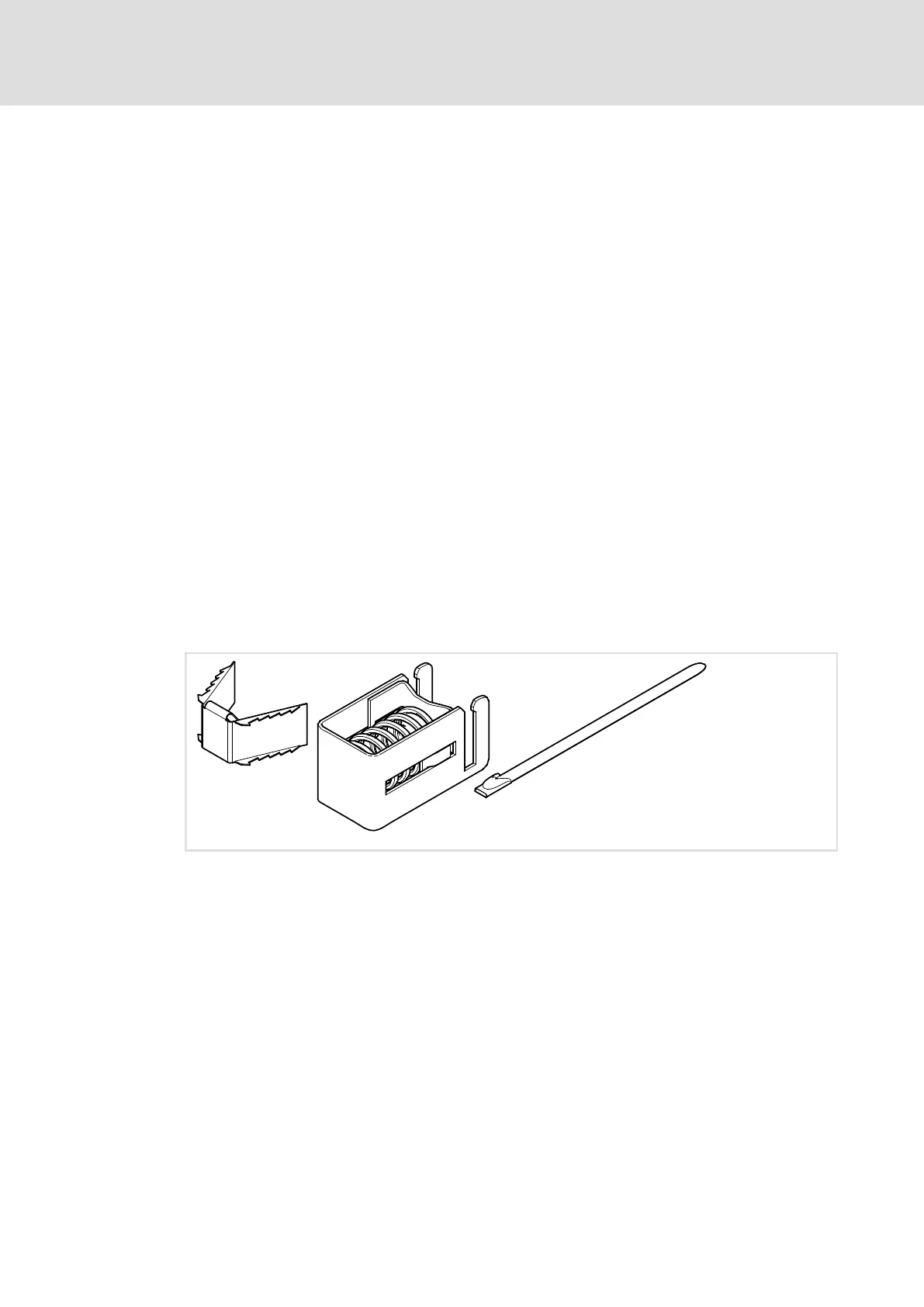

Possible installations of the shield connection:
ƒ EMC clip (fixing clip)
– preferred for control cables or thin motor cables
ƒ EMC wire clamp
– preferred for motor cables, device−dependent sizes
ƒ Cable tie, metallic
– preferred for thick motor cables or several cables
E94AZJS090
