Accessories (overview)
Filters
RFI filters for power supply modules E94AZRPxxxx (8 ... 29 A)
8
584
EDS94SPP101 EN 10.2
8.10.8 RFI filters for power supply modules E94AZRPxxxx (8 ... 29 A)
Assignment of filters to standard devices
RFI filter DC power supply module
Type Device size Type Device size
E94AZRP0084 1 E94APNE0104 1
E94AZRP0294 1 E94APNE0364 3
E94AZRP0294 1 E70ACPSx0304x 1

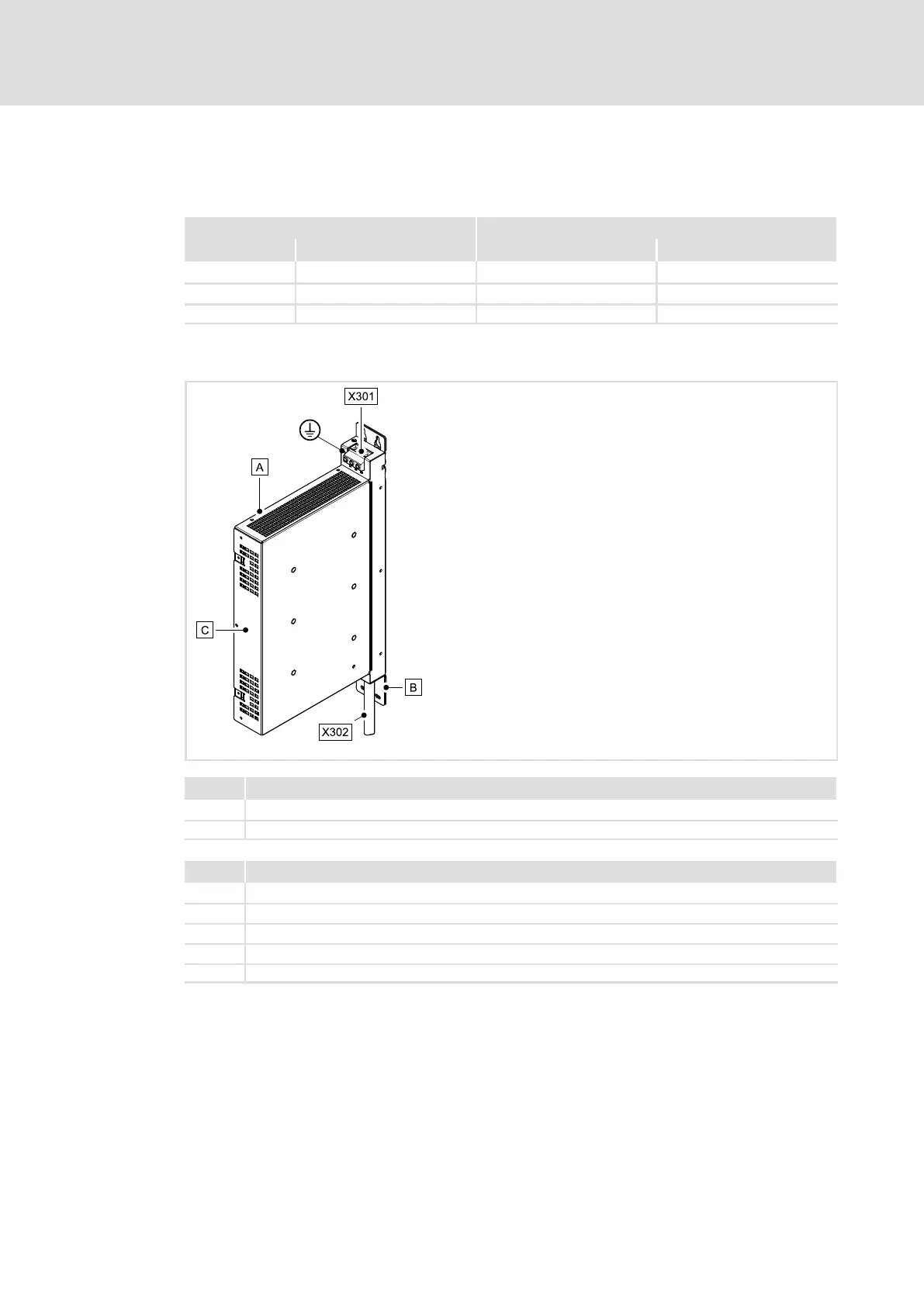

Elements on the filter
SSP94FF001
Pos. Description
RFI filter E94AZRPxxxx
Mounting Instructions
Pos. Description
Connection of PE conductor
X301 Mains terminal L1 ... L3
X302 Connection cable to DC power supply module, four−core
Mounting aid for installation backplane
Nameplate
