DC−bus operation
DC−bus variants
Supply from controllers
7

340
EDS94SPP101 EN 10.2

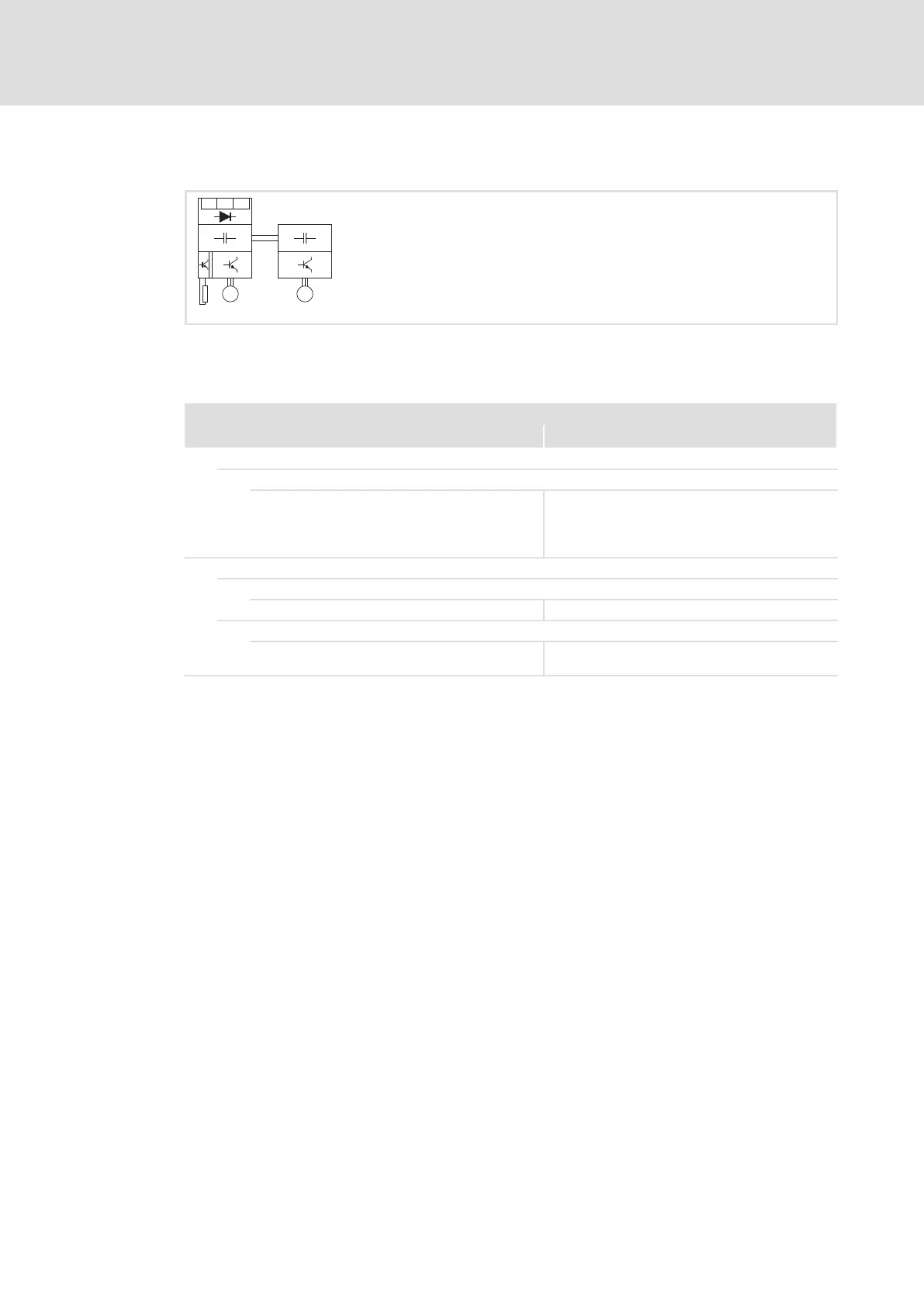

7.3.2 Supply from controllers
L2L1
L3
MM
A single−axis controller with direct AC mains connection supplies energy into the DC bus
of other controllers. The single−axis controller is equipped with an integrated brake
chopper to which you can connect a brake resistor.
Possible combinations
Components to be used Components not to be used
For supply
Single−axis controllers
E94ASxE0024 ... E94ASxE0594
(2 ... 59 A or device sizes 1 ... 6)
E94ASxE0864 ... E94BSxE4604
(86 ... 460 A or device size 7 ... 91)
 Possible to a certain degree when considering
Application Reports.
As DC−bus component
Multi−axis controllers
E94AMxExxx4 (2 ... 59 A) −
Single−axis controllers
E94ASxE0024 ... E94ASxE0594
(2 ... 59 A or device sizes 1 ... 6)
E94ASxE0864 ... E94BSxE4604
(86 ... 460 A or device size 7 ... 91)
