DC−bus operation
DC−bus variants
Supply from a supply module
7
339
EDS94SPP101 EN 10.2
7.3 DC−bus variants
7.3.1 Supply from a supply module
L2L1
L3
MMM

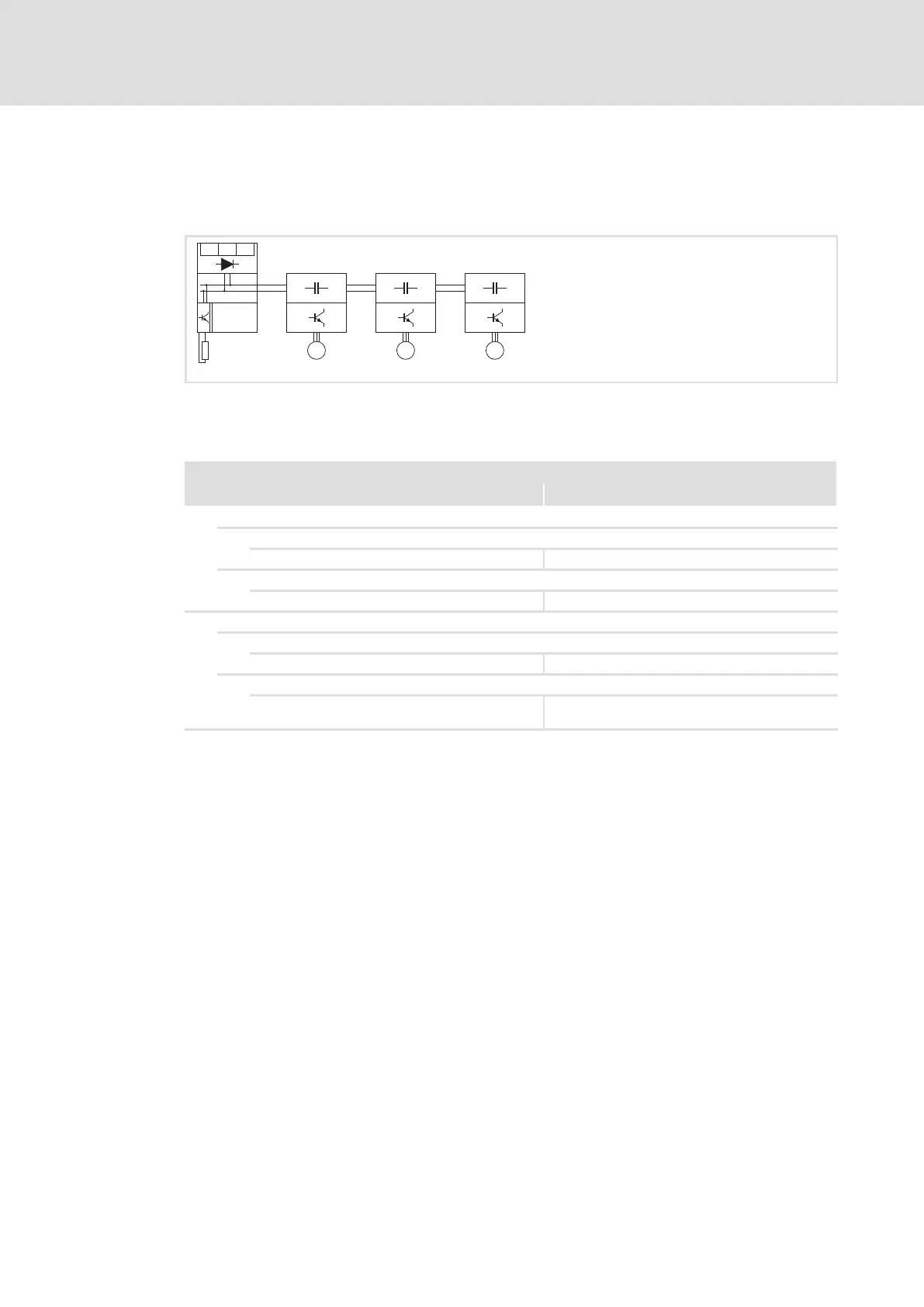

A DC supply module with direct AC mains connection supplies energy into the DC bus of
several controllers. The DC supply module is equipped with an integrated brake chopper
to which you can connect a brake resistor.
Possible combinations
Components to be used Components not to be used
For supply
Power supply modules
E94APNExxx4 (10 ... 245 A) −
Regenerative power supply modules
E94ARNE0xx4 + E94AZMR0xx4xDB (13 ... 24 A) −
As DC−bus component
Multi−axis controllers
E94AMxExxx4 (2 ... 59 A) −
Single−axis controllers
E94ASxE0024 ... E94ASxE0594
(2 ... 59 A or device sizes 1 ... 6)
E94ASxE0864 ... E94BSxE4604
(86 ... 460 A or device size 7 ... 91)
